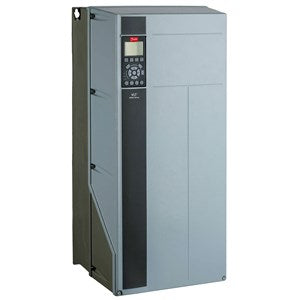

Danfoss Frequency Converter Danfoss FC-302P75KT5P55H1BGXXXXSXXXXAXBXCXXXXDX
Danfoss Frequency Converter Danfoss FC-302P75KT5P55H1BGXXXXSXXXXAXBXCXXXXDX
Regular price
R 192,157.60 ZAR
Regular price
R 240,197.00 ZAR
Sale price
R 192,157.60 ZAR
Unit price
/
per
Specifications
Gross weight | 65.3 kg |
---|---|
Net weight | 65 kg |
Volume | 228.095 l |
EAN | 5702427371132 |
Sales restriction control | |
Matr grp for sales restriction | No grouping |
VLT® AUTOMATIONDRIVE FC 300 SERIES | |
Product View (Switch) | Global (Standard) |
Product Group | VLT® AutomationDrive FC- |
Series | 302 |
Power Rating | (P75K) 75 KW / 100 HP |
Phase | Three phase |
Mains Voltage | 380 - 500 VAC |
Enclosure | IP55 / Type12 Backplate |
RFI Filter | (H1) RFI Class A1/B (C1) |
Brake - Safe Stop | Brake chopper |
LCP | Graphical Loc. Cont. Panel |
Coating PCB | Not coated PCB |
Mains Option | No Mains Option |
Adaptation A | Standard Cable Entries |
Adaptation B | No adaptation |
Software Release | Latest release std. SW. |
Software Language Pack | Standard Language Pack |
A Option | No A Option |
B Option | No B Option |
C0 Option MCO | No C0 option |
C1 Option | No C1 option |
C Option Software | No software option |
D Option | No D option |
Frame Size | C2 |
Typecode Part 1 | FC-302P75KT5P55H1BGX |
Typecode Part 2 | XXXSXXXXAXBXCXXXXDX |
Product Catalog | NO VIEW |
Power 180% (HO) [KW] | NV |
Power 160% (HO) [KW] | NV |
Power 150% (HO) [KW] | 75 |
Power 110% (NO) [KW] | 90 |
Height [mm] | 7700 |
Height w/ Regen/Loadshare [mm] | NV |
Width w/ no C options [mm] | 3700 |
Depth [mm] | 3350 |
Depth with Option A/B [mm] | 3350 |
kVA | 102 |
Power Loss NO [W] | 1474 |
Power Loss NO [W] | 1474 |
Power Loss HO [W] | 1232 |
Power Loss HO [W] | 1232 |
Continuous Current (NO) [A] | 177 |
Intermittent Current (NO) [A] | 195 |
Continuous Current (NO) [A] | 160 |
Intermittent Current (NO) [A] | 176 |
Continuous Current (HO) [A] | 147 |
Intermittent Current (HO) [A] | 220 |
Continuous Current (HO) [A] | 130 |
Intermittent Current (HO) [A] | 195 |
Calculated Gross Weight | 65.3 |
Calculated Net Weight [kg] | 65 |
Material Gross Weight | 65.3 |
Material Net Weight | 65 |
Vendor | Cannot Determine Vendor |
Modelcode01 | FC-302P75KT5P55H1BGX |
Modelcode02 | XXXSXXXXAXBXCXXXXDX |
