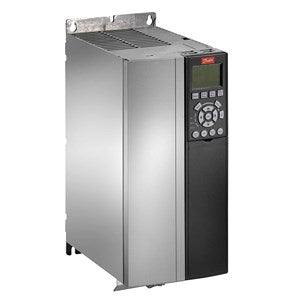

Danfoss Frequency Converter Danfoss FC-302P15KT6E20HXXGXXXXSXXXXAXBXCXXXXD0
Danfoss Frequency Converter Danfoss FC-302P15KT6E20HXXGXXXXSXXXXAXBXCXXXXD0
Regular price
R 55,692.80 ZAR
Regular price
R 69,616.00 ZAR
Sale price
R 55,692.80 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
| Gross weight | 11.55 kg |
|---|---|
| Net weight | 10.58 kg |
| Volume | 57.75 l |
| EAN | 5702427394711 |
| Sales restriction control | |
| Matr grp for sales restriction | No grouping |
| VLT® AUTOMATIONDRIVE FC 300 SERIES | |
| Product View (Switch) | Global (Standard) |
| Product Group | VLT® AutomationDrive FC- |
| Series | 302 |
| Power Rating | (P15K) 15 KW / 20 HP |
| Phase | Three phase |
| Mains Voltage | 525 - 600 VAC |
| Enclosure | (E20) IP20 / Chassis |
| RFI Filter | No RFI Filter |
| Brake - Safe Stop | No brake chopper |
| LCP | Graphical Loc. Cont. Panel |
| Coating PCB | Not coated PCB |
| Mains Option | No Mains Option |
| Adaptation A | Standard Cable Entries |
| Adaptation B | No adaptation |
| Software Release | Latest release std. SW. |
| Software Language Pack | Standard Language Pack |
| A Option | No A Option |
| B Option | No B Option |
| C0 Option MCO | No C0 option |
| C1 Option | No C1 option |
| C Option Software | No software option |
| D Option | MCB-107 24V DC backup |
| Frame Size | B3 |
| Typecode Part 1 | FC-302P15KT6E20HXXGX |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXD0 |
| Product Catalog | NO VIEW |
| Power 160% (HO) [KW] | 15 |
| Power 110% (NO) [KW] | 18.5 |
| Height [mm] | 3990 |
| Width w/ no C options [mm] | 1650 |
| Depth [mm] | 2490 |
| Depth with Option A/B [mm] | 2620 |
| kVA | 21.9 |
| Power Loss NO [W] | 370 |
| Power Loss NO [W] | 370 |
| Power Loss HO [W] | 300 |
| Power Loss HO [W] | 300 |
| Continuous Current (NO) [A] | 28 |
| Intermittent Current (NO) [A] | 30.8 |
| Continuous Current (NO) [A] | 27 |
| Intermittent Current (NO) [A] | 29.7 |
| Continuous Current (HO) [A] | 23 |
| Intermittent Current (HO) [A] | 36.8 |
| Continuous Current (HO) [A] | 22 |
| Intermittent Current (HO) [A] | 35.2 |
| Calculated Gross Weight | 12.3 |
| Calculated Net Weight [kg] | 12 |
| Material Gross Weight | 11.55 |
| Material Net Weight | 10.58 |
| Vendor | Cannot Determine Vendor |
| Modelcode01 | FC-302P15KT6E20HXXGX |
| Modelcode02 | XXXSXXXXAXBXCXXXXD0 |
