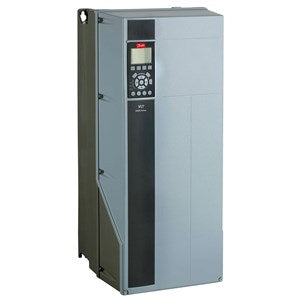

Danfoss Frequency Converter Danfoss FC-302P30KT5E66H2XGCXXXSXXXXAXBXCXXXXDX
Danfoss Frequency Converter Danfoss FC-302P30KT5E66H2XGCXXXSXXXXAXBXCXXXXDX
Regular price
R 94,548.00 ZAR
Regular price
R 118,185.00 ZAR
Sale price
R 94,548.00 ZAR
Unit price
/
per
Specifications
Gross weight | 39.25 kg |
---|---|
Net weight | 38.05 kg |
Volume | 188.19 l |
EAN | 5702427469334 |
Sales restriction control | |
Matr grp for sales restriction | No grouping |
VLT® AUTOMATIONDRIVE FC 300 SERIES | |
Product View (Switch) | Global (Standard) |
Product Group | VLT® AutomationDrive FC- |
Series | 302 |
Power Rating | (P30K) 30 KW / 40 HP |
Phase | Three phase |
Mains Voltage | 380 - 500 VAC |
Enclosure | (E66) IP66 / NEMA 4X |
RFI Filter | RFI Filter |
Brake - Safe Stop | No brake chopper |
LCP | Graphical Loc. Cont. Panel |
Coating PCB | Coated PCB |
Mains Option | No Mains Option |
Adaptation A | Standard Cable Entries |
Adaptation B | No adaptation |
Software Release | Latest release std. SW. |
Software Language Pack | Standard Language Pack |
A Option | No A Option |
B Option | No B Option |
C0 Option MCO | No C0 option |
C1 Option | No C1 option |
C Option Software | No software option |
D Option | No D option |
Frame Size | C1 |
Typecode Part 1 | FC-302P30KT5E66H2XGC |
Typecode Part 2 | XXXSXXXXAXBXCXXXXDX |
Product Catalog | NO VIEW |
Power 180% (HO) [KW] | NV |
Power 160% (HO) [KW] | NV |
Power 150% (HO) [KW] | 30 |
Power 110% (NO) [KW] | 37 |
Height [mm] | 6800 |
Height w/ Regen/Loadshare [mm] | NV |
Width w/ no C options [mm] | 3080 |
Depth [mm] | 3100 |
Depth with Option A/B [mm] | 3100 |
kVA | 42.3 |
Power Loss NO [W] | 698 |
Power Loss NO [W] | 698 |
Power Loss HO [W] | 570 |
Power Loss HO [W] | 570 |
Continuous Current (NO) [A] | 73 |
Intermittent Current (NO) [A] | 80.3 |
Continuous Current (NO) [A] | 65 |
Intermittent Current (NO) [A] | 71.5 |
Continuous Current (HO) [A] | 61 |
Intermittent Current (HO) [A] | 91.5 |
Continuous Current (HO) [A] | 52 |
Intermittent Current (HO) [A] | 78 |
Calculated Gross Weight | 40.3 |
Calculated Net Weight [kg] | 40 |
Material Gross Weight | 39.25 |
Material Net Weight | 38.05 |
Vendor | Cannot Determine Vendor |
Modelcode01 | FC-302P30KT5E66H2XGC |
Modelcode02 | XXXSXXXXAXBXCXXXXDX |
