Danfoss

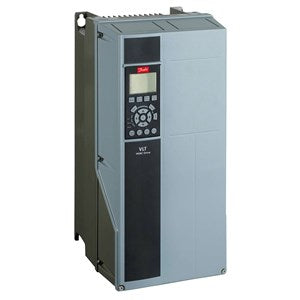

Danfoss Frequency Converter Danfoss FC-302P560T5E21H2XGCXXXSXXXXAXBXCXXXXDX
Danfoss Frequency Converter Danfoss FC-302P560T5E21H2XGCXXXSXXXXAXBXCXXXXDX
Regular price
R 1,105,866.40 ZAR
Regular price
R 1,382,333.00 ZAR
Sale price
R 1,105,866.40 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
| Gross weight | 991 kg |
|---|---|
| Net weight | 790 kg |
| Volume | 0 l |
| EAN | 5702427480544 |
| Sales restriction control | |
| Matr grp for sales restriction | No grouping |
| VLT® AUTOMATIONDRIVE FC 300 SERIES | |
| Product View (Switch) | Global (Standard) |
| Product Group | VLT® AutomationDrive FC- |
| Series | 302 |
| Power Rating | (P560) 560 KW / 750 HP |
| Phase | Three phase |
| Mains Voltage | 380 - 500 VAC |
| Enclosure | IP21 / Type 1 |
| RFI Filter | RFI Filter |
| Brake - Safe Stop | No brake chopper |
| LCP | Graphical Loc. Cont. Panel |
| Coating PCB | Coated PCB |
| Mains Option | No Mains Option |
| Adaptation A | Standard Cable Entries |
| Adaptation B | No adaptation |
| Software Release | Latest release std. SW. |
| Software Language Pack | Standard Language Pack |
| A Option | No A Option |
| B Option | No B Option |
| C0 Option MCO | No C0 option |
| C1 Option | No C1 option |
| C Option Software | No software option |
| D Option | No D option |
| Typecode Part 1 | FC-302P560T5E21H2XGC |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX |
| Product Catalog | NO VIEW |
| Power 150% (HO) [KW] | 560 |
| Power 110% (NO) [KW] | 630 |
| kVA | 686 |
| Power Loss NO [W] | 12512 |
| Power Loss NO [W] | 11595 |
| Power Loss HO [W] | 10649 |
| Power Loss HO [W] | 9414 |
| Continuous Current (NO) [A] | 1120 |
| Intermittent Current (NO) [A] | 1232 |
| Continuous Current (NO) [A] | 1050 |
| Intermittent Current (NO) [A] | 1155 |
| Continuous Current (HO) [A] | 990 |
| Intermittent Current (HO) [A] | 1485 |
| Continuous Current (HO) [A] | 890 |
| Intermittent Current (HO) [A] | 1335 |
| Material Gross Weight | 991 |
| Material Net Weight | 790 |
| Vendor | Cannot Determine Vendor |
| Modelcode01 | FC-302P560T5E21H2XGC |
| Modelcode02 | XXXSXXXXAXBXCXXXXDX |
