Danfoss

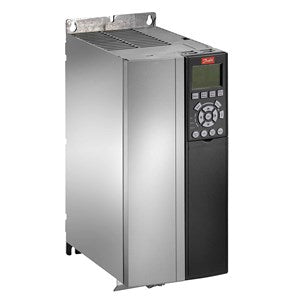

Danfoss Frequency Converter Danfoss FC-302P11KT5E20H2XGXXXXSXXXXA0BXCXXXXDX
Danfoss Frequency Converter Danfoss FC-302P11KT5E20H2XGXXXXSXXXXA0BXCXXXXDX
Regular price
R 40,724.80 ZAR
Regular price
R 50,906.00 ZAR
Sale price
R 40,724.80 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
| Gross weight | 11.49 kg |
|---|---|
| Net weight | 10.52 kg |
| Volume | 42.336 l |
| EAN | 5702427488762 |
| Sales restriction control | |
| Matr grp for sales restriction | No grouping |
| VLT® AUTOMATIONDRIVE FC 300 SERIES | |
| Product View (Switch) | Global (Standard) |
| Product Group | VLT® AutomationDrive FC- |
| Series | 302 |
| Power Rating | (P11K) 11 KW / 15 HP |
| Phase | Three phase |
| Mains Voltage | 380 - 500 VAC |
| Enclosure | (E20) IP20 / Chassis |
| RFI Filter | RFI Filter |
| Brake - Safe Stop | No brake chopper |
| LCP | Graphical Loc. Cont. Panel |
| Coating PCB | Not coated PCB |
| Mains Option | No Mains Option |
| Adaptation A | Standard Cable Entries |
| Adaptation B | No adaptation |
| Software Release | Latest release std. SW. |
| Software Language Pack | Standard Language Pack |
| A Option | PROFIBUS DP MCA 101 |
| B Option | No B Option |
| C0 Option MCO | No C0 option |
| C1 Option | No C1 option |
| C Option Software | No software option |
| D Option | No D option |
| Frame Size | B3 |
| Typecode Part 1 | FC-302P11KT5E20H2XGX |
| Typecode Part 2 | XXXSXXXXA0BXCXXXXDX |
| Product Catalog | NO VIEW |
| Power 180% (HO) [KW] | NV |
| Power 160% (HO) [KW] | 11 |
| Power 150% (HO) [KW] | NV |
| Power 110% (NO) [KW] | 15 |
| Height [mm] | 3990 |
| Height w/ Regen/Loadshare [mm] | NV |
| Width w/ no C options [mm] | 1650 |
| Depth [mm] | 2490 |
| Depth with Option A/B [mm] | 2620 |
| kVA | 16.6 |
| Power Loss NO [W] | 392 |
| Power Loss NO [W] | 392 |
| Power Loss HO [W] | 291 |
| Power Loss HO [W] | 291 |
| Continuous Current (NO) [A] | 32 |
| Intermittent Current (NO) [A] | 35.2 |
| Continuous Current (NO) [A] | 27 |
| Intermittent Current (NO) [A] | 29.7 |
| Continuous Current (HO) [A] | 24 |
| Intermittent Current (HO) [A] | 38.4 |
| Continuous Current (HO) [A] | 21 |
| Intermittent Current (HO) [A] | 33.6 |
| Calculated Gross Weight | 12 |
| Calculated Net Weight [kg] | 11.7 |
| Material Gross Weight | 11.49 |
| Material Net Weight | 10.52 |
| Vendor | Cannot Determine Vendor |
| Modelcode01 | FC-302P11KT5E20H2XGX |
| Modelcode02 | XXXSXXXXA0BXCXXXXDX |
