Danfoss

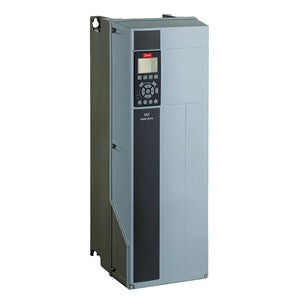

Danfoss Frequency Converter Danfoss FC-302P18KT6E21HXXXXXXXSXXXXAXBXCXXXXDX
Danfoss Frequency Converter Danfoss FC-302P18KT6E21HXXXXXXXSXXXXAXBXCXXXXDX
Regular price
R 66,768.00 ZAR
Regular price
R 83,460.00 ZAR
Sale price
R 66,768.00 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
| Gross weight | 27.1 kg |
|---|---|
| Net weight | 26.8 kg |
| Volume | 144.67 l |
| EAN | 5702427609617 |
| Sales restriction control | |
| Matr grp for sales restriction | No grouping |
| VLT® AUTOMATIONDRIVE FC 300 SERIES | |
| Product View (Switch) | Global (Standard) |
| Product Group | VLT® AutomationDrive FC- |
| Series | 302 |
| Power Rating | (P18K) 18.5 KW / 25 HP |
| Phase | Three phase |
| Mains Voltage | 525 - 600 VAC |
| Enclosure | IP21 / Type 1 |
| RFI Filter | No RFI Filter |
| Brake - Safe Stop | No brake chopper |
| LCP | No Loc. Cont. Panel |
| Coating PCB | Not coated PCB |
| Mains Option | No Mains Option |
| Adaptation A | Standard Cable Entries |
| Adaptation B | No adaptation |
| Software Release | Latest release std. SW. |
| Software Language Pack | Standard Language Pack |
| A Option | No A Option |
| B Option | No B Option |
| C0 Option MCO | No C0 option |
| C1 Option | No C1 option |
| C Option Software | No software option |
| D Option | No D option |
| Frame Size | B2 |
| Typecode Part 1 | FC-302P18KT6E21HXXXX |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX |
| Product Catalog | NO VIEW |
| Power 160% (HO) [KW] | 18.5 |
| Power 110% (NO) [KW] | 22 |
| Height [mm] | 6500 |
| Width w/ no C options [mm] | 2420 |
| Depth [mm] | 2600 |
| Depth with Option A/B [mm] | 2600 |
| kVA | 26.9 |
| Power Loss NO [W] | 440 |
| Power Loss NO [W] | 440 |
| Power Loss HO [W] | 370 |
| Power Loss HO [W] | 370 |
| Continuous Current (NO) [A] | 36 |
| Intermittent Current (NO) [A] | 39.6 |
| Continuous Current (NO) [A] | 34 |
| Intermittent Current (NO) [A] | 37.4 |
| Continuous Current (HO) [A] | 28 |
| Intermittent Current (HO) [A] | 44.8 |
| Continuous Current (HO) [A] | 27 |
| Intermittent Current (HO) [A] | 43.2 |
| Calculated Gross Weight | 28.3 |
| Calculated Net Weight [kg] | 28 |
| Material Gross Weight | 27.1 |
| Material Net Weight | 26.8 |
| Vendor | Cannot Determine Vendor |
| Modelcode01 | FC-302P18KT6E21HXXXX |
| Modelcode02 | XXXSXXXXAXBXCXXXXDX |
