Danfoss

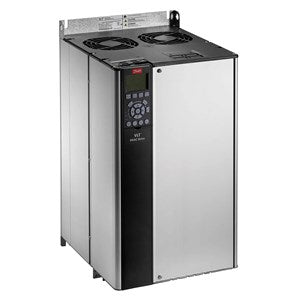

Danfoss Frequency Converter Danfoss FC-302P37KT6E20HXXXXXXXSXXXXAXBXCXXXXDX
Danfoss Frequency Converter Danfoss FC-302P37KT6E20HXXXXXXXSXXXXAXBXCXXXXDX
Regular price
R 108,916.80 ZAR
Regular price
R 136,146.00 ZAR
Sale price
R 108,916.80 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
| Gross weight | 34.15 kg |
|---|---|
| Net weight | 32.75 kg |
| Volume | 188.19 l |
| EAN | 5702427612433 |
| Sales restriction control | |
| Matr grp for sales restriction | No grouping |
| VLT® AUTOMATIONDRIVE FC 300 SERIES | |
| Product View (Switch) | Global (Standard) |
| Product Group | VLT® AutomationDrive FC- |
| Series | 302 |
| Power Rating | (P37K) 37 KW / 50 HP |
| Phase | Three phase |
| Mains Voltage | 525 - 600 VAC |
| Enclosure | (E20) IP20 / Chassis |
| RFI Filter | No RFI Filter |
| Brake - Safe Stop | No brake chopper |
| LCP | No Loc. Cont. Panel |
| Coating PCB | Not coated PCB |
| Mains Option | No Mains Option |
| Adaptation A | Standard Cable Entries |
| Adaptation B | No adaptation |
| Software Release | Latest release std. SW. |
| Software Language Pack | Standard Language Pack |
| A Option | No A Option |
| B Option | No B Option |
| C0 Option MCO | No C0 option |
| C1 Option | No C1 option |
| C Option Software | No software option |
| D Option | No D option |
| Frame Size | C3 |
| Typecode Part 1 | FC-302P37KT6E20HXXXX |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX |
| Product Catalog | NO VIEW |
| Power 150% (HO) [KW] | 37 |
| Power 110% (NO) [KW] | 45 |
| Height [mm] | 5500 |
| Width w/ no C options [mm] | 3080 |
| Depth [mm] | 3330 |
| Depth with Option A/B [mm] | 3330 |
| kVA | 51.8 |
| Power Loss NO [W] | 900 |
| Power Loss NO [W] | 900 |
| Power Loss HO [W] | 740 |
| Power Loss HO [W] | 740 |
| Continuous Current (NO) [A] | 65 |
| Intermittent Current (NO) [A] | 71.5 |
| Continuous Current (NO) [A] | 62 |
| Intermittent Current (NO) [A] | 68.2 |
| Continuous Current (HO) [A] | 54 |
| Intermittent Current (HO) [A] | 81 |
| Continuous Current (HO) [A] | 52 |
| Intermittent Current (HO) [A] | 78 |
| Calculated Gross Weight | 36.3 |
| Calculated Net Weight [kg] | 36 |
| Material Gross Weight | 34.15 |
| Material Net Weight | 32.75 |
| Vendor | Cannot Determine Vendor |
| Modelcode01 | FC-302P37KT6E20HXXXX |
| Modelcode02 | XXXSXXXXAXBXCXXXXDX |
