Danfoss
Regular price
R 28,782.81 ZAR
Regular price
R 41,118.29 ZAR
Sale price
R 28,782.81 ZAR
Unit price
/
per
SKU:
Part Number:131G4350
Couldn't load pickup availability
Specifications
|
|---|
| Gross weight |
6.1 kg |
| Net weight |
4.9 kg |
| Volume |
16.53 l |
| EAN |
5702427650077 |
| Sales restriction control |
|---|
| Matr grp for sales restriction |
No grouping |

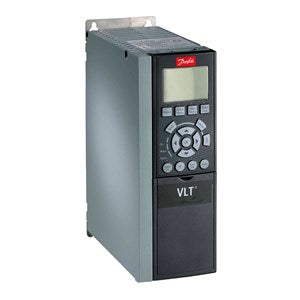

| VLT® AUTOMATIONDRIVE FC 300 SERIES |
|---|
| Product View (Switch) |
Global (Standard) |
| Product Group |
VLT® AutomationDrive FC- |
| Series |
302 |
| Power Rating |
(P4K0) 4.0 KW / 5.5 HP |
| Phase |
Three phase |
| Mains Voltage |
380 - 500 VAC |
| Enclosure |
(E20) IP20 / Chassis |
| RFI Filter |
RFI Filter |
| Brake - Safe Stop |
No brake chopper |
| LCP |
Graphical Loc. Cont. Panel |
| Coating PCB |
Not coated PCB |
| Mains Option |
No Mains Option |
| Adaptation A |
Standard Cable Entries |
| Adaptation B |
No adaptation |
| Software Release |
Latest release std. SW. |
| Software Language Pack |
Standard Language Pack |
| A Option |
No A Option |
| B Option |
No B Option |
| C0 Option MCO |
MCO-305 ( SyncPos) |
| C1 Option |
No C1 option |
| C Option Software |
Synchronizing control |
| D Option |
No D option |
| Frame Size |
A2 |
| Typecode Part 1 |
FC-302P4K0T5E20H2XGX |
| Typecode Part 2 |
XXXSXXXXAXBXC4X10DX |
| Product Catalog |
NO VIEW |
| Power 160% (HO) [KW] |
4 |
| Height [mm] |
2680 |
| Width w/ no C options [mm] |
900 |
| Depth [mm] |
2050 |
| Depth with Option A/B [mm] |
2200 |
| kVA |
6.93 |
| Power Loss HO [W] |
124 |
| Power Loss HO [W] |
124 |
| Continuous Current (HO) [A] |
10 |
| Intermittent Current (HO) [A] |
16 |
| Continuous Current (HO) [A] |
8.2 |
| Intermittent Current (HO) [A] |
13.1 |
| Calculated Gross Weight [kg] |
5.2 |
| Calculated Net Weight [kg] |
4.9 |
| Material Gross Weight |
6.1 |
| Material Net Weight |
4.9 |
| Vendor |
Cannot Determine Vendor |
| Modelcode01 |
FC-302P4K0T5E20H2XGX |
| Modelcode02 |
XXXSXXXXAXBXC4X10DX |
