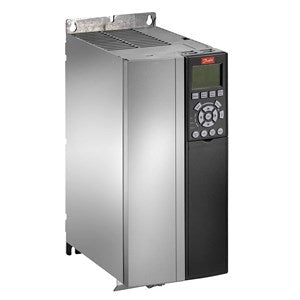

Danfoss
Regular price
R 44,180.19 ZAR
Regular price
R 63,114.55 ZAR
Sale price
R 44,180.19 ZAR
Unit price
/
per
SKU:
Part Number:131G6898
Couldn't load pickup availability
Specifications
|
|---|
| Gross weight |
12.3 kg |
| Net weight |
11.4 kg |
| Volume |
42.336 l |
| EAN |
5702427676022 |
| Sales restriction control |
|---|
| Matr grp for sales restriction |
No grouping |
| VLT® AUTOMATIONDRIVE FC 300 SERIES |
|---|
| Product View (Switch) |
Global (Standard) |
| Product Group |
VLT® AutomationDrive FC- |
| Series |
302 |
| Power Rating |
(P11K) 11 KW / 15 HP |
| Phase |
Three phase |
| Mains Voltage |
380 - 500 VAC |
| Enclosure |
(E20) IP20 / Chassis |
| RFI Filter |
(H1) RFI Class A1/B (C1) |
| Brake - Safe Stop |
Brake chopper |
| LCP |
Graphical Loc. Cont. Panel |
| Coating PCB |
Coated PCB |
| Mains Option |
No Mains Option |
| Adaptation A |
Standard Cable Entries |
| Adaptation B |
No adaptation |
| Software Release |
Latest release std. SW. |
| Software Language Pack |
Standard Language Pack |
| A Option |
No A Option |
| B Option |
MCB-101 General purp. I/O |
| C0 Option MCO |
No C0 option |
| C1 Option |
No C1 option |
| C Option Software |
No software option |
| D Option |
No D option |
| Frame Size |
B3 |
| Typecode Part 1 |
FC-302P11KT5E20H1BGC |
| Typecode Part 2 |
XXXSXXXXAXBKCXXXXDX |
| Product Catalog |
NO VIEW |
| Power 160% (HO) [KW] |
11 |
| Power 110% (NO) [KW] |
15 |
| Height [mm] |
3990 |
| Width w/ no C options [mm] |
1650 |
| Depth [mm] |
2490 |
| Depth with Option A/B [mm] |
2620 |
| kVA |
16.6 |
| Power Loss NO [W] |
392 |
| Power Loss NO [W] |
392 |
| Power Loss HO [W] |
291 |
| Power Loss HO [W] |
291 |
| Continuous Current (NO) [A] |
32 |
| Intermittent Current (NO) [A] |
35.2 |
| Continuous Current (NO) [A] |
27 |
| Intermittent Current (NO) [A] |
29.7 |
| Continuous Current (HO) [A] |
24 |
| Intermittent Current (HO) [A] |
38.4 |
| Continuous Current (HO) [A] |
21 |
| Intermittent Current (HO) [A] |
33.6 |
| Calculated Gross Weight [kg] |
12 |
| Calculated Net Weight [kg] |
11.7 |
| Material Gross Weight |
12.3 |
| Material Net Weight |
11.4 |
| Vendor |
Cannot Determine Vendor |
| Modelcode01 |
FC-302P11KT5E20H1BGC |
| Modelcode02 |
XXXSXXXXAXBKCXXXXDX |
