ABB

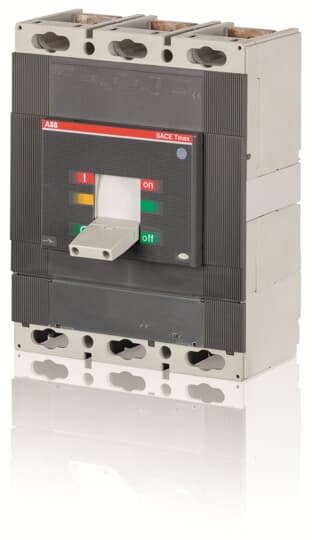

ABB Moulded Case Circuit Breaker T6D 630 3p F F 1SDA060343R1
ABB Moulded Case Circuit Breaker T6D 630 3p F F 1SDA060343R1
Regular price
R 10,158.25 ZAR
Regular price
R 18,469.54 ZAR
Sale price
R 10,158.25 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
SWITCH-DISCONNECTOR TMAX T6D 630 FIXED THREE-POLE WITH FRONT TERMINALS
Specifications
| Ordering | |
|---|---|
| EAN: | 8015644628116 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362090 |
| Dimensions | |
| Product Net Width: | 210 mm |
| Product Net Height: | 268 mm |
| Product Net Depth / Length: | 103.5 mm |
| Product Net Weight: | 8.563 kg |
| Container Information | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 305 mm |
| Package Level 1 Height: | 285 mm |
| Package Level 1 Depth / Length: | 370 mm |
| Package Level 1 Gross Weight: | 11 kg |
| Package Level 1 EAN: | 8015644628116 |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information | |
| Mechanical Durability: | 20000 cycle120 cycles per hour |
| Number of Poles: | 3 |
| Power Loss: | at Rated Operating Conditions per Pole 30 W |
| Product Main Type: | SACE Tmax T |
| Product Name: | Moulded Case Circuit Breaker |
| Product Type: | SD |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Insulation Voltage (Ui): | 1000 V |
| Rated Operational Voltage: | 690 V AC750 V DC |
| Rated Short-time Withstand Current Low Voltage (Icw): | for 1 s 15 A |
| Rated Uninterrupted Current (Iu): | 630 A |
| Short-Circuit Performance Level: | D |
| Standards: | IEC 60947 |
| Sub-type: | T6 |
| Suitable For: | T6 |
| Suitable for Product Class: | Moulded Case Circuit Breakers |
| Terminal Connection Type: | Fixed Circuit-BreakersFront |
| Test Voltage Max (Utest): | 3500 V |
| Version: | F |
| Certificates and Declarations (Document Number) | |
| Data Sheet, Technical Information: | 1SDC210015D0201 |
| Declaration of Conformity - CE: | 9AKK106713A5538 |
| Environmental Information: | 9AKK10103A1058 |
| Instructions and Manuals: | 1SDH000511R0001 |
| REACH Declaration: | 9AKK108466A1425 |
| RoHS Information: | 9AKK108466A1424 |
| Classifications | |
| ETIM 4: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 5: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| Object Classification Code: | Q |
| UNSPSC: | 39121100 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
