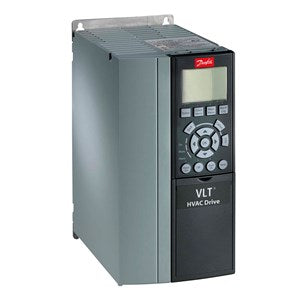

Danfoss
Regular price
R 27,435.69 ZAR
Regular price
R 39,193.84 ZAR
Sale price
R 27,435.69 ZAR
Unit price
/
per
SKU:
Part Number:131H5601
Couldn't load pickup availability
Specifications
|
|---|
| Gross weight |
7.05 kg |
| Net weight |
6.46 kg |
| Volume |
29.754 l |
| EAN |
5702427559790 |
| Sales restriction control |
|---|
| Matr grp for sales restriction |
No grouping |
| VLT® AUTOMATIONDRIVE FC 300 SERIES |
|---|
| Product View (Switch) |
Global (Standard) |
| Product Group |
VLT® AutomationDrive FC- |
| Series |
302 |
| Power Rating |
(P5K5) 5.5 KW / 7.5 HP |
| Phase |
Three phase |
| Mains Voltage |
525 - 600 VAC |
| Enclosure |
(E20) IP20 / Chassis |
| RFI Filter |
No RFI Filter |
| Brake - Safe Stop |
No brake chopper |
| LCP |
Graphical Loc. Cont. Panel |
| Coating PCB |
Not coated PCB |
| Mains Option |
No Mains Option |
| Adaptation A |
Standard Cable Entries |
| Adaptation B |
No adaptation |
| Software Release |
Latest release std. SW. |
| Software Language Pack |
Standard Language Pack |
| A Option |
PROFIBUS DP MCA 101 |
| B Option |
No B Option |
| C0 Option MCO |
No C0 option |
| C1 Option |
No C1 option |
| C Option Software |
No software option |
| D Option |
MCB-107 24V DC backup |
| Frame Size |
A3 |
| Typecode Part 1 |
FC-302P5K5T6E20HXXGX |
| Typecode Part 2 |
XXXSXXXXA0BXCXXXXD0 |
| Product Catalog |
NO VIEW |
| Power 180% (HO) [KW] |
NV |
| Power 160% (HO) [KW] |
5.5 |
| Power 150% (HO) [KW] |
NV |
| Power 110% (NO) [KW] |
NV |
| Height [mm] |
2680 |
| Height w/ Regen/Loadshare [mm] |
NV |
| Width w/ no C options [mm] |
1300 |
| Depth [mm] |
2050 |
| Depth with Option A/B [mm] |
2200 |
| kVA |
8.96 |
| Power Loss NO [W] |
NV |
| Power Loss NO [W] |
NV |
| Power Loss HO [W] |
195 |
| Power Loss HO [W] |
195 |
| Continuous Current (NO) [A] |
NV |
| Intermittent Current (NO) [A] |
NV |
| Continuous Current (NO) [A] |
NV |
| Intermittent Current (NO) [A] |
NV |
| Continuous Current (HO) [A] |
9.5 |
| Intermittent Current (HO) [A] |
15.2 |
| Continuous Current (HO) [A] |
9 |
| Intermittent Current (HO) [A] |
14.4 |
| Calculated Gross Weight [kg] |
6.9 |
| Calculated Net Weight [kg] |
6.6 |
| Material Gross Weight |
7.05 |
| Material Net Weight |
6.46 |
| Vendor |
Cannot Determine Vendor |
| Modelcode01 |
FC-302P5K5T6E20HXXGX |
| Modelcode02 |
XXXSXXXXA0BXCXXXXD0 |
