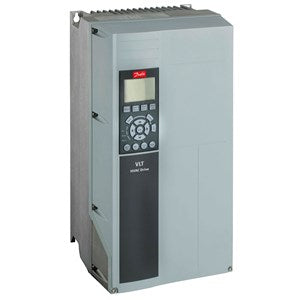

Danfoss Frequency Converter Danfoss 131X3460

Danfoss Frequency Converter Danfoss 131X3460

R 11,769.45 ZAR
R 29,958.00 ZAR R 11,769.45 ZAR
Sale Sold out
Shipping calculated at checkout.

Specifications

Gross weight 12.6 kg
Net weight 12.3 kg
Volume 52.36 l
EAN 5710107052905
Sales restriction control
Matr grp for sales restriction No grouping
VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch) Global (Standard)
Product Group VLT® AutomationDrive FC-
Series 302
Power Rating (P1K5) 1.5 KW / 2.0 HP
Phase Three phase
Mains Voltage 525 - 600 VAC
Enclosure IP55 / Type12 Backplate
RFI Filter No RFI Filter
Brake - Safe Stop No brake chopper
LCP Graphical Loc. Cont. Panel
Coating PCB Coated PCB
Mains Option No Mains Option
Adaptation A Standard Cable Entries
Adaptation B No adaptation
Software Release Latest release std. SW.
Software Language Pack Standard Language Pack
A Option PROFIBUS DP MCA 101
B Option No B Option
C0 Option MCO No C0 option
C1 Option No C1 option
C Option Software No software option
D Option MCB-107 24V DC backup
Frame Size A5
Typecode Part 1 FC-302P1K5T6P55HXXGC
Typecode Part 2 XXXSXXXXA0BXCXXXXD0
Product Catalog NO VIEW
Power 160% (HO) [KW] 1.5
Height [mm] 4200
Width w/ no C options [mm] 2420
Depth [mm] 2000
Depth with Option A/B [mm] 2000
kVA 2.69
Power Loss HO [W] 65
Power Loss HO [W] 65
Continuous Current (HO) [A] 2.9
Intermittent Current (HO) [A] 4.64
Continuous Current (HO) [A] 2.7
Intermittent Current (HO) [A] 4.32
Calculated Gross Weight [kg] 13.6
Calculated Net Weight [kg] 13.3
Material Gross Weight 12.6
Material Net Weight 12.3
Vendor Cannot Determine Vendor
Modelcode01 FC-302P1K5T6P55HXXGC
Modelcode02 XXXSXXXXA0BXCXXXXD0
