Danfoss

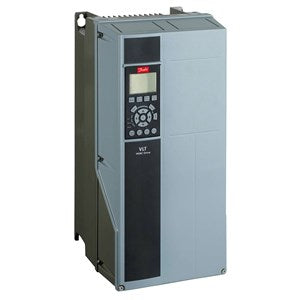

Danfoss Frequency Converter Danfoss FC-302P15KT6P21HXXGCXXXSXXXXALBXCXXXXD0

Danfoss Frequency Converter Danfoss FC-302P15KT6P21HXXGCXXXSXXXXALBXCXXXXD0

Regular price R 60,696.53 ZAR
Regular price R 86,709.33 ZAR Sale price R 60,696.53 ZAR
Sale Sold out

SKU: Part Number:132H5049

Shipping calculated at checkout.

Specifications

Gross weight 22.8 kg
Net weight 21.85 kg
Volume 144.67 l
EAN 5714853340712
Sales restriction control
Matr grp for sales restriction No grouping
VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch) Global (Standard)
Product Group VLT® AutomationDrive FC-
Series 302
Power Rating (P15K) 15 KW / 20 HP
Phase Three phase
Mains Voltage 525 - 600 VAC
Enclosure IP21 / Type 1 Backplate
RFI Filter No RFI Filter
Brake - Safe Stop No brake chopper
LCP Graphical Loc. Cont. Panel
Coating PCB Coated PCB
Mains Option No Mains Option
Adaptation A Standard Cable Entries
Adaptation B No adaptation
Software Release Latest release std. SW.
Software Language Pack Standard Language Pack
A Option PROFINET MCA 120
B Option No B Option
C0 Option MCO No C0 option
C1 Option No C1 option
C Option Software No software option
D Option MCB-107 24V DC backup
Frame Size B1
Typecode Part 1 FC-302P15KT6P21HXXGC
Typecode Part 2 XXXSXXXXALBXCXXXXD0
Product Catalog NO VIEW
Power 160% (HO) [KW] 15
Power 110% (NO) [KW] 18.5
Height [mm] 4800
Width w/ no C options [mm] 2420
Depth [mm] 2600
Depth with Option A/B [mm] 2600
kVA 21.9
Power Loss NO [W] 370
Power Loss NO [W] 370
Power Loss HO [W] 300
Power Loss HO [W] 300
Continuous Current (NO) [A] 28
Intermittent Current (NO) [A] 30.8
Continuous Current (NO) [A] 27
Intermittent Current (NO) [A] 29.7
Continuous Current (HO) [A] 23
Intermittent Current (HO) [A] 36.8
Continuous Current (HO) [A] 22
Intermittent Current (HO) [A] 35.2
Calculated Gross Weight [kg] 23.7
Calculated Net Weight [kg] 23.4
Material Gross Weight 22.8
Material Net Weight 21.85
Vendor Cannot Determine Vendor
Modelcode01 FC-302P15KT6P21HXXGC
Modelcode02 XXXSXXXXALBXCXXXXD0
