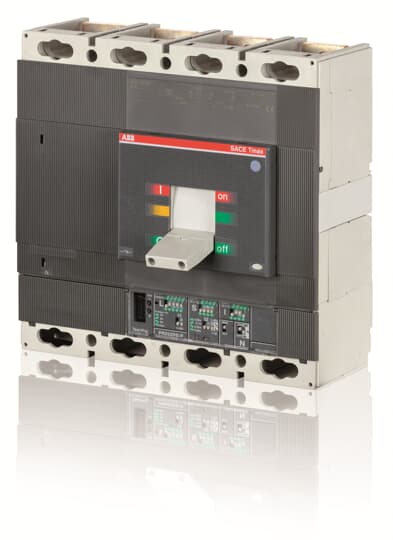

ABB Moulded Case Circuit Breaker T6L 1000 PR222DS/P-LSI In=1000 4p F F 1SDA060582R1
ABB Moulded Case Circuit Breaker T6L 1000 PR222DS/P-LSI In=1000 4p F F 1SDA060582R1
Regular price
R 45,112.90 ZAR
Regular price
R 82,023.46 ZAR
Sale price
R 45,112.90 ZAR
Unit price
/
per
C.BREAKER TMAX T6L 1000 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR222DS/P-LSI R 1000
Specifications
Ordering | |
---|---|
E-Number (Finland): | 3655458 |
EAN: | 8015644630911 |
Minimum Order Quantity: | 1 piece |
Customs Tariff Number: | 85362090 |
Dimensions | |
Product Net Width: | 280 mm |
Product Net Height: | 268 mm |
Product Net Depth / Length: | 103.5 mm |
Product Net Weight: | 12 kg |
Container Information | |
Package Level 1 Units: | 1 piece |
Package Level 1 Width: | 305 mm |
Package Level 1 Height: | 285 mm |
Package Level 1 Depth / Length: | 370 mm |
Package Level 1 Gross Weight: | 14 kg |
Package Level 1 EAN: | 8015644630911 |
Environmental | |
RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Additional Information | |
Electrical Durability: | 4000 cycle60 cycles per hour |
Mechanical Durability: | 20000 cycle120 cycles per hour |
Number of Poles: | 4 |
Power Loss: | at Rated Operating Conditions per Pole 50 W |
Product Main Type: | SACE Tmax T |
Product Name: | Moulded Case Circuit Breaker |
Product Type: | CB |
Rated Current (In): | Main Circuit 1000 A |
Rated Impulse Withstand Voltage (Uimp): | 8 kV |
Rated Insulation Voltage (Ui): | 1000 V |
Rated Operational Voltage: | 690 V AC |
Rated Service Short-Circuit Breaking Capacity (Ics): | (220 V AC) 150 kA(230 V AC) 150 kA(380 V AC) 75 kA(400 V AC) 75 kA(415 V AC) 75 kA(440 V AC) 60 kA(500 V AC) 49 kA(690 V AC) 22.5 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu): | (220 V AC) 200 kA(230 V AC) 200 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 80 kA(500 V AC) 65 kA(690 V AC) 30 kA |
Rated Uninterrupted Current (Iu): | 1000 A |
Release: | PR222DS/P-LSI |
Release Type: | EL |
Short-Circuit Performance Level: | L |
Standards: | IEC |
Sub-type: | T6 |
Suitable For: | T6 |
Suitable for Product Class: | Moulded Case Circuit Breakers |
Terminal Connection Type: | Fixed Circuit-BreakersFront |
Test Voltage Max (Utest): | 3500 V |
Version: | F |
Certificates and Declarations (Document Number) | |
Data Sheet, Technical Information: | 1SDC210015D0201 |
Declaration of Conformity - CE: | 9AKK106713A5538 |
Environmental Information: | 9AKK10103A1058 |
Instructions and Manuals: | 1SDH000511R0003 |
REACH Declaration: | 9AKK108466A1425 |
RoHS Information: | 9AKK108466A1424 |
Classifications | |
ETIM 4: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
ETIM 5: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
ETIM 6: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
ETIM 7: | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
ETIM 8: | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
Object Classification Code: | Q |
WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
