Danfoss

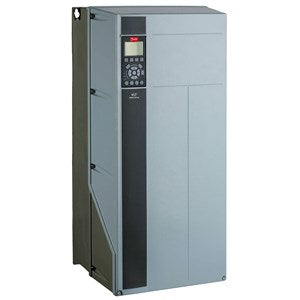

Danfoss Frequency Converter Danfoss FC-302P55KT7E55H2XGCXXXSXXXXAXBXCXXXXD0

Danfoss Frequency Converter Danfoss FC-302P55KT7E55H2XGCXXXSXXXXAXBXCXXXXD0

Regular price R 145,429.72 ZAR
Regular price R 207,756.74 ZAR Sale price R 145,429.72 ZAR
Sale Sold out

SKU: Part Number:132L8024

Shipping calculated at checkout.

Specifications

Gross weight 59.3 kg
Net weight 59 kg
Volume 228.095 l
EAN 5714853896189
Sales restriction control
Matr grp for sales restriction No grouping
VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch) Global (Standard)
Product Group VLT® AutomationDrive FC-
Series 302
Power Rating (P55K) 55 KW / 75 HP
Phase Three phase
Mains Voltage 525 - 690 VAC *
Possible rating issue Possible Rating Issue:
Enclosure IP55 / Type 12
RFI Filter RFI Filter
Brake - Safe Stop No brake chopper
LCP Graphical Loc. Cont. Panel
Coating PCB Coated PCB
Mains Option No Mains Option
Adaptation A Standard Cable Entries
Adaptation B No adaptation
Software Release Latest release std. SW.
Software Language Pack Standard Language Pack
A Option No A Option
B Option No B Option
C0 Option MCO No C0 option
C1 Option No C1 option
C Option Software No software option
D Option MCB-107 24V DC backup
Frame Size C2
Typecode Part 1 FC-302P55KT7E55H2XGC
Typecode Part 2 XXXSXXXXAXBXCXXXXD0
Product Catalog NO VIEW
Power 150% (HO) [KW] 55
Power 110% (NO) [KW] 75
Height [mm] 7700
Width w/ no C options [mm] 3700
Depth [mm] 3350
Depth with Option A/B [mm] 3350
kVA 74.1
Power Loss NO [W] 1500
Power Loss NO [W] 1500
Power Loss HO [W] 1100
Power Loss HO [W] 1100
Continuous Current (NO) [A] 87
Intermittent Current (NO) [A] 95.7
Continuous Current (NO) [A] 83
Intermittent Current (NO) [A] 91.3
Continuous Current (HO) [A] 65
Intermittent Current (HO) [A] 97.5
Continuous Current (HO) [A] 62
Intermittent Current (HO) [A] 93
Calculated Gross Weight [kg] 59.3
Calculated Net Weight [kg] 59
Material Gross Weight 59.3
Material Net Weight 59
Vendor Cannot Determine Vendor
Modelcode01 FC-302P55KT7E55H2XGC
Modelcode02 XXXSXXXXAXBXCXXXXD0
