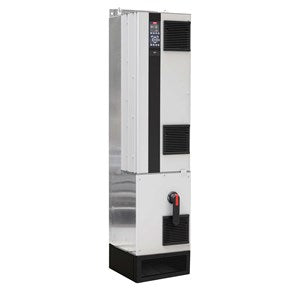

Danfoss
Regular price
R 538,972.99 ZAR
Regular price
R 769,961.41 ZAR
Sale price
R 538,972.99 ZAR
Unit price
/
per
SKU:
Part Number:132N6385
Couldn't load pickup availability
Specifications
|
|---|
| Gross weight |
200.3 kg |
| Net weight |
200 kg |
| Volume |
0 l |
| EAN |
5715253104416 |
| Sales restriction control |
|---|
| Matr grp for sales restriction |
No grouping |
| VLT® AUTOMATIONDRIVE FC 300 SERIES |
|---|
| Product View (Switch) |
Global (Standard) |
| Product Group |
VLT® AutomationDrive FC- |
| Series |
302 |
| Power Rating |
(N315) 315 KW / 450 HP |
| Phase |
Three phase |
| Mains Voltage |
525 - 690 VAC * |
| Possible rating issue |
Possible Rating Issue: |
| Enclosure |
IP21 / Type 1 |
| RFI Filter |
RFI Filter |
| Brake - Safe Stop |
Brake chopper |
| LCP |
Graphical Loc. Cont. Panel |
| Coating PCB |
Coated PCB |
| Mains Option |
Mains Disconnect + Fuse |
| Adaptation A |
Standard Cable Entries |
| Adaptation B |
No adaptation |
| Software Release |
Latest release std. SW. |
| Software Language Pack |
Standard Language Pack |
| A Option |
PROFIBUS DP MCA 101 |
| B Option |
No B Option |
| C0 Option MCO |
No C0 option |
| C1 Option |
No C1 option |
| C Option Software |
No software option |
| D Option |
MCB-107 24V DC backup |
| Frame Size |
D7H |
| Typecode Part 1 |
FC-302N315T7E21H2BGC |
| Typecode Part 2 |
3XXSXXXXA0BXCXXXXD0 |
| Product Catalog |
NO VIEW |
| Power 150% (HO) [KW] |
315 |
| Power 110% (NO) [KW] |
400 |
| Height [mm] |
19780 |
| Width w/ no C options [mm] |
4200 |
| Depth [mm] |
3860 |
| Depth with Option A/B [mm] |
3860 |
| kVA |
411 |
| Power Loss NO [W] |
5028 |
| Power Loss NO [W] |
5155 |
| Power Loss HO [W] |
4146 |
| Power Loss HO [W] |
4258 |
| Continuous Current (NO) [A] |
418 |
| Intermittent Current (NO) [A] |
460 |
| Continuous Current (NO) [A] |
400 |
| Intermittent Current (NO) [A] |
440 |
| Continuous Current (HO) [A] |
360 |
| Intermittent Current (HO) [A] |
540 |
| Continuous Current (HO) [A] |
344 |
| Intermittent Current (HO) [A] |
516 |
| Calculated Gross Weight [kg] |
200.3 |
| Calculated Net Weight [kg] |
200 |
| Material Gross Weight |
200.3 |
| Material Net Weight |
200 |
| Plant from Orderline |
F605 |
| Vendor |
Cannot Determine Vendor |
| Modelcode01 |
FC-302N315T7E21H2BGC |
| Modelcode02 |
3XXSXXXXA0BXCXXXXD0 |
