Danfoss

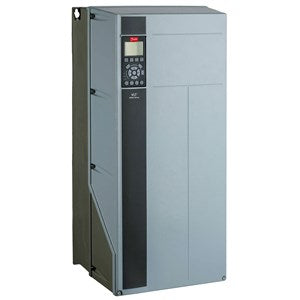

Danfoss Frequency Converter Danfoss FC-302P75KT7E21H2XGCXXXSXXXXA0BXCXXXXDX

Danfoss Frequency Converter Danfoss FC-302P75KT7E21H2XGCXXXSXXXXA0BXCXXXXDX

Regular price R 160,038.74 ZAR
Regular price R 228,626.77 ZAR Sale price R 160,038.74 ZAR
Sale Sold out

SKU: Part Number:134G1750

Shipping calculated at checkout.

Specifications

Gross weight 54.3 kg
Net weight 52 kg
Volume 228.095 l
EAN 5710107520459
Sales restriction control
Matr grp for sales restriction No grouping
VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch) Global (Standard)
Product Group VLT® AutomationDrive FC-
Series 302
Power Rating (P75K) 75 KW / 100 HP
Phase Three phase
Mains Voltage 525 - 690 VAC *
Possible rating issue Possible Rating Issue:
Enclosure IP21 / Type 1
RFI Filter RFI Filter
Brake - Safe Stop No brake chopper
LCP Graphical Loc. Cont. Panel
Coating PCB Coated PCB
Mains Option No Mains Option
Adaptation A Standard Cable Entries
Adaptation B No adaptation
Software Release Latest release std. SW.
Software Language Pack Standard Language Pack
A Option PROFIBUS DP MCA 101
B Option No B Option
C0 Option MCO No C0 option
C1 Option No C1 option
C Option Software No software option
D Option No D option
Frame Size C2
Typecode Part 1 FC-302P75KT7E21H2XGC
Typecode Part 2 XXXSXXXXA0BXCXXXXDX
Product Catalog NO VIEW
Power 180% (HO) [KW] NV
Power 160% (HO) [KW] NV
Power 150% (HO) [KW] 75
Power 110% (NO) [KW] 90
Height [mm] 7700
Height w/ Regen/Loadshare [mm] NV
Width w/ no C options [mm] 3700
Depth [mm] 3350
Depth with Option A/B [mm] 3350
kVA 99.2
Power Loss NO [W] 1800
Power Loss NO [W] 1800
Power Loss HO [W] 1500
Power Loss HO [W] 1500
Continuous Current (NO) [A] 105
Intermittent Current (NO) [A] 116
Continuous Current (NO) [A] 100
Intermittent Current (NO) [A] 110
Continuous Current (HO) [A] 87
Intermittent Current (HO) [A] 130
Continuous Current (HO) [A] 83
Intermittent Current (HO) [A] 124
Calculated Gross Weight [kg] 55.3
Calculated Net Weight [kg] 55
Material Gross Weight 54.3
Material Net Weight 52
Vendor Cannot Determine Vendor
Modelcode01 FC-302P75KT7E21H2XGC
Modelcode02 XXXSXXXXA0BXCXXXXDX
