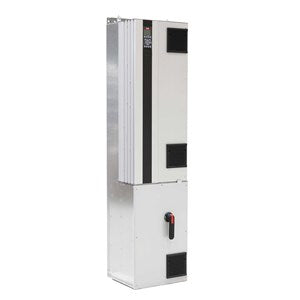

Danfoss
Regular price
R 170,309.23 ZAR
Regular price
R 243,298.90 ZAR
Sale price
R 170,309.23 ZAR
Unit price
/
per
SKU:
Part Number:134G7844
Couldn't load pickup availability
Specifications
|
|---|
| Gross weight |
126 kg |
| Net weight |
106 kg |
| Volume |
0 l |
| EAN |
5710107627523 |
| Sales restriction control |
|---|
| Matr grp for sales restriction |
No grouping |
| VLT® AUTOMATIONDRIVE FC 300 SERIES |
|---|
| Product View (Switch) |
Global (Standard) |
| Product Group |
VLT® AutomationDrive FC- |
| Series |
302 |
| Power Rating |
(N90K) 90 KW / 125 HP |
| Phase |
Three phase |
| Mains Voltage |
380 - 500 VAC |
| Enclosure |
(E54) IP54 / Type 12 |
| RFI Filter |
RFI Filter |
| Brake - Safe Stop |
Brake chopper |
| LCP |
Graphical Loc. Cont. Panel |
| Coating PCB |
Coated PCB |
| Mains Option |
No Mains Option |
| Adaptation A |
Standard Cable Entries |
| Adaptation B |
No adaptation |
| Software Release |
Latest release std. SW. |
| Software Language Pack |
Standard Language Pack |
| A Option |
No A Option |
| B Option |
No B Option |
| C0 Option MCO |
No C0 option |
| C1 Option |
No C1 option |
| C Option Software |
No software option |
| D Option |
No D option |
| Frame Size |
D5H |
| Typecode Part 1 |
FC-302N90KT5E54H2BGC |
| Typecode Part 2 |
XXXSXXXXAXBXCXXXXDX |
| Product Catalog |
NO VIEW |
| Power 180% (HO) [KW] |
NV |
| Power 160% (HO) [KW] |
NV |
| Power 150% (HO) [KW] |
90 |
| Power 110% (NO) [KW] |
110 |
| Height [mm] |
13240 |
| Height w/ Regen/Loadshare [mm] |
NV |
| Width w/ no C options [mm] |
3250 |
| Depth [mm] |
3810 |
| Depth with Option A/B [mm] |
3810 |
| kVA |
123 |
| Power Loss NO [W] |
2559 |
| Power Loss NO [W] |
2261 |
| Power Loss HO [W] |
2031 |
| Power Loss HO [W] |
1828 |
| Continuous Current (NO) [A] |
212 |
| Intermittent Current (NO) [A] |
233 |
| Continuous Current (NO) [A] |
190 |
| Intermittent Current (NO) [A] |
209 |
| Continuous Current (HO) [A] |
177 |
| Intermittent Current (HO) [A] |
266 |
| Continuous Current (HO) [A] |
160 |
| Intermittent Current (HO) [A] |
240 |
| Calculated Gross Weight [kg] |
166.3 |
| Calculated Net Weight [kg] |
166 |
| Material Gross Weight |
126 |
| Material Net Weight |
106 |
| Plant from Orderline |
C201 |
| Vendor |
Cannot Determine Vendor |
| Modelcode01 |
FC-302N90KT5E54H2BGC |
| Modelcode02 |
XXXSXXXXAXBXCXXXXDX |
