Danfoss

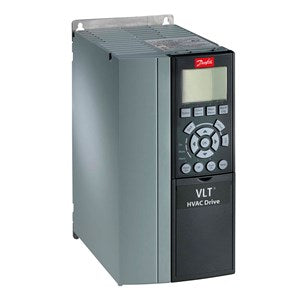

Danfoss Frequency Converter Danfoss FC-302P1K1T7E20H4BXCXXXSXXXXAXBXCXXXXDX

Danfoss Frequency Converter Danfoss FC-302P1K1T7E20H4BXCXXXSXXXXAXBXCXXXXDX

R 16,570.11 ZAR

~~R 23,671.59 ZAR~~ R 16,570.11 ZAR

Sale Sold out

SKU: Part Number:134H9179

Shipping calculated at checkout.

Product variants

Quantity

Specifications


Gross weight	6.9 kg
Net weight	6.6 kg
Volume	22.04 l
EAN	5710107743032
Sales restriction control
Matr grp for sales restriction	No grouping
VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch)	Global (Standard)
Product Group	VLT® AutomationDrive FC-
Series	302
Power Rating	(P1K1) 1.1 KW / 1.5 HP
Phase	Three phase
Mains Voltage	525 - 690 VAC *
Possible rating issue	Possible Rating Issue:
Enclosure	(E20) IP20 / Chassis
RFI Filter	RFI class A1 (C2)
Brake - Safe Stop	Brake chopper
LCP	No Loc. Cont. Panel
Coating PCB	Coated PCB
Mains Option	No Mains Option
Adaptation A	Standard Cable Entries
Adaptation B	No adaptation
Software Release	Latest release std. SW.
Software Language Pack	Standard Language Pack
A Option	No A Option
B Option	No B Option
C0 Option MCO	No C0 option
C1 Option	No C1 option
C Option Software	No software option
D Option	No D option
Frame Size	A3
Typecode Part 1	FC-302P1K1T7E20H4BXC
Typecode Part 2	XXXSXXXXAXBXCXXXXDX
Product Catalog	NO VIEW
Power 160% (HO) [KW]	1.1
Height [mm]	2680
Width w/ no C options [mm]	1300
Depth [mm]	2050
Depth with Option A/B [mm]	2200
kVA	1.91
Power Loss NO [W]	44
Power Loss NO [W]	44
Power Loss HO [W]	44
Power Loss HO [W]	44
Continuous Current (HO) [A]	2.1
Intermittent Current (HO) [A]	3.36
Continuous Current (HO) [A]	1.6
Intermittent Current (HO) [A]	2.56
Calculated Gross Weight [kg]	6.9
Calculated Net Weight [kg]	6.6
Material Gross Weight	6.9
Material Net Weight	6.6
Vendor	Cannot Determine Vendor
Modelcode01	FC-302P1K1T7E20H4BXC
Modelcode02	XXXSXXXXAXBXCXXXXDX
