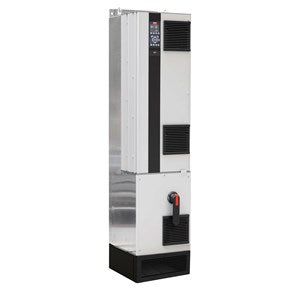

Danfoss
Regular price
R 454,098.84 ZAR
Regular price
R 648,712.63 ZAR
Sale price
R 454,098.84 ZAR
Unit price
/
per
SKU:
Part Number:134H9416
Couldn't load pickup availability
Specifications
|
|---|
| Gross weight |
200.3 kg |
| Net weight |
200 kg |
| Volume |
0 l |
| EAN |
5710107745524 |
| Sales restriction control |
|---|
| Matr grp for sales restriction |
No grouping |
| VLT® AUTOMATIONDRIVE FC 300 SERIES |
|---|
| Product View (Switch) |
Global (Standard) |
| Product Group |
VLT® AutomationDrive FC- |
| Series |
302 |
| Power Rating |
(N250) 250 KW / 350 HP |
| Phase |
Three phase |
| Mains Voltage |
525 - 690 VAC * |
| Possible rating issue |
Possible Rating Issue: |
| Enclosure |
(E54) IP54 / Type 12 |
| RFI Filter |
RFI Filter |
| Brake - Safe Stop |
No brake chopper |
| LCP |
Graphical Loc. Cont. Panel |
| Coating PCB |
Coated PCB |
| Mains Option |
Mains Disconnect + Fuse |
| Adaptation A |
Standard Cable Entries |
| Adaptation B |
No adaptation |
| Software Release |
Latest release std. SW. |
| Software Language Pack |
Standard Language Pack |
| A Option |
PROFIBUS DP MCA 101 |
| B Option |
No B Option |
| C0 Option MCO |
No C0 option |
| C1 Option |
No C1 option |
| C Option Software |
No software option |
| D Option |
MCB-107 24V DC backup |
| Frame Size |
D7H |
| Typecode Part 1 |
FC-302N250T7E54H2XGC |
| Typecode Part 2 |
3XXSXXXXA0BXCXXXXD0 |
| Product Catalog |
NO VIEW |
| Power 150% (HO) [KW] |
250 |
| Power 110% (NO) [KW] |
315 |
| Height [mm] |
19780 |
| Width w/ no C options [mm] |
4200 |
| Depth [mm] |
3860 |
| Depth with Option A/B [mm] |
3860 |
| kVA |
347 |
| Power Loss NO [W] |
4465 |
| Power Loss NO [W] |
4614 |
| Power Loss HO [W] |
3642 |
| Power Loss HO [W] |
3771 |
| Continuous Current (NO) [A] |
360 |
| Intermittent Current (NO) [A] |
396 |
| Continuous Current (NO) [A] |
344 |
| Intermittent Current (NO) [A] |
378 |
| Continuous Current (HO) [A] |
303 |
| Intermittent Current (HO) [A] |
454 |
| Continuous Current (HO) [A] |
290 |
| Intermittent Current (HO) [A] |
435 |
| Calculated Gross Weight [kg] |
200.3 |
| Calculated Net Weight [kg] |
200 |
| Material Gross Weight |
200.3 |
| Material Net Weight |
200 |
| Vendor |
Cannot Determine Vendor |
| Modelcode01 |
FC-302N250T7E54H2XGC |
| Modelcode02 |
3XXSXXXXA0BXCXXXXD0 |
