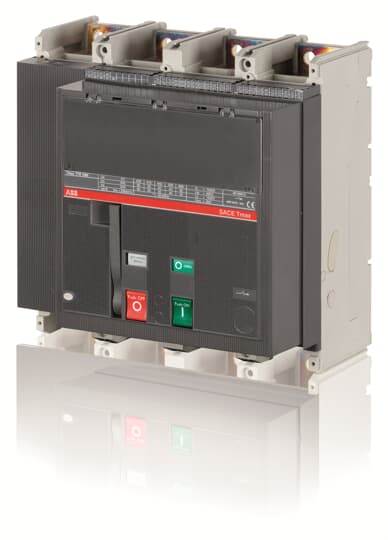

ABB Moulded Case Circuit Breaker T7D 1000 4p F F M 1SDA062035R1
ABB Moulded Case Circuit Breaker T7D 1000 4p F F M 1SDA062035R1
Regular price
R 29,800.78 ZAR
Regular price
R 54,183.24 ZAR
Sale price
R 29,800.78 ZAR
Unit price
/
per
SWITCH-DISCONNECTOR TMAX T7D 1000 FIXED FOUR-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM
Specifications
Ordering | |
---|---|
EAN: | 8015644645731 |
Minimum Order Quantity: | 1 piece |
Customs Tariff Number: | 85362090 |
Dimensions | |
Product Net Width: | 280 mm |
Product Net Height: | 268 mm |
Product Net Depth / Length: | 178 mm |
Product Net Weight: | 14 kg |
Container Information | |
Package Level 1 Units: | 1 piece |
Package Level 1 Width: | 360 mm |
Package Level 1 Height: | 350 mm |
Package Level 1 Depth / Length: | 360 mm |
Package Level 1 Gross Weight: | 15.5 kg |
Package Level 1 EAN: | 8015644645731 |
Environmental | |
RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Additional Information | |
Number of Poles: | 4 |
Power Loss: | at Rated Operating Conditions per Pole 30 W |
Product Main Type: | SACE Tmax T |
Product Name: | Moulded Case Circuit Breaker |
Product Type: | SD |
Rated Operational Voltage: | 690 V AC750 V DC |
Rated Short-time Withstand Current Low Voltage (Icw): | for 1 s 20 A |
Rated Uninterrupted Current (Iu): | 1000 A |
Short-Circuit Performance Level: | D |
Standards: | IEC 60947 |
Sub-type: | T7 |
Suitable For: | T7M |
Suitable for Product Class: | Moulded Case Circuit Breakers |
Terminal Connection Type: | Fixed Circuit-BreakersFront |
Version: | F |
Certificates and Declarations (Document Number) | |
Data Sheet, Technical Information: | 1SDC210015D0201 |
Declaration of Conformity - CE: | 9AKK106713A5537 |
Environmental Information: | 9AKK10103A1059 |
Instructions and Manuals: | 1SDC210015D0201 |
REACH Declaration: | 9AKK108466A1425 |
RoHS Information: | 9AKK108466A1424 |
Classifications | |
ETIM 4: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
ETIM 5: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
ETIM 6: | EC000216 - Switch disconnector |
ETIM 7: | EC000216 - Switch disconnector |
ETIM 8: | EC000216 - Switch disconnector |
Object Classification Code: | Q |
UNSPSC: | 39120000 |
WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
