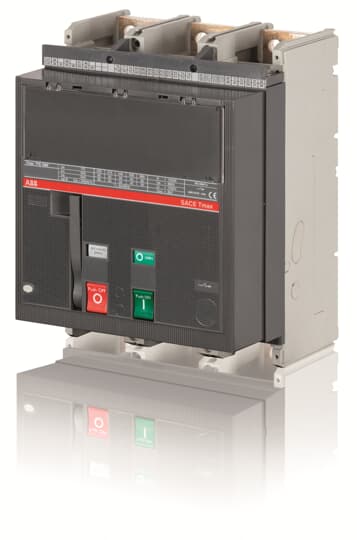

ABB Moulded Case Circuit Breaker T7D 1250 3p F F M 1SDA062038R1

SWITCH-DISCONNECTOR TMAX T7D 1250 FIXED THREE-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM

Specifications

Ordering
EAN:	8015644645762
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85362090
Dimensions
Product Net Width:	210 mm
Product Net Height:	268 mm
Product Net Depth / Length:	178 mm
Product Net Weight:	11 kg
Container Information
Package Level 1 Units:	1 piece
Package Level 1 Width:	280 mm
Package Level 1 Height:	350 mm
Package Level 1 Depth / Length:	360 mm
Package Level 1 Gross Weight:	12.5 kg
Package Level 1 EAN:	8015644645762
Environmental
RoHS Status:	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Additional Information
Number of Poles:	3
Power Loss:	at Rated Operating Conditions per Pole 47 W
Product Main Type:	SACE Tmax T
Product Name:	Moulded Case Circuit Breaker
Product Type:	SD
Rated Operational Voltage:	690 V AC750 V DC
Rated Short-time Withstand Current Low Voltage (Icw):	for 1 s 20 A
Rated Uninterrupted Current (Iu):	1250 A
Short-Circuit Performance Level:	D
Standards:	IEC 60947
Sub-type:	T7
Suitable For:	T7M
Suitable for Product Class:	Moulded Case Circuit Breakers
Terminal Connection Type:	Fixed Circuit-BreakersFront
Version:	F
Certificates and Declarations (Document Number)
Data Sheet, Technical Information:	1SDC210015D0201
Declaration of Conformity - CE:	9AKK106713A5537
Environmental Information:	9AKK10103A1059
Instructions and Manuals:	1SDC210015D0201
REACH Declaration:	9AKK108466A1425
RoHS Information:	9AKK108466A1424
Classifications
ETIM 4:	EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 5:	EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 6:	EC000216 - Switch disconnector
ETIM 7:	EC000216 - Switch disconnector
ETIM 8:	EC000216 - Switch disconnector
Object Classification Code:	Q
UNSPSC:	39120000
WEEE Category:	5. Small Equipment (No External Dimension More Than 50 cm)
