ABB Accessory SOR T7-T7M-X1 110...120Va.c./d.c. 1SDA062069R1
ABB Accessory SOR T7-T7M-X1 110...120Va.c./d.c. 1SDA062069R1
Regular price
R 1,107.35 ZAR
Regular price
R 2,013.36 ZAR
Sale price
R 1,107.35 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

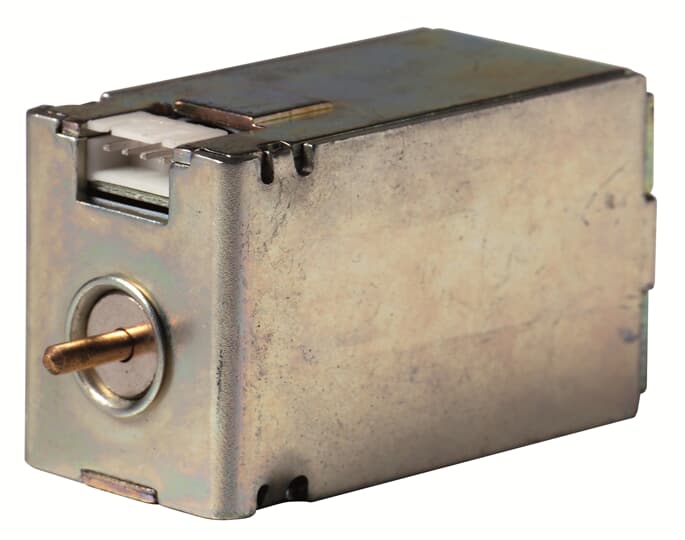

SHUNT OPENING RELEASE 110...120V AC-DC T7-T7M-X1
Specifications
| Ordering | |
|---|---|
| EAN: | 8015644645892 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Order Code US and Canada: | KT7XS6 |
| Dimensions | |
| Product Net Weight: | 1 kg |
| Container Information | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 105 mm |
| Package Level 1 Height: | 55 mm |
| Package Level 1 Depth / Length: | 135 mm |
| Package Level 1 Gross Weight: | 0.15 kg |
| Package Level 1 EAN: | 8015644645892 |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information | |
| Configuration Type: | Loose or configurable |
| Current Type: | AC/DC |
| Product Main Type: | Accessories for Tmax T |
| Product Name: | Accessory |
| Product Type: | ACC |
| Rated Voltage (Ur): | 110 ... 120 V AC110 ... 120 V DC |
| Standards: | IEC |
| Suitable For: | T7, X1 |
| Suitable for Product Class: | SACE EmaxSACE Tmax T |
| Certificates and Declarations (Document Number) | |
| Data Sheet, Technical Information: | 1SDC210015D02081SDC210300D0201 |
| Declaration of Conformity - CE: | 1SDL000165R0001 |
| Instructions and Manuals: | 1SDH000529R0602 |
| REACH Declaration: | 9AKK108466A1425 |
| RoHS Information: | 9AKK108466A1424 |
| Classifications | |
| ETIM 6: | EC002483 - Switch spool for power circuit breaker |
| ETIM 7: | EC002483 - Switch spool for power circuit breaker |
| ETIM 8: | EC002483 - Switch spool for power circuit breaker |
| Object Classification Code: | Q |
| UNSPSC: | 39120000 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
