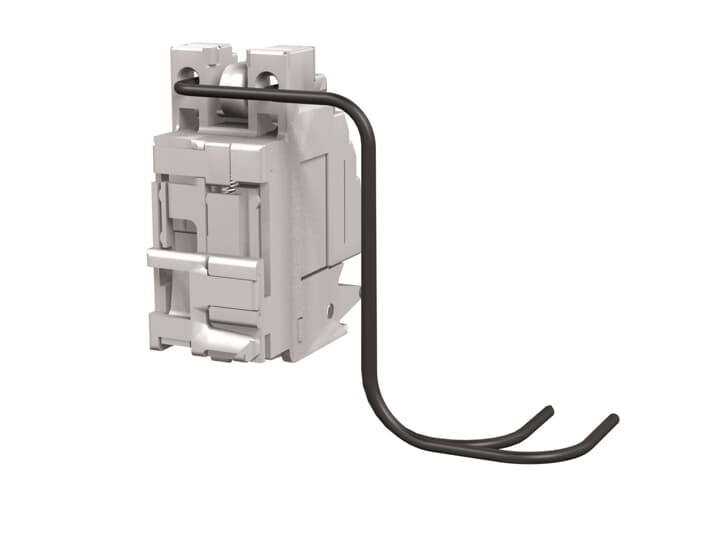

ABB Accessory UVR-C XT1..XT4 F/P 110-127Vac-110-125Vdc 1SDA066398R1

UNDERVOLTAGE RELEASE WIRED 110...127V AC-110...125V DC FOR C.BREAKER FIXED-PLUG-IN XT1..XT4

Specifications

Ordering
E-Number (Finland):	3638718
E-Number (Sweden):	3182062
EAN:	8015644692544
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85389099
Order Code US and Canada:	KXTAUVRCFP4
Dimensions
Product Net Weight:	0.123 kg
Container Information
Package Level 1 Units:	box 1 piece
Package Level 1 Width:	110 mm
Package Level 1 Height:	60 mm
Package Level 1 Depth / Length:	140 mm
Package Level 1 Gross Weight:	0.129 kg
Package Level 1 EAN:	8015644692544
Environmental
RoHS Status:	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Additional Information
Configuration Type:	Loose or configurable
Current Type:	AC/DC
Order Multiple:	1 piece
Product Main Type:	Accessories for Tmax XT
Product Name:	Accessory
Product Type:	ACC
Rated Voltage (Ur):	110 ... 127 V AC110 ... 125 V DC
Standards:	IEC 60947-2
Suitable For:	XT1, XT2, XT3, XT4
Suitable for Product Class:	SACE Tmax XT
Certificates and Declarations (Document Number)
Data Sheet, Technical Information:	1SDC210100D02051SDC210099D0205
Declaration of Conformity - CE:	Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals:	1SDH000719R0502
REACH Declaration:	9AKK108466A1425
RoHS Information:	9AKK108466A1424
Classifications
ETIM 6:	EC001022 - Under voltage coil
ETIM 7:	EC001022 - Under voltage coil
ETIM 8:	EC001022 - Under voltage coil
Object Classification Code:	Q
UNSPSC:	39120000
WEEE Category:	5. Small Equipment (No External Dimension More Than 50 cm)
