ABB Accessory UVR-C XT1..XT4 F/P 380-440 Vac 1SDA066400R1
ABB Accessory UVR-C XT1..XT4 F/P 380-440 Vac 1SDA066400R1
Regular price
R 1,228.68 ZAR
Regular price
R 2,233.97 ZAR
Sale price
R 1,228.68 ZAR
Unit price
/
per

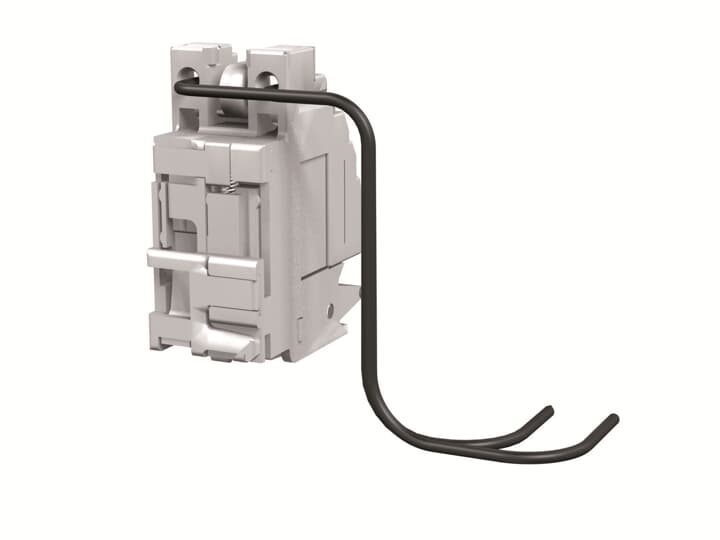

UNDERVOLTAGE RELEASE WIRED 380...440V AC FOR C.BREAKER FIXED-PLUG-IN XT1..XT4
Specifications
Ordering | |
---|---|
EAN: | 8015644692551 |
Minimum Order Quantity: | 1 piece |
Customs Tariff Number: | 85389099 |
Order Code US and Canada: | KXTAUVRCFP6 |
Dimensions | |
Product Net Weight: | 0.143 kg |
Container Information | |
Package Level 1 Units: | box 1 piece |
Package Level 1 Width: | 110 mm |
Package Level 1 Height: | 60 mm |
Package Level 1 Depth / Length: | 140 mm |
Package Level 1 Gross Weight: | 0.15 kg |
Package Level 1 EAN: | 8015644692551 |
Environmental | |
RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Additional Information | |
Configuration Type: | Loose or configurable |
Current Type: | AC |
Order Multiple: | 1 piece |
Product Main Type: | Accessories for Tmax XT |
Product Name: | Accessory |
Product Type: | ACC |
Rated Voltage (Ur): | 380 ... 440 V AC |
Standards: | IEC 60947-2 |
Suitable For: | XT1, XT2, XT3, XT4 |
Suitable for Product Class: | SACE Tmax XT |
Certificates and Declarations (Document Number) | |
Data Sheet, Technical Information: | 1SDC210100D02051SDC210099D0205 |
Declaration of Conformity - CE: | Refer to the EU Declaration of the relative Circuit Breaker |
Instructions and Manuals: | 1SDH000719R0502 |
REACH Declaration: | 9AKK108466A1425 |
RoHS Information: | 9AKK108466A1424 |
Classifications | |
ETIM 6: | EC001022 - Under voltage coil |
ETIM 7: | EC001022 - Under voltage coil |
ETIM 8: | EC001022 - Under voltage coil |
Object Classification Code: | Q |
UNSPSC: | 39120000 |
WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
