ABB
ABB Accessory KIT DIN50022 XT3 3p PLATE DIN 1SDA066420R1
ABB Accessory KIT DIN50022 XT3 3p PLATE DIN 1SDA066420R1
Regular price
R 122.87 ZAR
Regular price
R 223.40 ZAR
Sale price
R 122.87 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

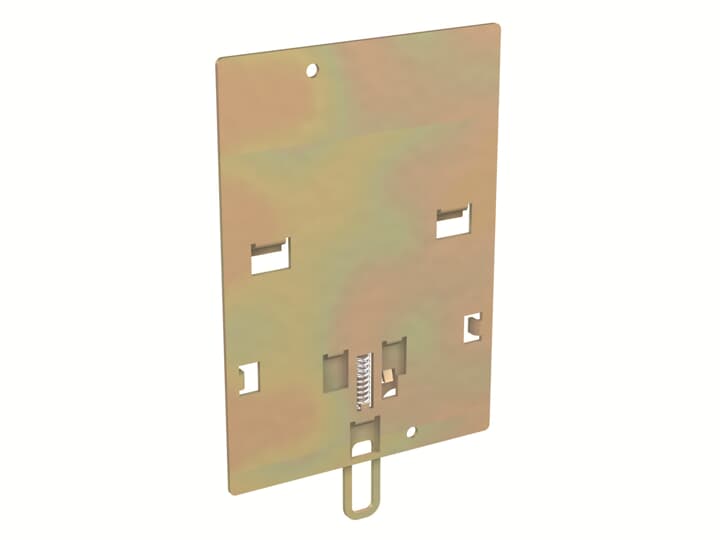

PLATE FOR DIN 50022 PROFILE MOUNTING THREE-POLE XT3
Specifications
| Ordering | |
|---|---|
| EAN: | 8015644002756 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362090 |
| Order Code US and Canada: | KXT3EDIN-3 |
| Dimensions | |
| Product Net Weight: | 0.154 kg |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 145 mm |
| Package Level 1 Height: | 20 mm |
| Package Level 1 Depth / Length: | 200 mm |
| Package Level 1 Gross Weight: | 0.162 kg |
| Package Level 1 EAN: | 8015644002756 |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information | |
| Configuration Type: | Loose or configurable |
| Number of Poles: | 3 |
| Order Multiple: | 1 piece |
| Product Main Type: | Accessories for Tmax XT |
| Product Name: | Accessory |
| Product Type: | ACC |
| Standards: | IEC 60947-2 |
| Suitable For: | XT3 |
| Suitable for Product Class: | SACE Tmax XT |
| Certificates and Declarations (Document Number) | |
| Data Sheet, Technical Information: | 1SDC210100D02061SDC210099D0206 |
| Declaration of Conformity - CE: | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals: | 1SDH000719R0802 |
| REACH Declaration: | 9AKK108466A1425 |
| RoHS Information: | 9AKK108466A1424 |
| Classifications | |
| ETIM 6: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 7: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8: | EC002498 - Accessories/spare parts for low-voltage switch technology |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
