ABB Accessory MOE XT2-XT4 24V dc 1SDA066463R1
ABB Accessory MOE XT2-XT4 24V dc 1SDA066463R1
Regular price
R 6,364.57 ZAR
Regular price
R 11,571.94 ZAR
Sale price
R 6,364.57 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

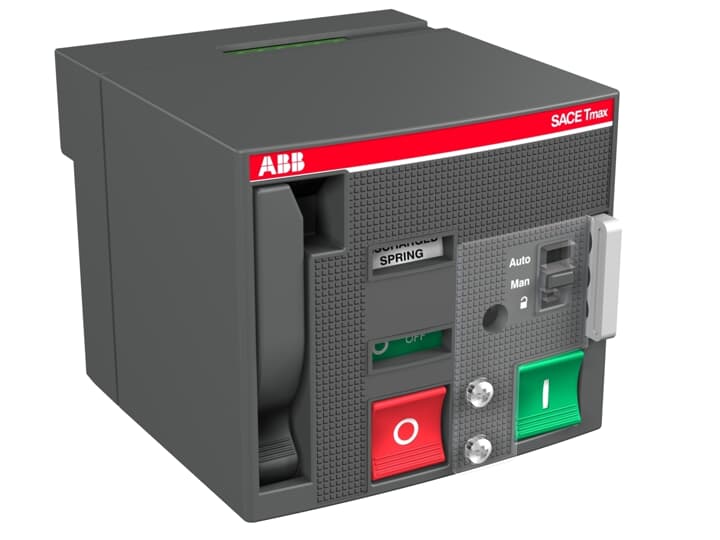

MOTOR OPERATOR 24V DC XT2-XT4
Specifications
| Ordering | |
|---|---|
| E-Number (Finland): | 3638729 |
| EAN: | 8015644003692 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Order Code US and Canada: | KXTCMOE24 |
| Dimensions | |
| Product Net Weight: | 1.361 kg |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 94 mm |
| Package Level 1 Height: | 106 mm |
| Package Level 1 Depth / Length: | 149 mm |
| Package Level 1 Gross Weight: | 1.433 kg |
| Package Level 1 EAN: | 8015644003692 |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information | |
| Configuration Type: | Loose or configurable |
| Current Type: | DC |
| Order Multiple: | 1 piece |
| Product Main Type: | Accessories for Tmax XT |
| Product Name: | Accessory |
| Product Type: | ACC |
| Rated Voltage (Ur): | 24 V DC |
| Standards: | IEC 60947-2 |
| Suitable For: | XT2, XT4 |
| Suitable for Product Class: | SACE Tmax XT |
| Certificates and Declarations (Document Number) | |
| Data Sheet, Technical Information: | 1SDC210100D02051SDC210099D0205 |
| Declaration of Conformity - CE: | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals: | 1SDH000721R0601 |
| REACH Declaration: | 9AKK108466A1425 |
| RoHS Information: | 9AKK108466A1424 |
| Classifications | |
| ETIM 6: | EC001030 - Motor operator for power circuit-breaker |
| ETIM 7: | EC001030 - Motor operator for power circuit-breaker |
| ETIM 8: | EC001030 - Motor operator for power circuit-breaker |
| Object Classification Code: | Q |
| UNSPSC: | 39120000 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
