ABB Accessory TMD 25-300 XT4 4p 1SDA067469R1

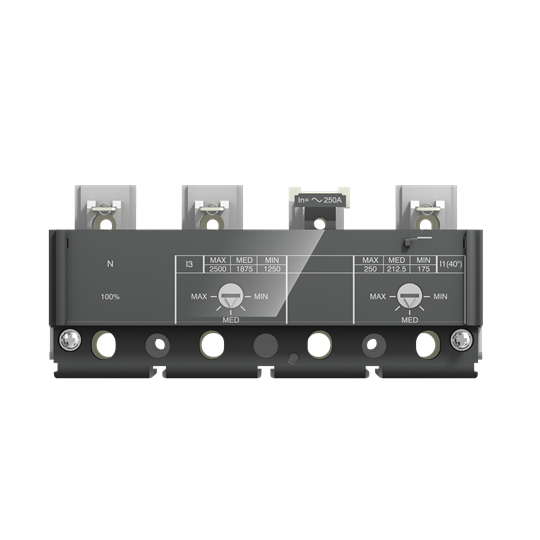

THERMOMAGNETIC RELEASE FOUR-POLE IN AC-DC TMD R 25-300 A XT4

Specifications

Ordering
E-Number (Finland):	3641128
EAN:	8015644013615
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85389099
Dimensions
Product Net Weight:	1 kg
Container Information
Package Level 1 Units:	box 1 piece
Package Level 1 Width:	162 mm
Package Level 1 Height:	92 mm
Package Level 1 Depth / Length:	100 mm
Package Level 1 Gross Weight:	1.1 kg
Package Level 1 EAN:	8015644013615
Environmental
RoHS Status:	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Additional Information
Circuit Breaker Type to be Associated:	Power Distribution
Configuration Type:	Loose or configurable
Current Type:	AC/DC
Number of Poles:	4
Order Multiple:	1 piece
Product Main Type:	Accessories for Tmax XT
Product Name:	Accessory
Product Type:	ACC
Rated Current (In):	25 A
Release:	TMD
Release Type:	Thermomagnetic
Standards:	IEC
Suitable For:	XT4
Suitable for Product Class:	SACE Tmax XT
Certificates and Declarations (Document Number)
Data Sheet, Technical Information:	1SDC210100D02051SDC210099D0205
Declaration of Conformity - CE:	Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals:	1SDH000721R0505
REACH Declaration:	9AKK108466A1425
RoHS Information:	9AKK108466A1424
Classifications
ETIM 6:	EC001023 - Shunt release (for power circuit breaker)
ETIM 7:	EC001023 - Shunt release (for power circuit breaker)
ETIM 8:	EC001023 - Shunt release (for power circuit breaker)
Object Classification Code:	Q
UNSPSC:	39120000
WEEE Category:	5. Small Equipment (No External Dimension More Than 50 cm)
