ABB

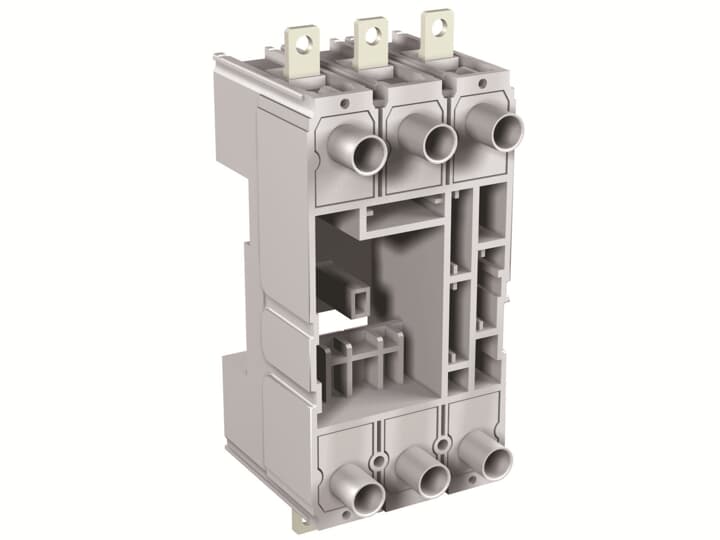

ABB Accessory XT1 P FP 3p EF 1SDA068183R1
ABB Accessory XT1 P FP 3p EF 1SDA068183R1
Regular price
R 672.50 ZAR
Regular price
R 1,222.73 ZAR
Sale price
R 672.50 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
FIXED PART PLUG-IN FOR C.BREAKER TMAX THREE-POLE WITH EXTENDED FRONT TERMINALS XT1
Specifications
| Ordering | |
|---|---|
| E-Number (Finland): | 3640546 |
| EAN: | 8015644020804 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Order Code US and Canada: | KXT1PFPEF-3 |
| Dimensions | |
| Product Net Weight: | 0.69 kg |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 120 mm |
| Package Level 1 Height: | 155 mm |
| Package Level 1 Depth / Length: | 190 mm |
| Package Level 1 Gross Weight: | 0.79 kg |
| Package Level 1 EAN: | 8015644020804 |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information | |
| Configuration Type: | Loose or configurable |
| Number of Poles: | 3 |
| Order Multiple: | 1 piece |
| Product Main Type: | Accessories for Tmax XT |
| Product Name: | Accessory |
| Product Type: | FP |
| Rated Frequency (f): | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Insulation Voltage (Ui): | 800 V |
| Rated Operational Voltage: | 690 V AC500 V DC |
| Rated Uninterrupted Current (Iu): | 160 A |
| Standards: | IEC, UL |
| Sub-type: | XT1 |
| Suitable For: | XT1 |
| Suitable for Product Class: | SACE Tmax XT |
| Terminal Connection Type: | Plug-In Circuit-BreakersFront Extended |
| Version: | P |
| Certificates and Declarations (Document Number) | |
| Data Sheet, Technical Information: | 1SDC210100D02061SDC210099D0206 |
| Declaration of Conformity - CE: | Refer to the EU Declaration of the relative Circuit Breaker |
| Environmental Information: | 9AKK107991A8215 |
| Instructions and Manuals: | 1SDH000719R0005 |
| REACH Declaration: | 9AKK108466A1425 |
| RoHS Information: | 9AKK108466A1424 |
| Classifications | |
| ETIM 6: | EC002043 - Chassis part power circuit breaker |
| ETIM 7: | EC002043 - Chassis part power circuit breaker |
| ETIM 8: | EC002043 - Chassis part power circuit breaker |
| Object Classification Code: | Q |
| UNSPSC: | 39120000 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
