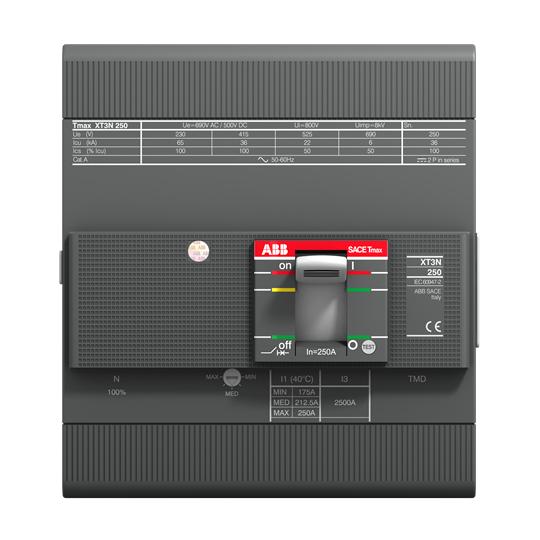

C.BREAKER TMAX XT3S 250 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 200-2000 A NEUTRAL = 50% PHASES
Specifications
Ordering
E-Number (Finland):
3641026
EAN:
8015644021337
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090
Order Code US and Canada:
XT3SEN200AFF000XXX
Dimensions
Product Net Width:
140 mm
Product Net Height:
150 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
2 kg
Container Information
Package Level 1 Units:
box 1 piece
Package Level 1 Width:
155 mm
Package Level 1 Height:
190 mm
Package Level 1 Depth / Length:
155 mm
Package Level 1 Gross Weight:
2.1 kg
Package Level 1 EAN:
8015644021337
Environmental
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Additional Information
Circuit Breaker Type to be Associated:
Power Distribution
Current Type:
AC/DC
Electrical Durability:
120 cycles per hour8000 cycle
Mechanical Durability:
Nr. Operations 240 cycles per hourNr. Operations 25000 cycle
Number of Poles:
4
Opening Time:
CB with SOR 15 msCB with UVR 15 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 13.2 W
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
CB
Rated Current (In):
200 A
Rated Frequency (f):
50 / 60 Hz
Rated Voltage (Ur):
690 V
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii):
2000 A
Rated Insulation Voltage (Ui):
800 V
Rated Operational Voltage:
690 V AC500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 42.5 kA(230 V AC) 42.5 kA(240 V AC) 42.5 kA(380 V AC) 27 kA(415 V AC) 27 kA(440 V AC) 20 kA(500 V AC) 15 kA(525 V AC) 10 kA(690 V AC) 3 kA(250 V DC) 2 Poles in Series 27 kA(500 V DC) 3 Poles in Series 37.5 kA
(220 V AC) 85 kA(230 V AC) 85 kA(240 V AC) 85 kA(380 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 40 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 6 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 50 kA
