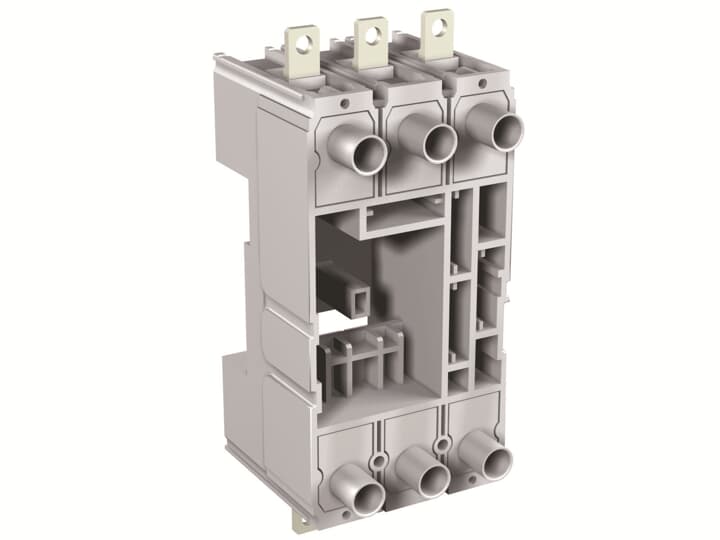

ABB Accessory XT2 P FP 3p EF 1SDA068187R1

FIXED PART PLUG-IN FOR C.BREAKER TMAX THREE-POLE WITH EXTENDED FRONT TERMINALS XT2

Specifications

Ordering
E-Number (Finland):	3640552
E-Number (Sweden):	3182031
EAN:	8015644020842
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85389099
Order Code US and Canada:	KXT2PFPEF-3
Dimensions
Product Net Weight:	0.9 kg
Container Information
Package Level 1 Units:	box 1 piece
Package Level 1 Width:	120 mm
Package Level 1 Height:	180 mm
Package Level 1 Depth / Length:	225 mm
Package Level 1 Gross Weight:	1 kg
Package Level 1 EAN:	8015644020842
Environmental
RoHS Status:	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Additional Information
Configuration Type:	Loose or configurable
Number of Poles:	3
Order Multiple:	1 piece
Product Main Type:	Accessories for Tmax XT
Product Name:	Accessory
Product Type:	FP
Rated Frequency (f):	50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp):	8 kV
Rated Insulation Voltage (Ui):	1000 V
Rated Operational Voltage:	690 V AC500 V DC
Rated Uninterrupted Current (Iu):	160 A
Standards:	IEC, UL
Sub-type:	XT2
Suitable For:	XT2
Suitable for Product Class:	SACE Tmax XT
Terminal Connection Type:	Plug-In Circuit-BreakersFront Extended
Version:	P
Certificates and Declarations (Document Number)
Data Sheet, Technical Information:	1SDC210100D02061SDC210099D0206
Declaration of Conformity - CE:	Refer to the EU Declaration of the relative Circuit Breaker
Environmental Information:	9AKK107991A8215
Instructions and Manuals:	1SDH000721R0005
REACH Declaration:	9AKK108466A1425
RoHS Information:	9AKK108466A1424
Classifications
ETIM 6:	EC002043 - Chassis part power circuit breaker
ETIM 7:	EC002043 - Chassis part power circuit breaker
ETIM 8:	EC002043 - Chassis part power circuit breaker
Object Classification Code:	Q
UNSPSC:	39120000
WEEE Category:	5. Small Equipment (No External Dimension More Than 50 cm)
