ABB

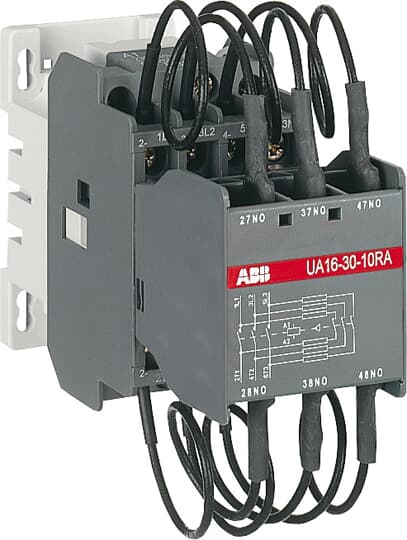

ABB UA16-30-10RA 380-400V 50Hz / 400-415V 60Hz Contactor 1SBL181024R8510
ABB UA16-30-10RA 380-400V 50Hz / 400-415V 60Hz Contactor 1SBL181024R8510
Regular price
R 1,373.59 ZAR
Regular price
R 2,572.36 ZAR
Sale price
R 1,373.59 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
UA16..RA 3-pole contactors for capacitor switching, can be used in installations in which the peak current far exceeds 100 times nominal rms current. The contactors are delivered complete with their damping resistors and must be used without additional inductances (see table below). The capacitors must be discharged (maximum residual voltage at terminals ≤ 50 V) before being re-energized when the contactors are making. Their electrical durability is 250 000 operating cycles for Ue < 500 V and 100 000 operating cycles for 500 V ≤ Ue ≤ 690 V. The UA..RA contactors are fitted with a special front mounted block, which ensures the serial insertion of 3 damping resistors into the circuit to limit the current peak on energization of the capacitor bank. Their connection also ensures capacitor precharging in order to limit the second current peak occurring upon making of the main poles. The insertion of resistors allows to damp the highest current peak of the capacitor when switching on, whatever its level. The UA..RA series 3-pole contactors are of the block type design. - Main poles and auxiliary contacts: 3 main poles, 1 built-in auxiliary contact - Control circuit: AC operated with laminated magnet circuit - Accessories: a wide range of accessories is available.
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC101140C0203 |
| Instructions and Manuals: | 1SBC101002M5501 |
| Dimension Diagram: | FPTE307847 |
| Dimensions | |
| Product Net Width: | 44 mm |
| Product Net Depth / Length: | 107 mm |
| Product Net Height: | 120 mm |
| Product Net Weight: | 0.46 kg |
| Technical | |
| Number of Main Contacts NO: | 3 |
| Number of Main Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 1 |
| Number of Auxiliary Contacts NC: | 0 |
| Rated Operational Voltage: | Auxiliary Circuit 690 VMain Circuit 690 V |
| Rated Frequency (f): | Supply Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith): | acc. to IEC 60947-5-1, q = 40 °C 16 A |
| Rated Operational Power AC-6b (Pe): | (230 / 240 V) 40 °C, 50 / 60 Hz 8 kvar(230 / 240 V) 55 °C, 50 / 60 Hz 7.5 kvar(230 / 240 V) 70 °C, 50 / 60 Hz 6 kvar(400 / 415 V) 40 °C, 50 / 60 Hz 12.5 kvar(400 / 415 V) 70 °C, 50 / 60 Hz 10 kvar(400 / 415 V) 55 °C, 50 / 60 Hz 12.5 kvar(440 V) 40 °C, 50 / 60 Hz 15 kvar(440 V) 55 °C, 50 / 60 Hz 13 kvar(440 V) 70 °C, 50 / 60 Hz 11 kvar(500 / 550 V), 40 °C, 50 / 60 Hz 18 kvar(500 / 550 V) 55 °C, 50 / 60 Hz 16 kvar(500 / 550 V) 70 °C, 50 / 60 Hz 12.5 kvar(690 V) 40 °C, 50 / 60 Hz 22 kvar(690 V) 55 °C, 50 / 60 Hz 21 kvar(690 V) 70 °C, 50 / 60 Hz 17 kvar |
| Rated Operational Current AC-15 (Ie): | (500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(380 / 400 V) 3 A |
| Short-Circuit Protective Devices: | Auxiliary Circuit - gG Type Fuses 10 AgG Type Fuses 80 A |
| Maximum Breaking Capacity: | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 90 A |
| Maximum Electrical Switching Frequency: | 240 cycles per hour |
| Rated Operational Current DC-13 (Ie): | (24 V) 6 / 144 A(48 V) 2.8 / 134 A(72 V) 2 / 144 A(125 V) 1.1 / 138 A(250 V) 0.55 / 138 A |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Control Circuit Voltage (Uc): | 50 Hz 380 ... 400 V60 Hz 400 ... 415 V |
| Coil Consumption: | Average Holding Value 50 / 60 Hz 8 V·AAverage Holding Value 50 Hz 8 V·AAverage Holding Value 60 Hz 8 V·AAverage Pull-in Value 50 Hz 70 V·AAverage Pull-in Value 60 Hz 80 V·A |
| Operate Time: | Between Coil De-energization and NO Contact Opening 4 ... 11 msBetween Coil Energization and NO Contact Closing 10 ... 26 ms |
| Mounting on DIN Rail: | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting by Screws (not supplied): | 2 x M4 screws placed diagonally |
| Connecting Capacity Main Circuit: | Flexible with Cable End 0.75 ... 2.5 mm²Rigid Cable 1 ... 4 mm² |
| Connecting Capacity Auxiliary Circuit: | Flexible with Cable End 0.75 ... 2.5 mm²Rigid Cable 1 ... 4 mm² |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Connecting Terminals (delivered in open position) Main Poles: | M 3.5 (+,-) pozidriv 2 screws with cable clamp |
| Terminal Type: | Screw Terminals |
| Environmental | |
| Ambient Air Temperature: | Close to Contactor for Storage -60 ... +80 °CNear Contactor for Operation in Free Air (0.85 ... 1.1 Uc) -40 ... 55 °CNear Contactor for Operation in Free Air (Uc) -40 ... 70 °C |
| Climatic Withstand: | acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II |
| Maximum Operating Altitude Permissible: | Without Derating 3000 m |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| CB Certificate: | CB_CN44756 |
| CCC Certificate: | CCC_2018010304059154 |
| CQC Certificate: | CQC2004010304138319CQC2018010304059153CQC2018010304059154CQC2007010304257961 |
| CSA Certificate: | CSA_1041746 |
| Declaration of Conformity - CCC: | 2020980304001605202098030400161820209803040016192020980304001218 |
| Declaration of Conformity - CE: | 1SBD250805U1000 |
| Declaration of Conformity - UKCA: | 1SBD250822U1000 |
| Environmental Information: | 1SBD250123E1000 |
| GOST Certificate: | GOST_POCCFRME77B07175 |
| Instructions and Manuals: | 1SBC101002M5501 |
| RoHS Information: | 1SBD250805U1000 |
| UL Certificate: | UL_20160205-E312527-10-2 |
| UL Listing Card: | UL_E312527 |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 135 mm |
| Package Level 1 Depth / Length: | 155 mm |
| Package Level 1 Height: | 63 mm |
| Package Level 1 Gross Weight: | 0.46 kg |
| Package Level 1 EAN: | 3471522300850 |
| Package Level 2 Units: | box 63 piece |
| Package Level 2 Width: | 300 mm |
| Package Level 2 Depth / Length: | 245 mm |
| Package Level 2 Height: | 308 mm |
| Package Level 2 Gross Weight: | 28.98 kg |
| Package Level 3 Units: | 260 piece |
| Classifications | |
| Object Classification Code: | Q |
| ETIM 4: | EC001079 - Capacitor magnet contactor |
| ETIM 5: | EC001079 - Capacitor magnet contactor |
| ETIM 6: | EC001079 - Capacitor contactor |
| ETIM 7: | EC001079 - Capacitor contactor |
| ETIM 8: | EC001079 - Capacitor contactor |
| eClass: | V11.0 : 27371006 |
| UNSPSC: | 39121529 |
