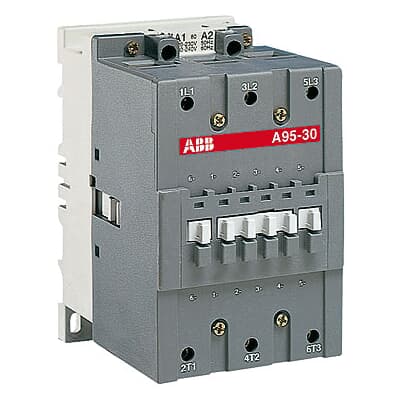

ABB UA95-30-00RA 110V 50Hz Contactor 1SFL431024R8400

A 3-phase Contactor suitable for Capacitor switching application. Maximum permissible peak current 100 times the nominal RMS current. Operated with a control voltage, versions from 240V-690 V

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85364900
Popular Downloads
Data Sheet, Technical Information:	1SBC101145L0202
Instructions and Manuals:	5309660-60
Dimensions
Product Net Width:	90 mm
Product Net Depth / Length:	155.6 mm
Product Net Height:	170 mm
Product Net Weight:	1.8 kg
Technical
Number of Main Contacts NO:	3
Number of Main Contacts NC:	0
Number of Auxiliary Contacts NO:	0
Number of Auxiliary Contacts NC:	0
Rated Operational Voltage:	Main Circuit 1000 V
Rated Frequency (f):	Main Circuit 50 Hz
Conventional Free-air Thermal Current (Ith):	acc. to IEC 60947-4-1, Open Contactors q = 40 °C 145 A
Rated Operational Current AC-1 (Ie):	(690 V) 40 °C 145 A(690 V) 55 °C 135 A(690 V) 60 °C 135 A(690 V) 70 °C 115 A
Rated Operational Current AC-3 (Ie):	(415 V) 55 °C 96 A(440 V) 55 °C 93 A(500 V) 55 °C 80 A(690 V) 55 °C 65 A(1000 V) 55 °C 30 A(380 / 400 V) 55 °C 96 A(220 / 230 / 240 V) 55 °C 96
Rated Operational Power AC-3 (Pe):	(380 / 400 V) 45 kW
Rated Operational Power AC-6b (Pe):	(230 / 240 V) 40 °C, 50 / 60 Hz 40 kvar(230 / 240 V) 55 °C, 50 / 60 Hz 35 kvar(230 / 240 V) 70 °C, 50 / 60 Hz 30 kvar(400 / 415 V) 40 °C, 50 / 60 Hz 70 kvar(400 / 415 V) 70 °C, 50 / 60 Hz 53 kvar(400 / 415 V) 55 °C, 50 / 60 Hz 60 kvar(440 V) 40 °C, 50 / 60 Hz 75 kvar(440 V) 55 °C, 50 / 60 Hz 65 kvar(440 V) 70 °C, 50 / 60 Hz 58 kvar(500 / 550 V), 40 °C, 50 / 60 Hz 85 kvar(500 / 550 V) 55 °C, 50 / 60 Hz 75 kvar(500 / 550 V) 70 °C, 50 / 60 Hz 70 kvar(690 V) 40 °C, 50 / 60 Hz 120 kvar(690 V) 55 °C, 50 / 60 Hz 105 kvar(690 V) 70 °C, 50 / 60 Hz 85 kvar
Rated Breaking Capacity AC-3:	8 x Ie AC-3
Rated Making Capacity AC-3:	10 x Ie AC-3
Maximum Breaking Capacity:	cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1160 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 800 A
Maximum Electrical Switching Frequency:	(AC-1) 300 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 300 cycles per hour
Rated Insulation Voltage (Ui):	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp):	Main Circuit 8 kV
Mechanical Durability:	10 million
Maximum Mechanical Switching Frequency:	3600 cycles per hour
Coil Operating Limits:	(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc):	50 Hz 110 V60 Hz 110 ... 120 V
Coil Consumption:	Holding at Max. Rated Control Circuit Voltage 50 Hz 22 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 26 V·APull-in at Max. Rated Control Circuit Voltage 50 Hz 350 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 450 V·A
Operate Time:	Between Coil De-energization and NC Contact Closing 7 ... 15 msBetween Coil Energization and NO Contact Closing 10 ... 25 ms
Connecting Capacity Main Circuit:	Bar 30 mm²Flexible with Cable End 2 x 6 ... 35 mm²Rigid 1 x 10 ... 95 mm²
Connecting Capacity Auxiliary Circuit:	Flexible with Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²Flexible 2x0.75 ... 2.5 mm²Solid 1 x 1 ... 4 mm²Stranded 2 x 1 .... 4 mm²
Degree of Protection:	acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Connecting Terminals (delivered in open position) Main Poles:	M8 hexagon socket screw with single connector
Terminal Type:	Cable Clamp
Technical UL/CSA
Maximum Operating Voltage UL/CSA:	Main Circuit 600 V
Environmental
Ambient Air Temperature:	Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C
Maximum Operating Altitude Permissible:	Without Derating 3000 m
Resistance to Shock acc. to IEC 60068-2-27:	Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: A 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: A 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: B1 15 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: C1 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: C2 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: B1 5 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: B2 15 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: C1 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: C2 20 g
RoHS Status:	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Certificates and Declarations (Document Number)
CB Certificate:	SE-72476
cULus Certificate:	20160916- E36588
Declaration of Conformity - CE:	2CMT2015-005436
Declaration of Conformity - UKCA:	2CMT2020-006118
Environmental Information:	1SFC101001D0201
Instructions and Manuals:	5309660-60
RoHS Information:	2CMT2015-005436
Container Information
Package Level 1 Units:	box 1 piece
Package Level 1 Width:	170 mm
Package Level 1 Depth / Length:	140 mm
Package Level 1 Height:	170 mm
Package Level 1 Gross Weight:	2 kg
Package Level 1 EAN:	7320500260517
Classifications
Object Classification Code:	Q
ETIM 4:	EC001079 - Capacitor magnet contactor
ETIM 5:	EC001079 - Capacitor magnet contactor
ETIM 6:	EC001079 - Capacitor contactor
ETIM 7:	EC001079 - Capacitor contactor
ETIM 8:	EC001079 - Capacitor contactor
eClass:	V11.0 : 27371006
UNSPSC:	39121529
IDEA Granular Category Code (IGCC):	4756 >> Capacitor magnet contactor
