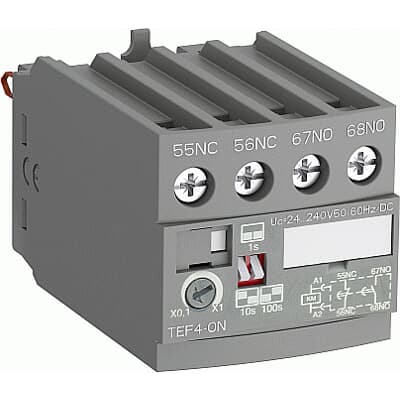

ABB TEF4-ON Frontal Electronic Timer 1SBN020112R1000
ABB TEF4-ON Frontal Electronic Timer 1SBN020112R1000
Regular price
R 659.90 ZAR
Regular price
R 1,235.81 ZAR
Sale price
R 659.90 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
TEF4 frontal electronic timers are used for realizing timing function and are available in ON-delay and OFF-delay versions.Compact solution in cabinet compared to separate timersTEF4 electronic timers are front-mounted and locked on AF contactors or NF contactor relays.A mechanical indicator allows to show the state of the contactor.Safe and cost-reduced wiring. TEF4 electronic timers are supplied by a direct plug-in parallel connection to the coil terminals A1 - A2 of the contactor or contactor relay. A varistor is integrated on the timer to offer a built-in protection against surges in the contactor coil.Available for a wide control voltage range 24...240 V AC/DCTEF4-ON or TEF4-OFF allow time-delayed functions up to 100 s in 3 distinct time ranges, independently of the control system. The time delay ranges are selected by a switch and the time delay can be adjusted by means of a rotary switch. The timing function is activated by closing or opening the device on which the timer is mounted. The OFF-delay version operates without additional control supply.
Specifications
| Technical | |
|---|---|
| Suitable For: | AF09AF09ZAF12AF12ZAF16AF16ZAF26AF26ZAF30AF30ZAF38AF38ZAF40AF52AF65AF80AF96AFC09AFC12AFC16AFC26AFC30AFC38NF22ENFZ22ENF31ENFZ31ENF40ENFZ40ENFC22ENFC31ENFC40E |
| Rated Operational Voltage: | Auxiliary Circuit 240 V ACAuxiliary Circuit 24 V DC |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 400 Vacc. to UL/CSA 300 V |
| Rated Impulse Withstand Voltage (Uimp): | 4 kV |
| Rated Operational Current AC-15 (Ie): | (24 / 127 V) 3 A(220 / 240 V) 1.5 A |
| Rated Short-time Withstand Current Low Voltage (Icw): | for 0.1 s 8 Afor 1 s 8 A |
| Rated Frequency (f): | Auxiliary Circuit 50 / 60 Hz |
| Number of Auxiliary Contacts NC: | 1 |
| Number of Auxiliary Contacts NO: | 1 |
| Number of Auxiliary Contacts CO (SPDT): | 0 |
| Tightening Torque: | Auxiliary Circuit 1.2 N·m |
| Timer Relay Type: | ON-Delay |
| Mounting Position: | Mounting positions 1, 1 +/- 30°, 2, 3, 4, 5 |
| Terminal Type: | Screw Terminals |
| Environmental | |
| Ambient Air Temperature: | Close to Contactor for Storage -40 ... +80 °COperation -25 ... +70 °C |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Maximum Operating Altitude Permissible: | Without Derating 2000 m |
| Resistance to Vibrations acc. to IEC 60068-2-6: | 5 ... 300 Hz 3 g Closed position / 2 g Open position |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 1SBD250192E1000 |
| Technical UL/CSA | |
| Tightening Torque UL/CSA: | Auxiliary Circuit 11 in·lb |
| Pilot Duty UL/CSA: | B300R300 |
| Dimensions | |
| Product Net Width: | 43 mm |
| Product Net Height: | 41.6 mm |
| Product Net Depth / Length: | 67.7 mm |
| Product Net Weight: | 0.065 kg |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 82 mm |
| Package Level 1 Height: | 51 mm |
| Package Level 1 Depth / Length: | 56 mm |
| Package Level 1 Gross Weight: | 0.065 kg |
| Package Level 1 EAN: | 3471523130630 |
| Package Level 2 Units: | box 80 piece |
| Package Level 2 Width: | 254 mm |
| Package Level 2 Height: | 200 mm |
| Package Level 2 Depth / Length: | 319 mm |
| Package Level 2 Gross Weight: | 5.2 kg |
| Ordering | |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389091 |
| E-Number (Finland): | 3706012 |
| E-Number (Sweden): | 3210205 |
| Certificates and Declarations (Document Number) | |
| ABS Certificate: | ABS_20-2060694-PDA |
| CB Certificate: | CB_CN46281 |
| CCC Certificate: | CCC_2012010303572179 |
| CQC Certificate: | CQC2012010303572179 |
| Declaration of Conformity - CCC: | 2020980303000172 |
| Declaration of Conformity - CE: | 1SBD250008U1000 |
| Declaration of Conformity - UKCA: | 1SBD250039U1000 |
| Environmental Information: | 1SBD250192E1000 |
| Instructions and Manuals: | 1SBC101026M6801 |
| RoHS Information: | 1SBD250008U1000 |
| UL Certificate: | UL_20120717_E252354 |
| UL Listing Card: | UL_E252354 |
| Popular Downloads | |
| Instructions and Manuals: | 1SBC101026M6801 |
| UL Listing Card: | UL_E252354 |
| Classifications | |
| ETIM 7: | EC002060 - Timer block |
| ETIM 8: | EC002060 - Timer block |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 8538 90 91 |
| UNSPSC: | 39121500 |
| eClass: | V11.0 : 27371308 |
| Object Classification Code: | K |
