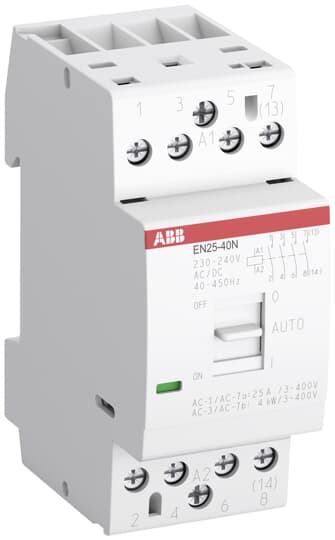

ABB EN25-40N-01 Installation Contactor 1SAE232111R0140
ABB EN25-40N-01 Installation Contactor 1SAE232111R0140
Regular price
R 476.82 ZAR
Regular price
R 892.96 ZAR
Sale price
R 476.82 ZAR
Unit price
/
per
Shipping calculated at checkout.
Pickup available at 31 Cardiff Avenue, Apex, Benoni, Gauteng, 1540, South Africa
Usually ready in 24 hours
The EN25..N installation contactors are used to control single and three-phase loads up to 25 A and can be operated by AC or DC and/or manually.These contactors are made for use in household applications as well as in industrial environments.The following benefits are provided:Hum-free operation, low power consumption, integrated overvoltage protection and manual override.Various contact combinations and accessories are available.Manual operation is available in 3 states: "On", "Off", "Auto"
Specifications
| Ordering | |
|---|---|
| Package Level 1 EAN: | 4013614524431 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Popular Downloads | |
| Instructions and Manuals: | 2CDC103043M6801 |
| Dimensions | |
| Product Net Width: | 36 mm |
| Product Net Height: | 85 mm |
| Product Net Depth / Length: | 65 mm |
| Product Net Weight: | 0.25 kg |
| Technical | |
| Rated Operational Voltage: | Main Circuit 220 V DCMain Circuit 400 V AC |
| Rated Control Circuit Voltage (Uc): | 24 V |
| Rated Frequency (f): | Control Circuit 400 HzControl Circuit 50 HzControl Circuit 60 HzControl Circuit DCMain Circuit 50 HzMain Circuit 60 HzMain Circuit DC |
| Rated Operational Current AC-1 (Ie): | (NO) 25 A |
| Rated Operational Current AC-3 (Ie): | (230 V) Single Phase, NO 9 A(400 V) Three Phase, NO 9 A |
| Rated Operational Power AC-1 (Pe): | (230 V) Single Phase, NO 5.8 kW(400 V) Three Phase, NO 17.3 kW |
| Rated Operational Power AC-3 (Pe): | (230 V) Single Phase, NO 1.3 kW(400 V) Three Phase, NO 4 kW |
| Rated Operational Current AC-7a (Ie): | (NO) 25 A |
| Rated Operational Power AC-7a (Pe): | (230 V) Single Phase, NO 5.8 kW(400 V) Three Phase, NO 17.3 kW |
| Rated Operational Current AC-7b (Ie): | (230 V) Single Phase, NO 9 A(400 V) Three Phase, NO 9 A |
| Rated Operational Power AC-7b (Pe): | (230 V) Single Phase, NO 1.3 kW(400 V) Three Phase, NO 4 kW |
| Recommended Screw Driver: | Control Circuit Pozidriv 1Main Circuit Pozidriv 1 |
| Rated Impulse Withstand Voltage (Uimp): | 4 kV |
| Rated Insulation Voltage (Ui): | 500 V |
| Connecting Capacity Main Circuit: | Flexible with Ferrule 1x 1.5 ... 10 mm²Flexible with Ferrule 2x 1.5 ... 2.5 mm²Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²Flexible with Insulated Ferrule 2x 1.5 mm²Flexible 1x 1.5 ... 10 mm²Flexible 2x 1.5 ... 4 mm²Rigid 1x 1.5 ... 10 mm²Rigid 2x 1.5 ... 4 mm² |
| Connecting Capacity Control Circuit: | Flexible with Ferrule 1x 1 ... 2.5 mm²Flexible with Ferrule 2x 0.75 ... 1.5 mm²Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²Flexible 1x 1 ... 2.5 mm²Flexible 2x 1 ... 1.5 mm²Rigid 1x 1 ... 4 mm²Rigid 2x 1 ... 2.5 mm² |
| Tightening Torque: | Control Circuit 0.9 N·mMain Circuit 1 N·m |
| Wire Stripping Length: | Control Circuit 7 mmMain Circuit 10 mm |
| Degree of Protection: | IP20 |
| Electrical Durability: | AC-1 (NO) 130000 cycleAC-3 (NO) 500000 cycleAC-7a (NO) 130000 cycleAC-7b (NO) 500000 cycle |
| Mechanical Durability: | 1000000 cycle |
| Number of Poles: | 4 |
| Number of Auxiliary Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 0 |
| Number of Main Contacts NC: | 0 |
| Number of Main Contacts NO: | 4 |
| Width in Number of Modular Spacings: | 2 |
| Pollution Degree: | 3 |
| Standards: | IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 61095UL 60947-1UL 60947-4-1 |
| Environmental | |
| Ambient Air Temperature: | Operation -25 ... +55 °CStorage -40 ... +80 °C |
| Maximum Operating Altitude Permissible: | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27: | 11 ms Pulse 15g |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| CB Certificate: | 1SAA920004-2001 |
| CQC Certificate: | CQC2017010304993564 |
| Declaration of Conformity - CCC: | 2020980304001312 |
| Declaration of Conformity - CE: | 1SAD938506-0302 |
| Declaration of Conformity - UKCA: | 1SAD938501-1302 |
| EAC Certificate: | 1SAA920001-2702 |
| Environmental Information: | 1SAC200063H0009 |
| Instructions and Manuals: | 2CDC103043M6801 |
| NF Certificate: | 1SAA920001-1202 |
| RMRS Certificate: | 1SAA920000-0705 |
| RoHS Information: | 1SAD938506-0302 |
| Container Information | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 69.5 mm |
| Package Level 1 Depth / Length: | 39 mm |
| Package Level 1 Gross Weight: | 0.25 kg |
| Package Level 1 EAN: | 4013614524431 |
| Package Level 2 Units: | 48 piece |
| Package Level 2 Width: | 280 mm |
| Package Level 2 Height: | 210 mm |
| Package Level 2 Depth / Length: | 395 mm |
| Package Level 2 Gross Weight: | 12.5 kg |
| Package Level 2 EAN: | 4013614538827 |
| Classifications | |
| Object Classification Code: | Q |
| ETIM 5: | EC001653 - Installation contactor for distribution board |
| ETIM 6: | EC001653 - Installation contactor for distribution board |
| ETIM 7: | EC001653 - Installation contactor for distribution board |
| eClass: | V11.0 : 27142308 |
| UNSPSC: | 39121529 |
| IDEA Granular Category Code (IGCC): | 4759 >> Installation contactor for distribution board |
| E-Number (Finland): | 3707805 |
| ETIM 8: | EC001653 - Installation contactor for distribution board |
