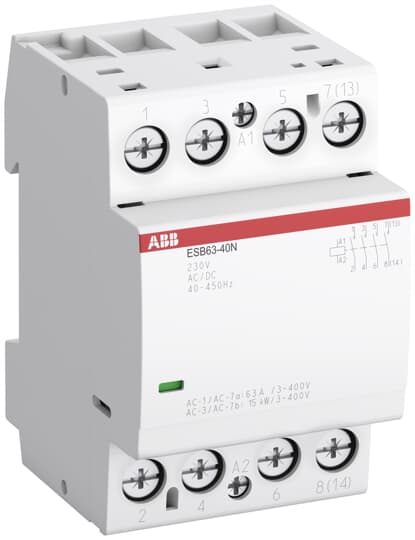

| Ordering |
|---|
| Package Level 1 EAN: |
4013614525520 |
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85365080 |
| Popular Downloads |
|---|
| Instructions and Manuals: |
2CDC103043M6801 |
| Dimensions |
|---|
| Product Net Width: |
54 mm |
| Product Net Height: |
85 mm |
| Product Net Depth / Length: |
65 mm |
| Product Net Weight: |
0.385 kg |
| Technical |
|---|
| Rated Operational Voltage: |
Main Circuit 220 V DCMain Circuit 400 V AC |
| Rated Control Circuit Voltage (Uc): |
230 V |
| Rated Frequency (f): |
Control Circuit 400 HzControl Circuit 50 HzControl Circuit 60 HzControl Circuit DCMain Circuit 50 HzMain Circuit 60 HzMain Circuit DC |
| Rated Operational Current AC-1 (Ie): |
(NO) 63 A |
| Rated Operational Current AC-3 (Ie): |
(230 V) Single Phase, NO 30 A(400 V) Three Phase, NO 30 A |
| Rated Operational Power AC-1 (Pe): |
(230 V) Single Phase, NO 14.5 kW(400 V) Three Phase, NO 43.6 kW |
| Rated Operational Power AC-3 (Pe): |
(230 V) Single Phase, NO 5 kW(400 V) Three Phase, NO 15 kW |
| Rated Operational Current AC-7a (Ie): |
(NO) 63 A |
| Rated Operational Power AC-7a (Pe): |
(230 V) Single Phase, NO 14.5 kW(400 V) Three Phase, NO 43.6 kW |
| Rated Operational Current AC-7b (Ie): |
(230 V) Single Phase, NO 30 A(400 V) Three Phase, NO 30 A |
| Rated Operational Power AC-7b (Pe): |
(230 V) Single Phase, NO 5 kW(400 V) Three Phase, NO 15 kW |
| Recommended Screw Driver: |
Control Circuit Pozidriv 1Main Circuit Pozidriv 2 |
| Rated Impulse Withstand Voltage (Uimp): |
6 kV |
| Rated Insulation Voltage (Ui): |
500 V |
| Connecting Capacity Main Circuit: |
Flexible with Ferrule 1x 1.5 ... 16 mm?Ã’½Flexible with Ferrule 2x 1.5 ... 10 mm?Ã’½Flexible with Insulated Ferrule 1x 1.5 ... 16 mm?Ã’½Flexible with Insulated Ferrule 2x 1.5 ... 10 mm?Ã’½Flexible 2x 1.5 ... 10 mm?Ã’½Flexible 1x 1.5 ... 16 mm?Ã’½Rigid 1x 1.5 ... 25 mm?Ã’½Rigid 2x 1.5 ... 10 mm?Ã’½ |
| Connecting Capacity Control Circuit: |
Flexible with Ferrule 1x 0.75 ... 2.5 mm?Ã’½Flexible with Ferrule 2x 0.75 ... 1.0 mm?Ã’½Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm?Ã’½Flexible with Insulated Ferrule 2x 0.75 ... 1 mm?Ã’½Flexible 1x 1 ... 4.0 mm?Ã’½Flexible 2x 1 ... 2.5 mm?Ã’½Rigid 1x 1 ... 4 mm?Ã’½Rigid 2x 1 ... 2.5 mm?Ã’½ |
| Tightening Torque: |
Control Circuit 0.9 N?Ã’ºmMain Circuit 2.5 N?Ã’ºm |
| Wire Stripping Length: |
Control Circuit 7 mmMain Circuit 13 mm |
| Degree of Protection: |
IP20 |
| Electrical Durability: |
AC-1 (NO) 100000 cycleAC-3 (NO) 240000 cycleAC-7a (NO) 100000 cycleAC-7b (NO) 240000 cycle |
| Mechanical Durability: |
1000000 cycle |
| Number of Poles: |
3 |
| Number of Auxiliary Contacts NC: |
0 |
| Number of Auxiliary Contacts NO: |
0 |
| Number of Main Contacts NC: |
0 |
| Number of Main Contacts NO: |
3 |
| Width in Number of Modular Spacings: |
3 |
| Pollution Degree: |
3 |
| Standards: |
IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 61095UL 60947-1UL 60947-4-1 |
| Technical UL/CSA |
|---|
| Maximum Operating Voltage UL/CSA: |
Main Circuit 480 V AC |
| Horsepower Rating UL/CSA: |
(220 ... 240 V AC) Single Phase, NO 5 Hp(220 ... 240 V AC) Three Phase, NO 10 Hp(440 ... 480 V AC) Single Phase, NO 7.5 Hp(440 ... 480 V AC) Three Phase, NO 15 Hp |
| Connecting Capacity Main Circuit UL/CSA: |
Solid 16-4 AWGStranded 16-4 AWG |
| Connecting Capacity Control Circuit UL/CSA: |
Solid 16-10 AWGStranded 16-10 AWG |
| Tightening Torque UL/CSA: |
Control Circuit 8 in?Ã’ºlbMain Circuit 20 in?Ã’ºlb |
| Environmental |
|---|
| Ambient Air Temperature: |
Operation -25 ... +55 ?Ã’¸CStorage -40 ... +80 ?Ã’¸C |
| Maximum Operating Altitude Permissible: |
2000 m |
| Resistance to Shock acc. to IEC 60068-2-27: |
11 ms Pulse 15g |
| RoHS Status: |
Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) |
|---|
| ABS Certificate: |
1SAA920000-0101 |
| CB Certificate: |
1SAA920005-2001 |
| CQC Certificate: |
CQC2017010304993562CQC2017010304993563
|
| cULus Certificate: |
cUL_E191658 |
| Declaration of Conformity - CCC: |
20209803040013102020980304001313
|
| Declaration of Conformity - CE: |
1SAD938506-0302 |
| Declaration of Conformity - UKCA: |
1SAD938501-1302 |
| DNV Certificate: |
1SAA920000-0306 |
| EAC Certificate: |
1SAA920001-2702 |
| Environmental Information: |
1SAC200065H0009 |
| Instructions and Manuals: |
2CDC103043M6801 |
| RINA Certificate: |
1SAA920000-0801 |
| RMRS Certificate: |
1SAA920000-0705 |
| RoHS Information: |
1SAD938506-0302 |
| Container Information |
|---|
| Package Level 1 Units: |
1 piece |
| Package Level 1 Width: |
92 mm |
| Package Level 1 Height: |
69.5 mm |
| Package Level 1 Depth / Length: |
57 mm |
| Package Level 1 Gross Weight: |
0.385 kg |
| Package Level 1 EAN: |
4013614525520 |
| Package Level 2 Units: |
34 piece |
| Package Level 2 Width: |
280 mm |
| Package Level 2 Height: |
210 mm |
| Package Level 2 Depth / Length: |
395 mm |
| Package Level 2 Gross Weight: |
13.6 kg |
| Package Level 2 EAN: |
4013614539923 |
| Classifications |
|---|
| Object Classification Code: |
Q |
| ETIM 5: |
EC001653 - Installation contactor for distribution board |
| ETIM 6: |
EC001653 - Installation contactor for distribution board |
| ETIM 7: |
EC001653 - Installation contactor for distribution board |
| eClass: |
V11.0 : 27142308 |
| UNSPSC: |
39121529 |
| IDEA Granular Category Code (IGCC): |
4759 >> Installation contactor for distribution board |
| E-Number (Finland): |
3707593 |
| ETIM 8: |
EC001653 - Installation contactor for distribution board |
