ABB EH04-11N Auxiliary Contact 1SAE901901R1011
ABB EH04-11N Auxiliary Contact 1SAE901901R1011
Regular price
R 122.33 ZAR
Regular price
R 229.09 ZAR
Sale price
R 122.33 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

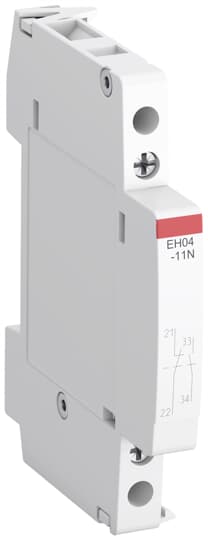

The EH04 are auxiliary contact blocks which can be used in combination with all the new ESB..N and EN..N installation contactors.These devices are available in 2 different contact configurations and no tool is needed for their assembling.
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85369010 |
| Popular Downloads | |
| Instructions and Manuals: | 2CDC103043M6801 |
| Dimensions | |
| Product Net Width: | 9 mm |
| Product Net Depth / Length: | 65 mm |
| Product Net Height: | 85 mm |
| Product Net Weight: | 0.04 kg |
| Technical | |
| Rated Operational Voltage: | Auxiliary Circuit 500 V AC |
| Rated Frequency (f): | Auxiliary Circuit 50 HzAuxiliary Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp): | Auxiliary Circuit 4 kV |
| Rated Insulation Voltage (Ui): | 500 V |
| Number of Poles: | 2 |
| Degree of Protection: | IP20 |
| Tightening Torque: | Auxiliary Circuit 0.9 N·m |
| Wire Stripping Length: | Auxiliary Circuit, Top Terminals (1x 1.5) 7 mmAuxiliary Circuit, Top Terminals (1x 2.5 ... 4) 17 mmAuxiliary Circuit, Top Terminals (2x 1.5) 17 mmAuxiliary Circuit, Bottom Terminals (1x 1.5) 7 mmAuxiliary Circuit, Bottom Terminals (1x 2.5 ... 4) 9 mmAuxiliary Circuit, Bottom Terminals (2x 1.5) 9 mm |
| Recommended Screw Driver: | Auxiliary Circuit Pozidriv 1 |
| Standards: | IEC/EN 60947-5-1 |
| Number of Auxiliary Contacts NC: | 1 |
| Number of Auxiliary Contacts NO: | 1 |
| Number of Main Contacts NC: | 0 |
| Number of Main Contacts NO: | 0 |
| Product Name: | Auxiliary Contact |
| Suitable For: | ESB16..NESB20..NESB25..NESB40..NESB63..NEN20..NEN25..NEN40..NESB100..N |
| Suitable for Product Class: | Installation Contactors |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | 600 V AC |
| Connecting Capacity Auxiliary Circuit UL/CSA: | Stranded 18-12 AWG |
| Tightening Torque UL/CSA: | Auxiliary Circuit 8 in·lb |
| Environmental | |
| Ambient Air Temperature: | Operation -25 ... +55 °CStorage -40 ... +80 °C |
| Conventional Free-air Thermal Current (Ith): | Auxiliary Circuit 6 A |
| Maximum Operating Altitude Permissible: | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27: | 11 ms Pulse 15g |
| Resistance to Vibrations acc. to IEC 60068-2-6: | 5g / 3 ... 150 Hz |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| ABS Certificate: | 1SAA920000-0101 |
| CB Certificate: | 1SAA920006-2001 |
| CQC Certificate: | CQC2017010304980330 |
| cULus Certificate: | cUL_E191658 |
| Declaration of Conformity - CCC: | 2020980305001265 |
| Declaration of Conformity - CE: | 1SAD938506-0302 |
| Declaration of Conformity - UKCA: | 1SAD938501-1302 |
| DNV Certificate: | 1SAA920000-0306 |
| EAC Certificate: | 1SAA920002-2701 |
| Instructions and Manuals: | 2CDC103043M6801 |
| RINA Certificate: | 1SAA920000-0801 |
| RoHS Information: | 1SAD938506-0302 |
| Container Information | |
| Package Level 1 Width: | 87 mm |
| Package Level 1 Depth / Length: | 18 mm |
| Package Level 1 Height: | 69.5 mm |
| Package Level 1 Gross Weight: | 0.05 kg |
| Package Level 1 EAN: | 4013614527814 |
| Package Level 1 Units: | 1 piece |
| Classifications | |
| Object Classification Code: | K |
| ETIM 5: | EC000041 - Auxiliary contact block |
| ETIM 6: | EC000041 - Auxiliary contact block |
| ETIM 7: | EC000041 - Auxiliary contact block |
| ETIM 8: | EC000041 - Auxiliary contact block |
| eClass: | V11.0 : 27371302 |
| UNSPSC: | 39121522 |
| E-Number (Finland): | 3707816 |
| E-Number (Sweden): | 3210569 |
