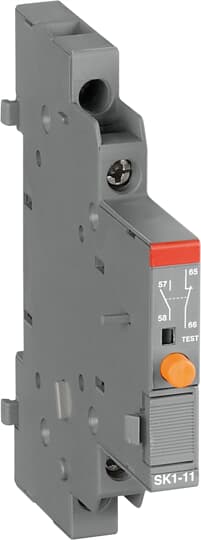

ABB SK1-11 Signaling Contact 1SAM201903R1001
ABB SK1-11 Signaling Contact 1SAM201903R1001
Regular price
R 128.56 ZAR
Regular price
R 240.77 ZAR
Sale price
R 128.56 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Signaling contacts SK1 with screw terminals signal the tripping of the manual motor starter. For SK1 the indication on the device itself is done with a protruding orange button. The contact positions of SK1 need to be manually reset after a tripping event by pushing the orange button. SK1 signaling contacts signal tripping regardless if it was caused by short-circuit, overload or electrical release (AA1 or UA1). They are attached on the right side of the manual motor starter. Signaling contacts SK1 are available as normally open or normally closed contacts.
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 2 piece |
| Customs Tariff Number: | 85365080 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100192C02-- |
| Instructions and Manuals: | 2CDC131011M6802 2CDC131034M6801 2CDC131022M6802 2CDC131120M6801 2CDC131081M6801 2CDC131082M6801 |
| Dimensions | |
| Product Net Width: | 9 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 78.5 mm |
| Product Net Weight: | 0.035 kg |
| Technical | |
| Terminal Type: | Screw Terminals |
| Rated Operational Voltage: | 690 V AC600 V DCMain Circuit 690 V |
| Rated Operational Current AC-15 (Ie): | (24 V) 6 A(240 V) 4 A(690 V) 1 A(380 / 400 V) 3 A |
| Rated Operational Current DC-13 (Ie): | (24 V) 2 A(125 V) 0.55 A(250 V) 0.27 A(440 V) 0.15 A(600 V) 0.15 A |
| Rated Impulse Withstand Voltage (Uimp): | Auxiliary Circuit 6 kV |
| Rated Insulation Voltage (Ui): | 690 V |
| Degree of Protection: | IP20 |
| Electrical Durability: | 100000 cycle |
| Mechanical Durability: | 100000 cycle |
| Connecting Capacity Auxiliary Circuit: | Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²Flexible 1/2x 0.75 ... 1.5 mm²Rigid 1/2x 1 ... 1.5 mm² |
| Tightening Torque: | Auxiliary Circuit 0.8 ... 1.2 N·m |
| Wire Stripping Length: | Auxiliary Circuit 8 mm |
| Recommended Screw Driver: | M3Pozidriv 2 |
| Number of Auxiliary Contacts NO: | 1 |
| Number of Auxiliary Contacts NC: | 1 |
| Standards: | CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-5-1UL 508UL 60947-1UL 60947-4-1 |
| Product Name: | Signaling Contact |
| Suitable For: | MS116MS132MO132MS165MO165 |
| Suitable for Product Class: | Manual Motor Starter |
| Accessory Group: | Electrical |
| Accessory Type: | Signal Contact |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Main Circuit 600 V AC |
| Connecting Capacity Auxiliary Circuit UL/CSA: | Flexible 1/2x 16-14 AWGStranded 1/2x 16-14 AWG |
| Tightening Torque UL/CSA: | Auxiliary Circuit 7 in·lb |
| Contact Rating UL/CSA: | B600Q600 |
| Environmental | |
| Ambient Air Temperature: | Operation -25 ... +60 °CStorage -50 ... +80 °C |
| Resistance to Shock acc. to IEC 60068-2-27: | 11 ms Pulse 25g |
| Resistance to Vibrations acc. to IEC 60068-2-6: | 5g / 3 ... 150 Hz |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| ABS Certificate: | 1SAA963001-0101 |
| BV Certificate: | 1SAA963002-0201 |
| CB Certificate: | 1SAA963004-2002 |
| CQC Certificate: | CQC2017010304032778 |
| cUL Certificate: | cUL_E137861 |
| Declaration of Conformity - CCC: | 2020980304001252 |
| Declaration of Conformity - CE: | 1SAD938508-01971SAD938510-01881SAD938519-01251SAD938523-00601SAD938504-01961SAD938507-01901SAD938504-01981SAD938506-01911SAD938510-0183 |
| Declaration of Conformity - UKCA: | 1SAD938502-10601SAD938503-11251SAD938503-11881SAD938503-1198 |
| DNV GL Certificate: | 1SAA963001-0304 |
| Instructions and Manuals: | 2CDC131011M68022CDC131034M68012CDC131022M68022CDC131120M68012CDC131081M68012CDC131082M6801 |
| LR Certificate: | 1SAA963001-05021SAA918001-0501 |
| RINA Certificate: | 1SAA963002-0802 |
| RoHS Information: | 1SAD938516-0125 |
| UL Certificate: | UL_E137861 |
| Container Information | |
| Package Level 1 Width: | 25 mm |
| Package Level 1 Depth / Length: | 80 mm |
| Package Level 1 Height: | 93 mm |
| Package Level 1 Gross Weight: | 0.08 kg |
| Package Level 1 EAN: | 4013614481499 |
| Package Level 1 Units: | box 2 piece |
| Package Level 2 Width: | 280 mm |
| Package Level 2 Depth / Length: | 395 mm |
| Package Level 2 Height: | 210 mm |
| Package Level 2 Gross Weight: | 6.15 kg |
| Package Level 2 EAN: | 4013614523625 |
| Package Level 2 Units: | carton 160 piece |
| Classifications | |
| Object Classification Code: | Q |
| ETIM 4: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 5: | EC000041 - Auxiliary contact block |
| ETIM 6: | EC000041 - Auxiliary contact block |
| ETIM 7: | EC000041 - Auxiliary contact block |
| ETIM 8: | EC000041 - Auxiliary contact block |
| eClass: | V11.0 : 27371302 |
| UNSPSC: | 39121522 |
| IDEA Granular Category Code (IGCC): | 4742 >> Electrical contacts |
| E-Number (Finland): | 3706020 |
| E-Number (Sweden): | 3112011 |
