ABB
ABB SK1-02K Signaling Contact 1SAM201903R1203
ABB SK1-02K Signaling Contact 1SAM201903R1203
Regular price
R 141.71 ZAR
Regular price
R 265.38 ZAR
Sale price
R 141.71 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

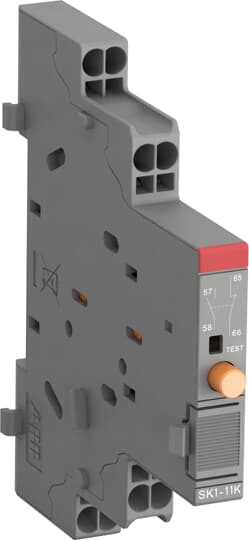

Signaling contacts SK1-K with Push-in spring terminals signal the tripping of the manual motor starter. For SK1 the indication on the device itself is done with a protruding orange button. The contact positions of SK1 need to be manually reset after a tripping event by pushing the orange button. SK1-K signaling contacts signal tripping regardless if it was caused by short-circuit, overload or electrical release (AA1 or UA1). They are attached on the right side of the manual motor starter. Signaling contacts SK1-K are available as normally open or normally closed contacts.
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100212C0201 |
| Instructions and Manuals: | 2CDC131120M6801 2CDC131034M6801 2CDC131022M6802 |
| Marketing Video: | 2CDC131130V0201 |
| Dimensions | |
| Product Net Width: | 9 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 78.5 mm |
| Product Net Weight: | 0.035 kg |
| Technical | |
| Terminal Type: | Push-in Spring Terminals |
| Rated Operational Voltage: | 690 V AC600 V DCMain Circuit 690 V |
| Rated Operational Current AC-15 (Ie): | (24 V) 6 A(240 V) 4 A(690 V) 1 A(380 / 400 V) 3 A |
| Rated Operational Current DC-13 (Ie): | (24 V) 2 A(125 V) 0.55 A(250 V) 0.27 A(440 V) 0.15 A(600 V) 0.15 A |
| Rated Impulse Withstand Voltage (Uimp): | Auxiliary Circuit 6 kV |
| Rated Insulation Voltage (Ui): | 690 V |
| Degree of Protection: | IP20 |
| Electrical Durability: | 100000 cycle |
| Mechanical Durability: | 100000 cycle |
| Connecting Capacity Auxiliary Circuit: | Flexible with Ferrule 1/2x 0.5 ... 2.5 mm²Flexible with Insulated Ferrule 1/2x 0.5 ... 1.5 mm²Flexible 1/2x 0.5 ... 2.5 mm²Rigid 1/2x 0.5 ... 2.5 mm² |
| Wire Stripping Length: | Auxiliary Circuit 10 mm |
| Recommended Screw Driver: | M3 |
| Number of Auxiliary Contacts NO: | 0 |
| Number of Auxiliary Contacts NC: | 2 |
| Standards: | CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-5-1UL 508UL 60947-1UL 60947-4-1 |
| Product Name: | Signaling Contact |
| Suitable For: | MS116MS132MO132MS165MO165 |
| Suitable for Product Class: | Manual Motor Starter |
| Accessory Group: | Electrical |
| Accessory Type: | Signal Contact |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Main Circuit 600 V AC |
| Connecting Capacity Auxiliary Circuit UL/CSA: | Rigid 1/2x 20-14 AWGStranded 1/2x 20-14 AWG |
| Contact Rating UL/CSA: | B600Q600 |
| Environmental | |
| Ambient Air Temperature: | Operation -25 ... +60 °CStorage -50 ... +80 °C |
| Resistance to Shock acc. to IEC 60068-2-27: | 11 ms Pulse 25g |
| Resistance to Vibrations acc. to IEC 60068-2-6: | 5g / 3 ... 150 Hz |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| ABS Certificate: | 1SAA963001-0101 |
| CB Certificate: | 1SAA963004-2002 |
| CQC Certificate: | CQC2017010304032778 |
| Declaration of Conformity - CCC: | 2020980304001252 |
| Declaration of Conformity - CE: | 1SAD938508-01971SAD938510-01881SAD938519-01251SAD938523-00601SAD938504-01961SAD938507-01901SAD938504-01981SAD938506-01911SAD938510-0183 |
| Declaration of Conformity - UKCA: | 1SAD938502-10601SAD938503-11251SAD938503-11881SAD938503-1198 |
| Instructions and Manuals: | 2CDC131120M68012CDC131034M68012CDC131022M6802 |
| RINA Certificate: | 1SAA963002-0802 |
| RoHS Information: | 1SAD938516-0125 |
| Container Information | |
| Package Level 1 Width: | 25 mm |
| Package Level 1 Depth / Length: | 80 mm |
| Package Level 1 Height: | 93 mm |
| Package Level 1 Gross Weight: | 0.08 kg |
| Package Level 1 EAN: | 4013614523564 |
| Package Level 1 Units: | box 2 piece |
| Package Level 2 Width: | 280 mm |
| Package Level 2 Depth / Length: | 395 mm |
| Package Level 2 Height: | 210 mm |
| Package Level 2 Gross Weight: | 5.99 kg |
| Package Level 2 EAN: | 4013614523571 |
| Package Level 2 Units: | carton 160 piece |
| Classifications | |
| Object Classification Code: | Q |
| ETIM 5: | EC000041 - Auxiliary contact block |
| ETIM 6: | EC000041 - Auxiliary contact block |
| ETIM 7: | EC000041 - Auxiliary contact block |
| ETIM 8: | EC000041 - Auxiliary contact block |
| eClass: | V11.0 : 27371302 |
| UNSPSC: | 39121522 |
| IDEA Granular Category Code (IGCC): | 4742 >> Electrical contacts |
| E-Number (Finland): | 3707830 |
| E-Number (Sweden): | 3110470 |
