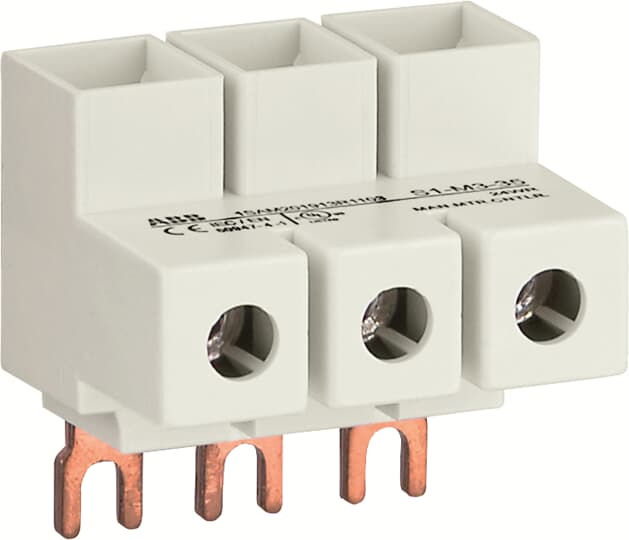

ABB S1-M3-35 Power Infeed Block 1SAM201913R1103
ABB S1-M3-35 Power Infeed Block 1SAM201913R1103
Regular price
R 207.48 ZAR
Regular price
R 388.55 ZAR
Sale price
R 207.48 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
S1-M3-35 3-phase power infeed block Flat, for MS116 / MS132, 35mm2, Type E
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85369010 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100192C02-- |
| Instructions and Manuals: | 2CDC131011M6802 2CDC131034M6801 2CDC131022M6802 |
| Dimensions | |
| Product Net Width: | 45.5 mm |
| Product Net Height: | 45.7 mm |
| Product Net Depth / Length: | 35.3 mm |
| Product Net Weight: | 0.06 kg |
| Technical | |
| Terminal Type: | Screw Terminals |
| Rated Operational Voltage: | 690 V AC250 V DC |
| Rated Operational Current (Ie): | 100 A |
| Number of Poles: | 3 |
| Degree of Protection: | IP20 |
| Connecting Capacity Main Circuit: | Flexible 1x 10 ... 35 mm²Rigid 1x 10 ... 35 mm² |
| Tightening Torque: | Main Circuit 4.5 N·m |
| Wire Stripping Length: | Main Circuit 12 mm |
| Recommended Screw Driver: | Hexgon SW4 |
| Standards: | IEC/EN 60947-1IEC/EN 60947-4-1UL 60947-1UL 60947-4-1 |
| Product Name: | Power Infeed Block |
| Suitable For: | MS116MS132MO132 |
| Suitable for Product Class: | Manual Motor Starter |
| Accessory Group: | Electrical |
| Accessory Type: | 3-Phase Power Infeed Block |
| Remarks: | UL/CSA Type E/F and IEC |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Main Circuit 600 V AC |
| Ampere Rating UL/CSA: | 92 A |
| Connecting Capacity Main Circuit UL/CSA: | Flexible 1x 8-2 AWGStranded 1x 8-2 AWG |
| Tightening Torque UL/CSA: | Main Circuit 40 in·lb |
| Environmental | |
| Ambient Air Temperature: | Operation -25 ... +70 °CStorage -50 ... +80 °C |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| cUL Certificate: | 1SAA963001-1701 |
| Declaration of Conformity - CE: | 1SAD938515-00561SAD938508-01971SAD938519-01251SAD938510-01881SAD938523-00601SAD938510R0183 |
| Declaration of Conformity - UKCA: | 1SAD938502-10561SAD938502-10601SAD938503-11251SAD938503-11881SAD938503-1197 |
| Instructions and Manuals: | 2CDC131011M68022CDC131034M68012CDC131022M6802 |
| RoHS Information: | 1SAD938511-0056 |
| UL Certificate: | 1SAA963001-1602 |
| Container Information | |
| Package Level 1 Width: | 59 mm |
| Package Level 1 Depth / Length: | 245 mm |
| Package Level 1 Height: | 38 mm |
| Package Level 1 Gross Weight: | 0.638 kg |
| Package Level 1 EAN: | 4013614488221 |
| Package Level 1 Units: | box 10 piece |
| Classifications | |
| Object Classification Code: | X |
| ETIM 4: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 5: | EC000275 - Rail terminal bar |
| ETIM 6: | EC000275 - Rail terminal bar |
| ETIM 7: | EC000275 - Rail terminal bar |
| ETIM 8: | EC000275 - Rail terminal bar |
| eClass: | V11.0 : 27400603 |
| UNSPSC: | 39121410 |
| IDEA Granular Category Code (IGCC): | 4561 >> Power Blocks & Distribution Blocks |
| E-Number (Finland): | 3705960 |
| E-Number (Sweden): | 3112083 |
