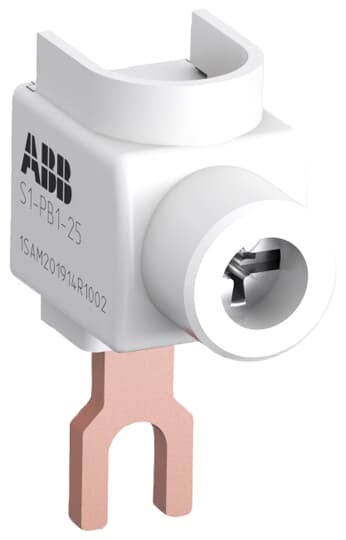

ABB S1-PB1-25 Power Infeed Block 1SAM201914R1002
ABB S1-PB1-25 Power Infeed Block 1SAM201914R1002
Regular price
R 59.69 ZAR
Regular price
R 111.77 ZAR
Sale price
R 59.69 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
S1-PB1-25 1-phase power infeed block for MS116 / MS132 / MS132-T, 25mm2, IEC
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85369010 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100192C02-- |
| Instructions and Manuals: | 2CDC131057M6801 |
| Dimensions | |
| Product Net Width: | 14 mm |
| Product Net Height: | 34 mm |
| Product Net Depth / Length: | 24 mm |
| Product Net Weight: | 0.013 kg |
| Technical | |
| Terminal Type: | Screw Terminals |
| Rated Operational Voltage: | 690 V AC250 V DC |
| Rated Operational Current (Ie): | 32 A |
| Number of Poles: | 1 |
| Degree of Protection: | IP20 |
| Connecting Capacity Main Circuit: | Flexible 1x 4 ... 25 mm²Rigid 1x 4 ... 25 mm² |
| Tightening Torque: | Main Circuit 2 N·m |
| Wire Stripping Length: | Main Circuit 11 mm |
| Recommended Screw Driver: | M8Pozidriv 2 |
| Standards: | IEC/EN 60947-1 |
| Product Name: | Power Infeed Block |
| Suitable For: | MS116MS132MO132MS132-T |
| Suitable for Product Class: | Manual Motor Starter |
| Accessory Group: | Electrical |
| Accessory Type: | 1-Phase Power Infeed Block |
| Remarks: | IEC only |
| Technical UL/CSA | |
| Tightening Torque UL/CSA: | Main Circuit 18 in·lb |
| Environmental | |
| Ambient Air Temperature: | Operation -25 ... +70 °CStorage -50 ... +80 °C |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| Declaration of Conformity - CE: | 1SAD938515-00561SAD938508-01971SAD938519-01251SAD938510-01881SAD938523-00601SAD938510-0183 |
| Declaration of Conformity - UKCA: | 1SAD938502-10561SAD938502-10601SAD938503-11251SAD938503-11881SAD938503-1197 |
| Instructions and Manuals: | 2CDC131057M6801 |
| RoHS Information: | 1SAD938511-0056 |
| Container Information | |
| Package Level 1 Width: | 140 mm |
| Package Level 1 Depth / Length: | 15 mm |
| Package Level 1 Height: | 110 mm |
| Package Level 1 Gross Weight: | 0.015 kg |
| Package Level 1 EAN: | 4013614485251 |
| Package Level 1 Units: | box 1 piece |
| Package Level 2 Width: | 145 mm |
| Package Level 2 Depth / Length: | 215 mm |
| Package Level 2 Height: | 120 mm |
| Package Level 2 Gross Weight: | 0.23 kg |
| Package Level 2 EAN: | 4013614485626 |
| Package Level 2 Units: | carton 10 piece |
| Classifications | |
| Object Classification Code: | X |
| ETIM 4: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 5: | EC000275 - Rail terminal bar |
| ETIM 6: | EC000275 - Rail terminal bar |
| ETIM 7: | EC000275 - Rail terminal bar |
| ETIM 8: | EC000275 - Rail terminal bar |
| eClass: | V11.0 : 27400603 |
| UNSPSC: | 39121410 |
| IDEA Granular Category Code (IGCC): | 4561 >> Power Blocks & Distribution Blocks |
