ABB MS132-25T Circuit Breaker for primary transformer protection,Trip Class 10 1SAM340000R1014

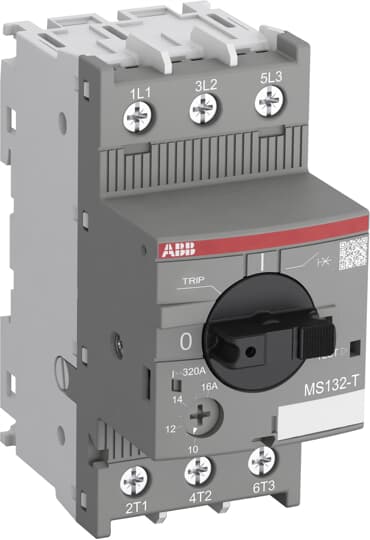

The circuit breaker for transformer protection MS132-25T is a compact 45 mm width device designed to protect control transformers on the primary side. This device has a rated operational current of Ie = 25 A. It allows fuse-less protection against overload and short-circuit. The short-circuit current setting is fixed to 20 times the rated operational current to handle the high inrush current generated by transformers. The device allows manually connect and disconnect the transformer from the mains thanks of its built-in disconnection function. The circuit breaker for transformer protection offers a rated service short-circuit breaking capacity of Ics = 50 kA at 400 VAC and a trip class 10. Further features are temperature compensation, trip-free mechanism, rotary handle with a clear switch position indication and short circuit trip indicator. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, power in-feed blocks and terminal spacers are available as accessory.

Specifications

Ordering
Popular Downloads
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85362010
Dimensions
Data Sheet, Technical Information:	2CDC131058D0201
Instructions and Manuals:	2CDC131057M6801
Instructions and Manuals (Part 2):	2CDC131060M0202
Time-Current Characteristic Curve:	1SAM300535F0014
I²t Characteristic:	1SAM300517F0001
Dimension Diagram:	1SAM300402F0002
Technical
Product Net Width:	45 mm
Product Net Height:	97.8 mm
Product Net Depth / Length:	86.05 mm
Product Net Weight:	0.31 kg
Technical UL/CSA
Rated Service Short-Circuit Breaking Capacity (Ics):	(230 V AC) 50 kA(400 V AC) 50 kA(440 V AC) 30 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):	(400 V AC) 50 kA
Rated Instantaneous Short-Circuit Current Setting (Ii):	500 A
Setting Range:	20 ... 25 A
Rated Operational Voltage:	Main Circuit 690 V AC
Rated Operational Current (Ie):	25 A
Rated Frequency (f):	Main Circuit 50 HzMain Circuit 60 Hz
Rated Impulse Withstand Voltage (Uimp):	Main Circuit 6 kV
Rated Insulation Voltage (Ui):	690 V
Power Loss:	at Rated Operating Conditions per Pole 1.2 ... 1.9 W
Number of Poles:	3
Conventional Free-air Thermal Current (Ith):	Main Circuit 25 A
Degree of Protection:	Housing IP20Main Circuit Terminals IP10
Pollution Degree:	3
Electrical Durability:	50000 cycle
Mechanical Durability:	100000 cycle
Terminal Type:	Screw Terminals
Connecting Capacity Main Circuit:	Flexible with Ferrule 1/2x 0.75 ... 6 mm²Flexible with Insulated Ferrule 1/2x 0.75 ... 6 mm²Flexible 1/2x 1 ... 2.5 mm²Flexible 1/2x 2.5 ... 6 mm²Rigid 1/2x 1 ... 2.5 mm²Rigid 1/2x 2.5 ... 6 mm²
Tightening Torque:	Main Circuit 2 N·m
Wire Stripping Length:	Main Circuit 10 mm
Recommended Screw Driver:	M4Pozidriv 2
Mounting Position:	1 ... 6
Mounting on DIN Rail:	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Minimum Mounting Distance:	Electrical Conductive Board, Vertical 75 mmOther Device Same Type, Horizontal 9 mmOther Device Same Type, Vertical 150 mm
Actuator Type:	Rotary Handle
Contact Position Indication:	ON / OFF / TRIP
Standards:	IEC/EN 60947-1IEC/EN 60947-2IEC/EN 60947-4-1
Environmental
Short-Circuit Current Rating (SCCR):	Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 30 kAAny UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 18 kA
Maximum Operating Voltage UL/CSA:	Main Circuit 600 V AC
Ampere Rating UL/CSA:	25 A
Horsepower Rating UL/CSA:	(120 V AC) Single Phase 2 Hp(220 ... 240 V AC) Single Phase 3 Hp
Full Load Amps Motor Use:	(120 V AC) Single Phase 24 A(220 ... 240 V AC) Single Phase 17 A
Locked Rotor Amps:	(120 V AC) Single Phase 144 A(220 ... 240 V AC) Single Phase 144 A
Connecting Capacity Main Circuit UL/CSA:	Flexible 1/2x 16-8 AWGStranded 1/2x 16-8 AWG
Tightening Torque UL/CSA:	Main Circuit 16 in·lb
Certificates and Declarations (Document Number)
Ambient Air Temperature:
Ambient Air Temperature Compensation:
Maximum Operating Altitude Permissible:
Resistance to Shock acc. to IEC 60068-2-27:
Resistance to Vibrations acc. to IEC 60068-2-6:
RoHS Status:
Container Information
CQC Certificate:	CQC2010010307387700
cUL Certificate:	cUL_E137861
cULus Certificate:	cUL_E137861
cUR Certificate:	cUL_E137861
Declaration of Conformity - CCC:	2020980307003526
Declaration of Conformity - CE:	1SAD938510-0188
Declaration of Conformity - UKCA:	1SAD938503-1188
Environmental Information:	1SAC200049H0009
I²t Characteristic:	1SAM300517F0001
Instructions and Manuals:	2CDC131057M6801
Instructions and Manuals (Part 2):	2CDC131060M0202
KC Certificate:	1SAA963002-1502
RMRS Certificate:	1SAA918000-0704
RoHS Information:	1SAD938503-0188
Time-Current Characteristic Curve:	1SAM300535F0014
Classifications
Package Level 1 Units:	1 piece
Package Level 1 Width:	92 mm
Package Level 1 Depth / Length:	102 mm
Package Level 1 Height:	50 mm
Package Level 1 Gross Weight:	0.325 kg
Package Level 1 EAN:	4013614485046
Package Level 2 Units:	40 piece
Package Level 2 Width:	280 mm
Package Level 2 Depth / Length:	395 mm
Package Level 2 Height:	210 mm
Package Level 2 Gross Weight:	13.386 kg
Package Level 2 EAN:	4013614487248
