ABB MS132-0.63K Manual Motor Starter 1SAM350010R1004
ABB MS132-0.63K Manual Motor Starter 1SAM350010R1004
Regular price
R 544.31 ZAR
Regular price
R 1,019.34 ZAR
Sale price
R 544.31 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

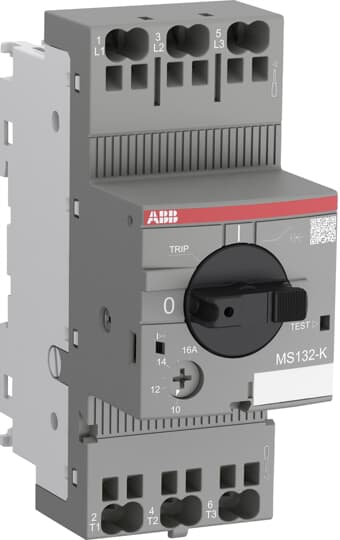

The MS132-0.63K manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 0.63 A with Push-in spring terminals. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The MS132-K manual motor starter offers a rated service short-circuit breaking capacity Ics = 100 kA at 400 VAC and trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The MS132-K manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips and terminal spacers are available as accessory.
Specifications
| Ordering | |
|---|---|
| Popular Downloads | |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362010 |
| Dimensions | |
| Data Sheet, Technical Information: | 1SBC100212C0203 |
| Instructions and Manuals: | 2CDC131120M6801 |
| Instructions and Manuals (Part 2): | 2CDC131060M0202 |
| Time-Current Characteristic Curve: | 1SAM300505F0104 |
| I²t Characteristic: | 1SAM300507F0001 1SAM300507F0003 |
| Cut-off Current Characteristic: | 1SAM300508F0001 1SAM300508F0003 |
| Installation Video: | 9AKK108466A6074 9AKK108466A6068 |
| Marketing Video: | 9AKK107991A4712 2CDC131153V0201 |
| Technical | |
| Product Net Width: | 45 mm |
| Product Net Height: | 112 mm |
| Product Net Depth / Length: | 87 mm |
| Product Net Weight: | 0.256 kg |
| Technical UL/CSA | |
| Rated Service Short-Circuit Breaking Capacity (Ics): | (230 V AC) 100 kA(250 V DC) 3 Poles in Series 10 kA(400 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 100 kA(690 V AC) 100 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): | (230 V AC) 100 kA(400 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 100 kA(690 V AC) 100 kA |
| Rated Instantaneous Short-Circuit Current Setting (Ii): | 7.9 A |
| Setting Range: | 0.40 ... 0.63 A |
| Rated Operational Power AC-3 (Pe): | (400 V) Three Phase 0.18 kW |
| Rated Operational Power AC-3e (Pe): | (400 V) Three Phase 0.18 kW |
| Rated Operational Voltage: | Main Circuit 690 V ACMain Circuit 250 V DC |
| Rated Operational Current (Ie): | 0.63 A |
| Rated Operational Current AC-3 (Ie): | 0.63 A |
| Rated Operational Current AC-3e (Ie): | 0.63 A |
| Rated Operational Current DC-5 (Ie): | 0.63 A |
| Rated Frequency (f): | Main Circuit 50 HzMain Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp): | Main Circuit 6 kV |
| Rated Insulation Voltage (Ui): | 690 V |
| Power Loss: | at Rated Operating Conditions per Pole 0.7 ... 1.7 W |
| Number of Poles: | 3 |
| Conventional Free-air Thermal Current (Ith): | Main Circuit 0.63 A |
| Degree of Protection: | Housing IP20Main Circuit Terminals IP20 |
| Pollution Degree: | 3 |
| Electrical Durability: | 50000 cycle |
| Mechanical Durability: | 100000 cycle |
| Terminal Type: | Push-in Spring Terminals |
| Connecting Capacity Main Circuit: | Flexible with Ferrule 1/2x 0.5 ... 4 mm²Flexible with Insulated Ferrule 1x 0.5 ... 4 mm²Flexible with Insulated Ferrule 2x 0.5 ... 2.5 mm²Flexible 1/2x 0.75 ... 4 mm²Solid 1/2x 1 ... 2.5 mm²Stranded 1/2x 1 ... 6 mm² |
| Wire Stripping Length: | Main Circuit 12 mm |
| Recommended Screw Driver: | Pozidriv 2 |
| Mounting Position: | 1 ... 6 |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Minimum Mounting Distance: | Electrical Conductive Board, Horizontal - Up to 400 V 0 mmElectrical Conductive Board, Horizontal - Up to 690 V 1.5 mmElectrical Conductive Board, Vertical 75 mmOther Device Same Type, Horizontal 0 mmOther Device Same Type, Vertical 150 mm |
| Actuator Type: | Rotary Handle |
| Contact Position Indication: | ON / OFF / TRIP |
| Standards: | IEC/EN 60947-1IEC/EN 60947-2IEC/EN 60947-4-1UL 60947-1UL 60947-4-1 |
| Remarks: | UL508 Self-Protected Combination Motor Controller (Type E) in combination with terminal spacer TS1-M3-K |
| Environmental | |
| Short-Circuit Current Rating (SCCR): | Manual Self-Protected Combination Controllers (Type E), (480Y / 277 V AC) 65 kAManual Self-Protected Combination Controllers (Type E), (600Y / 347 V AC) 47 kAAny UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 65 kAAny UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 47 kAAny UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 65 kAAny UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 47 kAAny UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kAAny UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 47 kA |
| Maximum Operating Voltage UL/CSA: | Main Circuit 600 V AC |
| Ampere Rating UL/CSA: | 0.63 A |
| Full Load Amps Motor Use: | (200 V AC) Three Phase 0.63 A(208 V AC) Three Phase 0.63 A(220 ... 240 V AC) Three Phase 0.63 A(440 ... 480 V AC) Three Phase 0.63 A(550 ... 600 V AC) Three Phase 0.63 A |
| Locked Rotor Amps: | (200 V AC) Three Phase 3.78 A(208 V AC) Three Phase 3.78 A(220 ... 240 V AC) Three Phase 3.78 A(440 ... 480 V AC) Three Phase 3.78 A(550 ... 600 V AC) Three Phase 3.78 A |
| General Use Rating UL/CSA: | (600 V AC) 0.63 A |
| Connecting Capacity Main Circuit UL/CSA: | Stranded 1/2x 18-10 AWGStranded 1x 8 AWG |
| Certificates and Declarations (Document Number) | |
| Ambient Air Temperature: | |
| Ambient Air Temperature Compensation: | |
| Maximum Operating Altitude Permissible: | |
| Resistance to Shock acc. to IEC 60068-2-27: | |
| Resistance to Vibrations acc. to IEC 60068-2-6: | |
| RoHS Status: | |
| Container Information | |
| ABS Certificate: | 1SAA963001-0101 |
| ATEX Certificate: | 1SAA963000-3902 |
| CB Certificate: | 1SAA963002-2002 |
| CQC Certificate: | CQC2017010307034621 |
| cUL Certificate: | cUL_E137861 |
| Cut-off Current Characteristic: | 1SAM300508F0001 1SAM300508F0003 |
| Declaration of Conformity - CCC: | 2020980307004600 |
| Declaration of Conformity - CE: | 1SAD938519-0125 |
| Declaration of Conformity - UKCA: | 1SAD938503-1125 |
| EAC Certificate: | 1SAA963004-2701 |
| Environmental Information: | 1SAC200049H0009 |
| I²t Characteristic: | 1SAM300507F0001 1SAM300507F0003 |
| IECEx Certificate: | 1SAA963000-4001 |
| Instructions and Manuals: | 2CDC131120M6801 |
| Instructions and Manuals (Part 2): | 2CDC131060M0202 |
| KC Certificate: | 1SAA963002-1502 |
| RINA Certificate: | 1SAA963002-0802 |
| RoHS Information: | 1SAD938516-0125 |
| Time-Current Characteristic Curve: | 1SAM300505F0104 |
| Classifications | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 50 mm |
| Package Level 1 Depth / Length: | 117 mm |
| Package Level 1 Height: | 82 mm |
| Package Level 1 Gross Weight: | 0.282 kg |
| Package Level 1 EAN: | 4013614400346 |
| Package Level 2 Units: | carton 28 piece |
| Package Level 2 Width: | 280 mm |
| Package Level 2 Depth / Length: | 395 mm |
| Package Level 2 Height: | 210 mm |
| Package Level 2 Gross Weight: | 14.026 kg |
| Package Level 2 EAN: | 4013614522666 |
