ABB

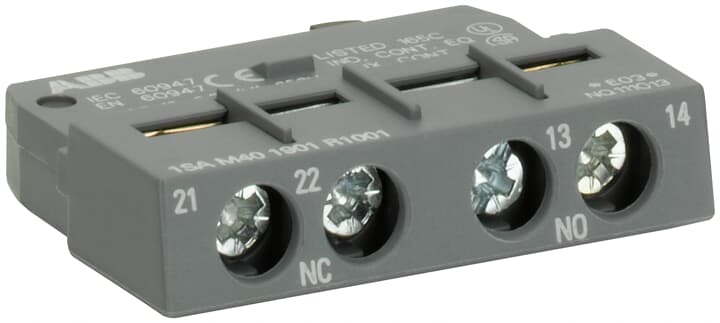

ABB HK4-11 Auxiliary Contact 1SAM401901R1001
ABB HK4-11 Auxiliary Contact 1SAM401901R1001
Regular price
R 132.68 ZAR
Regular price
R 241.24 ZAR
Sale price
R 132.68 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
HK4-11 Auxiliary contact 1NO/1NC
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85369095 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100173C0201 |
| Dimensions | |
| Product Net Width: | 16 mm |
| Product Net Height: | 55 mm |
| Product Net Depth / Length: | 35 mm |
| Product Net Weight: | 0.017 kg |
| Technical | |
| Rated Operational Voltage: | 230 V AC220 V DCMain Circuit 230 V |
| Rated Operational Current AC-15 (Ie): | (24 V) 2 A(230 V) 0.5 A |
| Rated Operational Current DC-13 (Ie): | (24 V) 1 A(48 V) 0.3 A |
| Rated Insulation Voltage (Ui): | 300 V |
| Degree of Protection: | IP20 |
| Connecting Capacity Auxiliary Circuit: | Flexible with Ferrule 1/2x 0.5 ... 1.5 mm²Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible 1/2x 0.5 ... 1.5 mm²Flexible 1/2x 0.75 ... 1 mm²Rigid 1/2x 0.5 ... 1.5 mm²Rigid 1/2x 0.75 ... 2.5 mm² |
| Tightening Torque: | Auxiliary Circuit 0.8 ... 1.2 N·m |
| Wire Stripping Length: | Auxiliary Circuit 10 mm |
| Recommended Screw Driver: | Pozidriv 2 |
| Number of Auxiliary Contacts NO: | 1 |
| Number of Auxiliary Contacts NC: | 1 |
| Number of Auxiliary Contacts CO (SPDT): | 0 |
| Conventional Free-air Thermal Current (Ith): | 2.5 A |
| Standards: | CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-2IEC/EN 60947-4-1IEC/EN 60947-5-1UL 508 |
| Product Name: | Auxiliary Contact |
| Suitable For: | MS450MS451MO450MS495MS496MS497MO495MO496 |
| Suitable for Product Class: | Manual Motor Starter |
| Accessory Group: | Electrical |
| Accessory Type: | Auxiliary Contact |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Auxiliary Circuit 250 V AC/DC |
| Connecting Capacity Auxiliary Circuit UL/CSA: | Flexible 1/2x 18-14 AWGStranded 1/2x 18-14 AWG |
| Tightening Torque UL/CSA: | Auxiliary Circuit 7 ... 10.3 in·lb |
| Contact Rating UL/CSA: | C300R300 |
| Environmental | |
| Ambient Air Temperature: | Operation -25 ... +70 °CStorage -50 ... +80 °C |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| BV Certificate: | 1SAA937000-0201 |
| CQC Certificate: | CQC2014010304717876 |
| Declaration of Conformity - CCC: | 2020980305001305 |
| Declaration of Conformity - CE: | 1SAD938506-00501SAD938505-0051 |
| Declaration of Conformity - UKCA: | 1SAD938500-10501SAD938500-1051 |
| DNV Certificate: | 1SAA937000-0301 |
| GL Certificate: | 1SAA937000-0404 |
| RoHS Information: | 1SAD938506-00501SAD938505-0051 |
| UL Certificate: | UL_E149922 |
| Container Information | |
| Package Level 1 Width: | 46 mm |
| Package Level 1 Depth / Length: | 50 mm |
| Package Level 1 Height: | 106 mm |
| Package Level 1 Gross Weight: | 0.18 kg |
| Package Level 1 Units: | 10 piece |
| Classifications | |
| ETIM 4: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 5: | EC000041 - Auxiliary contact block |
| ETIM 6: | EC000041 - Auxiliary contact block |
| ETIM 7: | EC000041 - Auxiliary contact block |
| ETIM 8: | EC000041 - Auxiliary contact block |
| eClass: | V11.0 : 27371302 |
| UNSPSC: | 39121522 |
| IDEA Granular Category Code (IGCC): | 4742 >> Electrical contacts |
| E-Number (Finland): | 3707902 |
