ABB

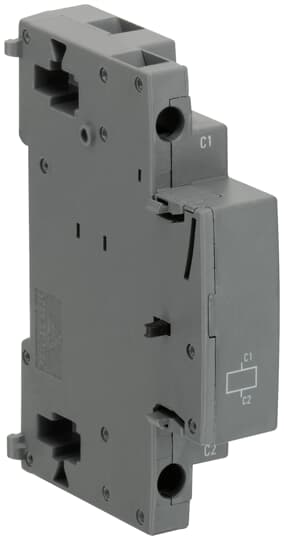

ABB AA4-24 Shunt Trip 1SAM401907R1001
ABB AA4-24 Shunt Trip 1SAM401907R1001
Regular price
R 402.15 ZAR
Regular price
R 731.19 ZAR
Sale price
R 402.15 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
AA4-24 Shunt release
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85369095 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100173C0201 |
| Dimensions | |
| Product Net Width: | 37 mm |
| Product Net Height: | 100 mm |
| Product Net Depth / Length: | 83 mm |
| Product Net Weight: | 0.135 kg |
| Technical | |
| Connecting Capacity Auxiliary Circuit: | Flexible with Ferrule 1/2x 0.5 ... 1.5 mm²Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible 1/2x 0.5 ... 1.5 mm²Flexible 1/2x 0.75 ... 1 mm²Rigid 1/2x 0.5 ... 1.5 mm²Rigid 1/2x 0.75 ... 2.5 mm² |
| Tightening Torque: | Auxiliary Circuit 0.8 ... 1.2 N·m |
| Wire Stripping Length: | Auxiliary Circuit 10 mm |
| Recommended Screw Driver: | Pozidriv 2 |
| Standards: | CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-4-1UL 508 |
| Product Name: | Shunt Trip |
| Suitable For: | MS450MS451MO450MS495MS496MS497MO495MO496 |
| Suitable for Product Class: | Manual Motor Starter |
| Accessory Group: | Electrical |
| Accessory Type: | Shunt Trip |
| Technical UL/CSA | |
| Connecting Capacity Auxiliary Circuit UL/CSA: | Flexible 1/2x 18-14 AWGStranded 1/2x 18-14 AWG |
| Tightening Torque UL/CSA: | Auxiliary Circuit 7 ... 10.3 in·lb |
| Environmental | |
| Ambient Air Temperature: | Operation -20 ... +60 °CStorage -50 ... +80 °C |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| BV Certificate: | 1SAA937000-0201 |
| Declaration of Conformity - CE: | 1SAD938506-00501SAD938505-0051 |
| Declaration of Conformity - UKCA: | 1SAD938500-10501SAD938500-1051 |
| DNV Certificate: | 1SAA937000-0301 |
| GL Certificate: | 1SAA937000-0404 |
| RoHS Information: | 1SAD938506-00501SAD938505-0051 |
| UL Certificate: | UL_E149922 |
| Container Information | |
| Package Level 1 Width: | 37 mm |
| Package Level 1 Depth / Length: | 84 mm |
| Package Level 1 Height: | 100 mm |
| Package Level 1 Gross Weight: | 0.137 kg |
| Package Level 1 EAN: | 4013614265983 |
| Package Level 1 Units: | 1 piece |
| Classifications | |
| ETIM 4: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 5: | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 6: | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 7: | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 8: | EC001023 - Shunt release (for power circuit breaker) |
| eClass: | V11.0 : 27370418 |
| UNSPSC: | 39121521 |
| IDEA Granular Category Code (IGCC): | 4879 >> Shunt release (for power circuit breaker) |
| E-Number (Sweden): | 3112351 |
