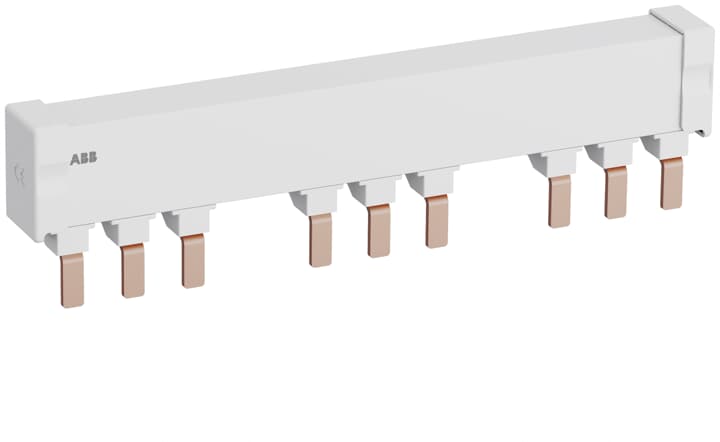

ABB PS2-3-2-125 Busbar 1SAM401920R1023
ABB PS2-3-2-125 Busbar 1SAM401920R1023
Regular price
R 562.65 ZAR
Regular price
R 1,053.69 ZAR
Sale price
R 562.65 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
PS2-3-2-125 3-phase busbar for 3 MS165 with 2 HK/SK, Ie=125A
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85366990 |
| Popular Downloads | |
| Instructions and Manuals: | 2CDC131082M6801 |
| Dimensions | |
| Product Net Width: | 204 mm |
| Product Net Height: | 53 mm |
| Product Net Depth / Length: | 22 mm |
| Product Net Weight: | 0.197 kg |
| Technical | |
| Rated Operational Voltage: | 690 V AC |
| Rated Operational Current (Ie): | 125 A |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Short-time Withstand Current Low Voltage (Icw): | 100 kA |
| Number of Mountable Devices: | 3 |
| Number of Lateral Auxiliary Contacts: | 2 |
| Number of Phases: | 3 |
| Number of Poles: | 9 |
| Degree of Protection: | IP20 |
| Pollution Degree: | 3 |
| Connection Type: | Pin |
| Standards: | IEC/EN 60947-4-1 |
| Product Name: | Busbar |
| Suitable For: | MS165MO165 |
| Accessory Group: | Electrical |
| Accessory Type: | 3-Phase Busbar |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Main Circuit 600 V AC |
| Ampere Rating UL/CSA: | 125 A |
| Environmental | |
| Ambient Air Temperature: | Operation -25 ... +40 °CStorage -50 ... +80 °C |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| Declaration of Conformity - CE: | 1SAD938504-0193 |
| Declaration of Conformity - UKCA: | 1SAD938500-1193 |
| Instructions and Manuals: | 2CDC131082M6801 |
| RoHS Information: | 1SAD938502-0193 |
| Container Information | |
| Package Level 1 Width: | 80 mm |
| Package Level 1 Depth / Length: | 231 mm |
| Package Level 1 Height: | 76 mm |
| Package Level 1 Gross Weight: | 2.026 kg |
| Package Level 1 EAN: | 4013614502286 |
| Package Level 1 Units: | 10 piece |
| Classifications | |
| Object Classification Code: | W |
| ETIM 5: | EC000215 - Phase busbar |
| ETIM 6: | EC000215 - Phase busbar |
| ETIM 7: | EC000215 - Phase busbar |
| ETIM 8: | EC000215 - Phase busbar |
| eClass: | V11.0 : 27371306 |
| UNSPSC: | 39121117 |
| IDEA Granular Category Code (IGCC): | 4378 >> Phase busbar |
| E-Number (Sweden): | 3110215 |
