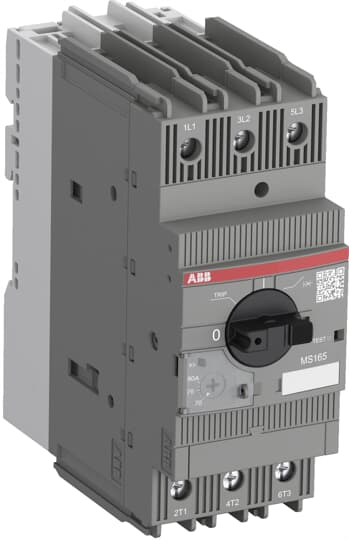

ABB MS165-65 Manual Motor Starter 1SAM451000R1017
ABB MS165-65 Manual Motor Starter 1SAM451000R1017
Regular price
R 2,371.17 ZAR
Regular price
R 4,440.55 ZAR
Sale price
R 2,371.17 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
MS165 is a compact and powerful range for motor protection up to 45 kW (400 V) / 80 A in width of 55 mm. They offer a reliable protection for motors in the event of overload or phase failure. The devices have trip class 10.This type has also a clear and reliable indication of fault in a separate window in the event of short-circuit tripping. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter (also known as motor protection circuit breaker or manual motor protector) is suitable for three- and single phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, power in-feed blocks are available as accessory. Theseare suitable throughout the MS116/MS132/MS165 range.
Specifications
| Ordering | |
|---|---|
| Popular Downloads | |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362090 |
| Dimensions | |
| Data Sheet, Technical Information: | 2CDC131083D0201 |
| Instructions and Manuals: | 2CDC131081M6801 |
| Instructions and Manuals (Part 2): | 2CDC131060M0202 |
| Time-Current Characteristic Curve: | 1SAM400505F0007 |
| I²t Characteristic: | 1SAM400506F0001 |
| Cut-off Current Characteristic: | 1SAM400507F0001 |
| Dimension Diagram: | 1SAM400401F0001 |
| Technical | |
| Product Net Width: | 55 mm |
| Product Net Height: | 142.65 mm |
| Product Net Depth / Length: | 122.1 mm |
| Product Net Weight: | 0.98 kg |
| Technical UL/CSA | |
| Rated Service Short-Circuit Breaking Capacity (Ics): | (230 V AC) 30 kA(250 V DC) 3 Poles in Series 100 kA(400 V AC) 30 kA(440 V AC) 30 kA(500 V AC) 20 kA(690 V AC) 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): | (230 V AC) 50 kA(250 V DC) 100 kA(400 V AC) 50 kA(440 V AC) 45 kA(500 V AC) 20 kA(690 V AC) 8 kA |
| Rated Instantaneous Short-Circuit Current Setting (Ii): | 975 A |
| Setting Range: | 52 ... 65 A |
| Rated Operational Power AC-3 (Pe): | (400 V) Three Phase 30 kW |
| Rated Operational Power AC-3e (Pe): | (400 V) Three Phase 30 kW |
| Rated Operational Voltage: | Main Circuit 690 V ACMain Circuit 250 V DC |
| Rated Operational Current (Ie): | 65 A |
| Rated Operational Current AC-3 (Ie): | 65 A |
| Rated Operational Current AC-3e (Ie): | 65 A |
| Rated Operational Current DC-5 (Ie): | 65 A |
| Rated Frequency (f): | Main Circuit 50 HzMain Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp): | Main Circuit 8 kV |
| Rated Insulation Voltage (Ui): | 1000 V |
| Power Loss: | at Rated Operating Conditions per Pole 5.14 ... 8.02 W |
| Number of Poles: | 3 |
| Conventional Free-air Thermal Current (Ith): | Main Circuit 65 A |
| Degree of Protection: | Housing IP20Main Circuit Terminals IP10 |
| Pollution Degree: | 3 |
| Electrical Durability: | 25000 cycle |
| Mechanical Durability: | 50000 cycle |
| Terminal Type: | Screw Terminals |
| Connecting Capacity Main Circuit: | Flexible with Ferrule 1/2x 1 ... 35 mm²Flexible with Insulated Ferrule 1/2x 1 ... 35 mm²Flexible 1/2x 1 ... 35 mm²Rigid 1/2x 1 ... 4 mm²Solid 1/2x 1 ... 4 mm²Stranded 1/2x 1 ... 50 mm² |
| Tightening Torque: | Main Circuit 4 N·m |
| Wire Stripping Length: | Main Circuit 16 mm |
| Recommended Screw Driver: | Pozidriv 2 |
| Mounting Position: | 1 ... 6 |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Minimum Mounting Distance: | Electrical Conductive Board, Horizontal - Up to 1000 V 1.5 mmElectrical Conductive Board, Horizontal - Up to 400 V 0 mmElectrical Conductive Board, Horizontal - Up to 690 V 1.5 mmElectrical Conductive Board, Vertical 75 mmOther Device Same Type, Horizontal 0 mmOther Device Same Type, Vertical 150 mm |
| Actuator Type: | Rotary Handle |
| Contact Position Indication: | ON / OFF / TRIP |
| Standards: | CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-2IEC/EN 60947-4-1UL 60947-4-1 |
| Environmental | |
| Short-Circuit Current Rating (SCCR): | Manual Self-Protected Combination Controllers (Type E), (480Y / 277 V AC) 65 kAManual Self-Protected Combination Controllers (Type E), (600Y / 347 V AC) 30 kAAny UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 65 kAAny UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 30 kAAny UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 65 kAAny UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 30 kAAny UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kAAny UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 30 kA |
| Maximum Operating Voltage UL/CSA: | Main Circuit 600 V AC |
| Ampere Rating UL/CSA: | 65 A |
| Horsepower Rating UL/CSA: | (200 V AC) Three Phase 20 Hp(208 V AC) Three Phase 20 Hp(220 ... 240 V AC) Three Phase 20 Hp(440 ... 480 V AC) Three Phase 50 Hp(550 ... 600 V AC) Three Phase 60 Hp |
| Full Load Amps Motor Use: | (200 V AC) Three Phase 62.1 A(208 V AC) Three Phase 59.4 A(220 ... 240 V AC) Three Phase 54 A(440 ... 480 V AC) Three Phase 65 A(550 ... 600 V AC) Three Phase 62 A |
| Locked Rotor Amps: | (200 V AC) Three Phase 334 A(208 V AC) Three Phase 321 A(220 ... 240 V AC) Three Phase 290 A(440 ... 480 V AC) Three Phase 363 A(550 ... 600 V AC) Three Phase 348 A |
| General Use Rating UL/CSA: | (600 V AC) 65 A |
| Connecting Capacity Main Circuit UL/CSA: | Flexible 1/2x 16-0 AWGStranded 1/2x 16-0 AWG |
| Tightening Torque UL/CSA: | Main Circuit 35 in·lb |
| Certificates and Declarations (Document Number) | |
| Ambient Air Temperature: | |
| Ambient Air Temperature Compensation: | |
| Maximum Operating Altitude Permissible: | |
| Resistance to Shock acc. to IEC 60068-2-27: | |
| Resistance to Vibrations acc. to IEC 60068-2-6: | |
| RoHS Status: | |
| Container Information | |
| ABS Certificate: | 1SAA963002-0101 |
| ATEX Certificate: | 1SAA918001-3901 |
| BV Certificate: | 1SAA963002-0201 |
| CB Certificate: | 1SAA918002-2002 |
| CQC Certificate: | CQC2015010307760141 |
| cUL Certificate: | cUL_E345003\n cUL_E137861 |
| Cut-off Current Characteristic: | 1SAM400507F0001 |
| Declaration of Conformity - CCC: | 2020980307003042 |
| Declaration of Conformity - CE: | 1SAD938507-0190 |
| Declaration of Conformity - UKCA: | 1SAD938502-1190 |
| DNV GL Certificate: | 1SAA963002-0301 |
| EAC Certificate: | 1SAA963000-2701 |
| Environmental Information: | 1SAC200051H0009 |
| I²t Characteristic: | 1SAM400506F0001 |
| IECEx Certificate: | 1SAA918000-4001 |
| Instructions and Manuals: | 2CDC131081M6801 |
| Instructions and Manuals (Part 2): | 2CDC131060M0202 |
| KC Certificate: | 1SAA963001-1501 |
| LR Certificate: | 1SAA918001-0501 |
| RMRS Certificate: | 1SAA918000-0704 |
| RoHS Information: | 1SAD938505-0190 |
| Time-Current Characteristic Curve: | 1SAM400505F0007 |
| UL Certificate: | UL_E137861\n UL_345003 |
| Classifications | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 78 mm |
| Package Level 1 Depth / Length: | 155 mm |
| Package Level 1 Height: | 155 mm |
| Package Level 1 Gross Weight: | 1.1 kg |
| Package Level 1 EAN: | 4013614486111 |
| Package Level 2 Units: | carton 12 piece |
| Package Level 2 Width: | 330 mm |
| Package Level 2 Depth / Length: | 400 mm |
| Package Level 2 Height: | 320 mm |
| Package Level 2 Gross Weight: | 13 kg |
| Package Level 2 EAN: | 4013614503979 |
