ABB MS495-100 Manual Motor Starter 1SAM550000R1010
ABB MS495-100 Manual Motor Starter 1SAM550000R1010
Regular price
R 3,519.76 ZAR
Regular price
R 6,399.56 ZAR
Sale price
R 3,519.76 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

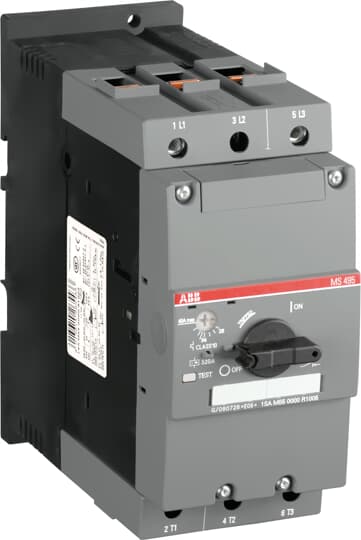

The MS495-100 manual motor starter is a 70 mm width devices with a rated operational current of Ie = 100.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 25 kA at 400 VAC and the trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signalling contacts, undervoltage releases and shunt trips are available as accessory.
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362090 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100173C0201 |
| Data Sheet, Technical Information (Part 3): | 9AKK105713A1102 |
| Instructions and Manuals: | 1SAM507001R1001 |
| Instructions and Manuals (Part 2): | 2CDC131017M5701 |
| Time-Current Characteristic Curve: | 1SAM500501F0010 |
| Dimensions | |
| Product Net Width: | 70 mm |
| Product Net Height: | 165 mm |
| Product Net Depth / Length: | 174 mm |
| Product Net Weight: | 2.295 kg |
| Technical | |
| Rated Service Short-Circuit Breaking Capacity (Ics): | (230 V AC) 100 kA(400 V AC) 25 kA(440 V AC) 20 kA(500 V AC) 4 kA(690 V AC) 3 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): | (230 V AC) 100 kA(400 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 8 kA(690 V AC) 5 kA |
| Rated Instantaneous Short-Circuit Current Setting (Ii): | 1235 A |
| Setting Range: | 80 ... 100 A |
| Rated Operational Power AC-3 (Pe): | (400 V) Three Phase 55 kW |
| Rated Operational Voltage: | Main Circuit 690 V ACMain Circuit 450 V DC |
| Rated Operational Current (Ie): | 100 A |
| Rated Operational Current AC-3 (Ie): | 100 A |
| Rated Frequency (f): | Main Circuit 50 HzMain Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp): | Main Circuit 6 kV |
| Rated Insulation Voltage (Ui): | 690 V |
| Power Loss: | at Rated Operating Conditions per Pole 3.5 ... 5.4 W |
| Number of Poles: | 3 |
| Conventional Free-air Thermal Current (Ith): | Main Circuit 100 A |
| Degree of Protection: | Housing IP20Main Circuit Terminals IP00 |
| Pollution Degree: | 3 |
| Electrical Durability: | 25000 cycle |
| Mechanical Durability: | 50000 cycle |
| Terminal Type: | Screw Terminals |
| Connecting Capacity Main Circuit: | Flexible with Ferrule 1x 2.5 ... 50 mm²Flexible with Ferrule 2x 2.5 ... 35 mm²Solid 1/2x 2.5 ... 16 mm²Stranded 1x 10 ... 70 mm²Stranded 2x 10 ... 50 mm² |
| Tightening Torque: | Main Circuit 4 ... 6 N·m |
| Wire Stripping Length: | Main Circuit 17 mm |
| Recommended Screw Driver: | Hexagon 4 |
| Mounting Position: | 1 ... 6 |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Actuator Type: | Rotary Handle |
| Contact Position Indication: | ON / OFF / TRIP |
| Standards: | CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-2IEC/EN 60947-4-1UL 508 |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Main Circuit 600 V AC |
| Ampere Rating UL/CSA: | 99 A |
| Horsepower Rating UL/CSA: | (200 V AC) Three Phase 30 Hp(208 V AC) Three Phase 30 Hp(220 ... 240 V AC) Three Phase 40 Hp(440 ... 480 V AC) Three Phase 75 Hp(550 ... 600 V AC) Three Phase 100 Hp |
| General Use Rating UL/CSA: | (600 V AC) 99 A |
| Connecting Capacity Main Circuit UL/CSA: | Flexible 1x 10-2/0 AWGFlexible 1/2x 10-1/0 AWGStranded 1x 10-2/0 AWGStranded 1/2x 10-1/0 AWG |
| Tightening Torque UL/CSA: | Main Circuit 35 ... 53 in·lb |
| Environmental | |
| Ambient Air Temperature: | Operation -20 ... +70 °COperation Compensated -20 ... +60 °CStorage -50 ... +80 °C |
| Ambient Air Temperature Compensation: | Yes |
| Maximum Operating Altitude Permissible: | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27: | 11 ms Pulse 25g |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| ATEX Certificate: | 1SAA937000-3901 |
| BV Certificate: | 1SAA937000-0202 |
| CQC Certificate: | CQC2013010307604042 |
| cUL Certificate: | cUL_E195536 |
| Declaration of Conformity - CCC: | 2022960307001586 |
| Declaration of Conformity - CE: | 1SAD938506-0050 |
| Declaration of Conformity - UKCA: | 1SAD938500-1050 |
| DNV Certificate: | 1SAA937000-0302 |
| EAC Certificate: | 1SAA937001-2703 |
| GL Certificate: | 1SAA937000-0404 |
| Instructions and Manuals: | 1SAM507001R1001 |
| Instructions and Manuals (Part 2): | 2CDC131017M5701 |
| LR Certificate: | 1SAA937000-0504 |
| RMRS Certificate: | 1SAA918000-0704 |
| RoHS Information: | 1SAD938506-0050 |
| Time-Current Characteristic Curve: | 1SAM500501F0010 |
| UL Certificate: | UL_E167205UL_E195536 |
| Container Information | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 76.5 mm |
| Package Level 1 Depth / Length: | 190 mm |
| Package Level 1 Height: | 171 mm |
| Package Level 1 Gross Weight: | 2.3 kg |
| Package Level 1 EAN: | 4013614265488 |
| Classifications | |
| Object Classification Code: | F |
| ETIM 4: | EC000074 - Motor protective circuit-breaker |
| ETIM 5: | EC000074 - Motor protective circuit-breaker |
| ETIM 6: | EC000074 - Motor protection circuit-breaker |
| ETIM 7: | EC000074 - Motor protection circuit-breaker |
| ETIM 8: | EC000074 - Motor protection circuit-breaker |
| eClass: | V11.0 : 27370401 |
| UNSPSC: | 39121521 |
| IDEA Granular Category Code (IGCC): | 4845 >> 3 Pole Motor Circuit Protector Circuit Breakers |
| E-Number (Finland): | 3707078 |
| E-Number (Sweden): | 3112270 |
