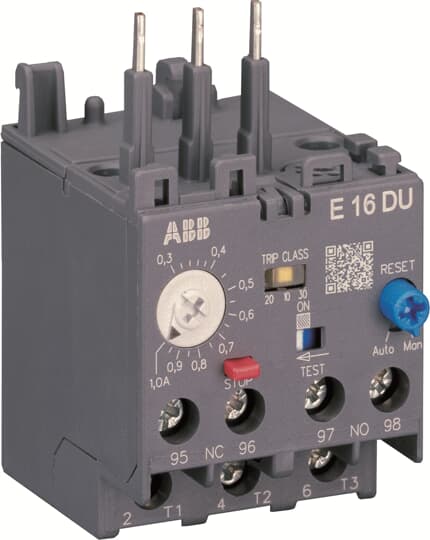

ABB E16DU-18.9 Electronic Overload Relay 1SAX111001R1105
ABB E16DU-18.9 Electronic Overload Relay 1SAX111001R1105
Regular price
R 1,173.14 ZAR
Regular price
R 2,196.97 ZAR
Sale price
R 1,173.14 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The E16DU-18.9 is an self-supplied electronic overload relay, which means no extra external supply is needed. It offers reliable and fast protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the contactors. Single mounting kits are available as accessory.
Specifications
| Ordering | |
|---|---|
| Popular Downloads | |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Dimensions | |
| Data Sheet, Technical Information: | 1SBC100173C0201 |
| Data Sheet, Technical Information (Part 2): | 1SAX100502F0002 1SAX100508F0001 |
| Instructions and Manuals: | 2CDC107019M5502 |
| Dimension Diagram: | 1SAX100402F0001 1SAX100401F0001 |
| Technical | |
| Product Net Width: | 44.4 mm |
| Product Net Height: | 74.6 mm |
| Product Net Depth / Length: | 57 mm |
| Product Net Weight: | 0.15 kg |
| Technical UL/CSA | |
| Setting Range: | 5.7 ... 18.9 A |
| Rated Operational Voltage: | Auxiliary Circuit 600 V AC/DCMain Circuit 690 V AC |
| Rated Operational Current (Ie): | 18.9 A |
| Rated Frequency (f): | Auxiliary Circuit 50 HzAuxiliary Circuit 60 HzAuxiliary Circuit DCMain Circuit 50 HzMain Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp): | Auxiliary Circuit 6 kVMain Circuit 6 kV |
| Rated Insulation Voltage (Ui): | 690 V |
| Number of Poles: | 3 |
| Number of Auxiliary Contacts NC: | 1 |
| Number of Auxiliary Contacts NO: | 1 |
| Number of Protected Poles: | 3 |
| Conventional Free-air Thermal Current (Ith): | Auxiliary Circuit NC 6 AAuxiliary Circuit NO 6 A |
| Rated Operational Current AC-15 (Ie): | (240 V) NC 3 A(240 V) NO 3 A(400 V) NC 1.1 A(400 V) NO 1.1 A(500 V) NC 0.72 A(500 V) NO 0.72 A |
| Rated Operational Current DC-13 (Ie): | (125 V) NC 0.55 A(125 V) NO 0.5 A(24 V) NC 1.5 A(24 V) NO 1.5 A(250 V) NC 0.27 A(250 V) NO 0.27 A(60 V) NC 0.55 A(60 V) NO 0.55 A |
| Degree of Protection: | IP20 |
| Pollution Degree: | 3 |
| Connecting Capacity Auxiliary Circuit: | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²Flexible 1/2x 0.75 ... 2.5 mm²Rigid 1/2x 1 ... 4 mm² |
| Connecting Capacity Main Circuit: | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²Flexible 1/2x 0.75 ... 2.5 mm²Rigid 1/2x 1 ... 4 mm² |
| Tightening Torque: | Auxiliary Circuit 0.8 ... 1.2 N·mMain Circuit 0.8 ... 1.5 N·m |
| Wire Stripping Length: | Auxiliary Circuit 9 mmMain Circuit 9 mm |
| Recommended Screw Driver: | Auxiliary Circuit Pozidriv 2Main Circuit Pozidriv 2 |
| Mounting Position: | 1 ... 6 |
| Suitable For: | B6B7BC6BC7A09A12A16AL09AL12AL16VB6VB7VBC6VBC7 |
| Standards: | IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1 |
| Environmental | |
| Maximum Operating Voltage UL/CSA: | Main Circuit 600 V AC |
| Ampere Rating UL/CSA: | 18.9 A |
| Contact Rating UL/CSA: | B600Q300 |
| Connecting Capacity Main Circuit UL/CSA: | Flexible 1/2x 16-10 AWGStranded 1/2x 16-10 AWG |
| Connecting Capacity Auxiliary Circuit UL/CSA: | Flexible 1/2x 16-10 AWGStranded 1/2x 16-10 AWG |
| Tightening Torque UL/CSA: | Auxiliary Circuit 7 in·lbMain Circuit 7 in·lb |
| Certificates and Declarations (Document Number) | |
| Ambient Air Temperature: | |
| Ambient Air Temperature Compensation: | |
| Maximum Operating Altitude Permissible: | |
| Resistance to Shock acc. to IEC 60068-2-27: | |
| Resistance to Vibrations acc. to IEC 60068-2-6: | |
| RoHS Status: | |
| Container Information | |
| CB Certificate: | 1SAA964002-2002 |
| CQC Certificate: | CQC2008010309289447 |
| Declaration of Conformity - CCC: | 2020980309000285 |
| Declaration of Conformity - CE: | 1SAD938514-0053 |
| Declaration of Conformity - UKCA: | 1SAD938502-1053 |
| EAC Certificate: | 1SAA941003-2701 |
| Instructions and Manuals: | 2CDC107019M5502 |
| RMRS Certificate: | 1SAA964000-0703 |
| RoHS Information: | 1SAD938514-0053 |
| UL Certificate: | E48139-19990512 |
| Classifications | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 65 mm |
| Package Level 1 Height: | 46 mm |
| Package Level 1 Depth / Length: | 76.5 mm |
| Package Level 1 Gross Weight: | 0.17 kg |
| Package Level 1 EAN: | 4013614395260 |
| Package Level 2 Units: | 100 piece |
| Package Level 2 Width: | 340 mm |
| Package Level 2 Height: | 314 mm |
| Package Level 2 Depth / Length: | 245 mm |
| Package Level 2 Gross Weight: | 17.563 kg |
| Package Level 2 EAN: | 4013614483257 |
