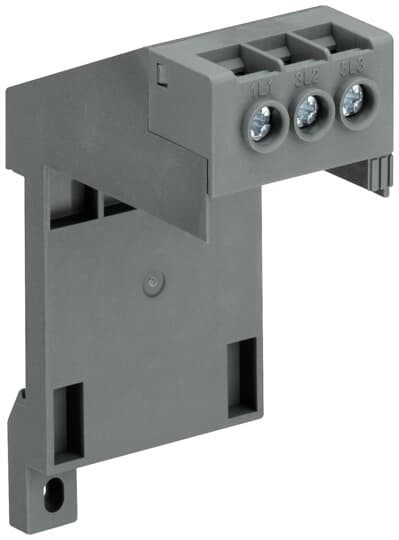

ABB DB16 Single Mounting Kit 1SAZ701901R0001
ABB DB16 Single Mounting Kit 1SAZ701901R0001
Regular price
R 170.29 ZAR
Regular price
R 318.90 ZAR
Sale price
R 170.29 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
DB16 Single Mounting Kit for T16
Specifications
| Ordering | |
|---|---|
| Popular Downloads | |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Dimensions | |
| Data Sheet, Technical Information: | 1SBC100173C0201 |
| Instructions and Manuals: | 2CDC106024M6802 |
| Dimension Diagram: | 1SAZ700411F0001 |
| Technical | |
| Product Net Width: | 92 mm |
| Product Net Height: | 50 mm |
| Product Net Depth / Length: | 73 mm |
| Product Net Weight: | 0.032 kg |
| Technical UL/CSA | |
| Rated Operational Voltage: | Main Circuit 690 V AC |
| Rated Operational Current (Ie): | 16 A |
| Rated Operational Current AC-3 (Ie): | 16 A |
| Rated Frequency (f): | Main Circuit 50 HzMain Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp): | Auxiliary Circuit 6 kVMain Circuit 6 kV |
| Rated Insulation Voltage (Ui): | 690 V |
| Number of Poles: | 3 |
| Degree of Protection: | IP20 |
| Pollution Degree: | 3 |
| Connecting Capacity Main Circuit: | Flexible with Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible 1x 0.75 ... 2.5 mm²Rigid 1x 0.75 ... 4 mm² |
| Tightening Torque: | Main Circuit 1.1 ... 1.5 N·m |
| Wire Stripping Length: | Main Circuit 12 mm |
| Recommended Screw Driver: | Pozidriv 2 |
| Mounting Position: | 1 ... 5 |
| Suitable For: | T16 |
| Standards: | CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-4-1UL 508 |
| Environmental | |
| Maximum Operating Voltage UL/CSA: | Main Circuit 600 V AC |
| Ampere Rating UL/CSA: | 16 A |
| Connecting Capacity Main Circuit UL/CSA: | Flexible 1x 18-10 AWGStranded 1x 18-10 AWG |
| Tightening Torque UL/CSA: | Main Circuit 13 in·lb |
| Certificates and Declarations (Document Number) | |
| Resistance to Shock acc. to IEC 60068-2-27: | |
| Resistance to Vibrations acc. to IEC 60068-2-6: | |
| RoHS Status: | |
| Container Information | |
| ABS Certificate: | No Certificate Needed |
| Declaration of Conformity - CE: | 1SAD938511-0182 |
| Declaration of Conformity - UKCA: | 1SAD938501-1182 |
| DNV Certificate: | No Certificate Needed |
| GL Certificate: | No Certificate Needed |
| Instructions and Manuals: | 2CDC106024M6802 |
| LR Certificate: | No Certificate Needed |
| RINA Certificate: | No Certificate Needed |
| RMRS Certificate: | No Certificate Needed |
| RoHS Information: | 1SAD938511-0182 |
| UL Certificate: | E48139-20090126 |
| Classifications | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 50 mm |
| Package Level 1 Depth / Length: | 73 mm |
| Package Level 1 Gross Weight: | 0.053 kg |
| Package Level 1 EAN: | 4013614407819 |
| Package Level 2 Units: | 130 piece |
| Package Level 2 Width: | 215 mm |
| Package Level 2 Height: | 140 mm |
| Package Level 2 Depth / Length: | 200 mm |
| Package Level 2 Gross Weight: | 7 kg |
| Package Level 2 EAN: | 4013614480027 |
